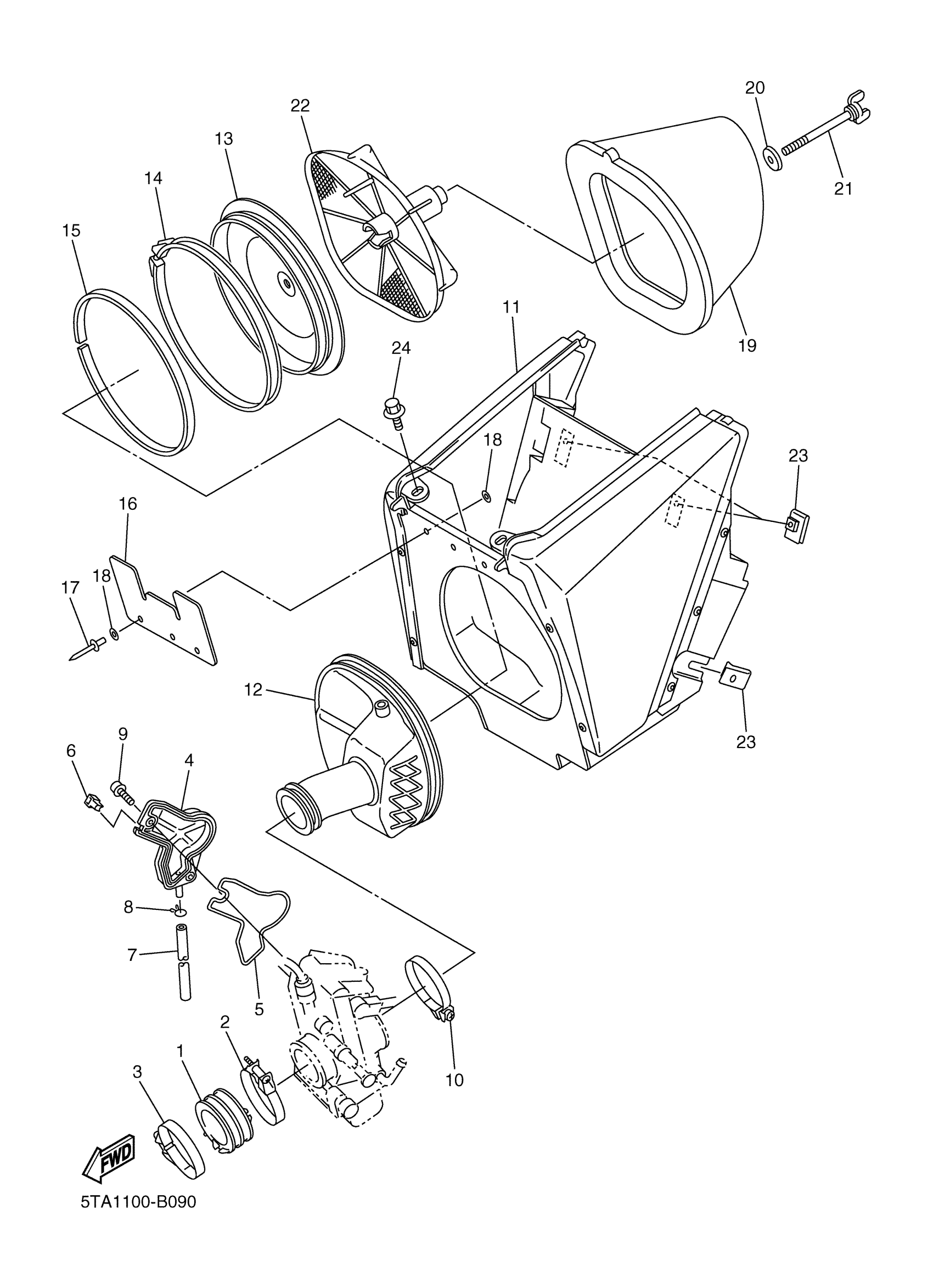

Find the part on the Intake diagram for your 2003 Yamaha YZ450F (YZ450FR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Yamaha YZ450F (YZ450FR) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 3

5TA-13597-00-00

1
Out of stock

2

HOSE CLAMP ASSY

90450-57013-00

1
Out of stock

3

HOSE CLAMP ASSY

90450-59005-00

1
Out of stock

4

COVER 1

5TA-14293-00-00

1
Out of stock

5

GASKET

5TA-14227-00-00

1
Out of stock

6

SEAL

5TA-14239-00-00

1
Out of stock

7

HOSE

5TA-14987-00-00

1
Out of stock

8

CLIP

3TJ-14137-40-00

1
Out of stock

9

BOLT

5TA-14428-00-00

1
Out of stock

10

HOSE CLAMP ASSY

90450-61002-00

1
Out of stock

11

AIR CLEANER CASE ASSY

5TA-14401-01-00

1
Out of stock

12

JOINT, AIR CLEANER 1

5TA-14453-01-00

1
Out of stock

13

HOLDER, GUIDE

5NY-14459-00-00

1
Out of stock

14

BAND

5NY-14455-20-00

1
Out of stock

15

SPACER

5NY-14442-00-00

1
Out of stock

16

COVER 1

5NY-14417-01-00

—
Out of stock

17

RIVET (813)

90267-32070-00

—
Out of stock

18

WASHER, PLATE 8077743700

90201-03313-00

—
Out of stock

19

ELEMENT, AIR CLEANER

4XM-14451-01-00

—
Out of stock

20

WASHER (4H7)

90209-06096-00

—
Out of stock

21

BOLT, WING

90122-06005-00

—
Out of stock

22

GUIDE

5BE-14458-10-00

—
Out of stock

23

NUT, SPRING (26H)

90183-06023-00

—
Out of stock

24

BOLT(4EW)

90109-067F4-00

—
Out of stock
