2003 Yamaha YZ450F (YZ450FR) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2003 Yamaha YZ450F (YZ450FR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

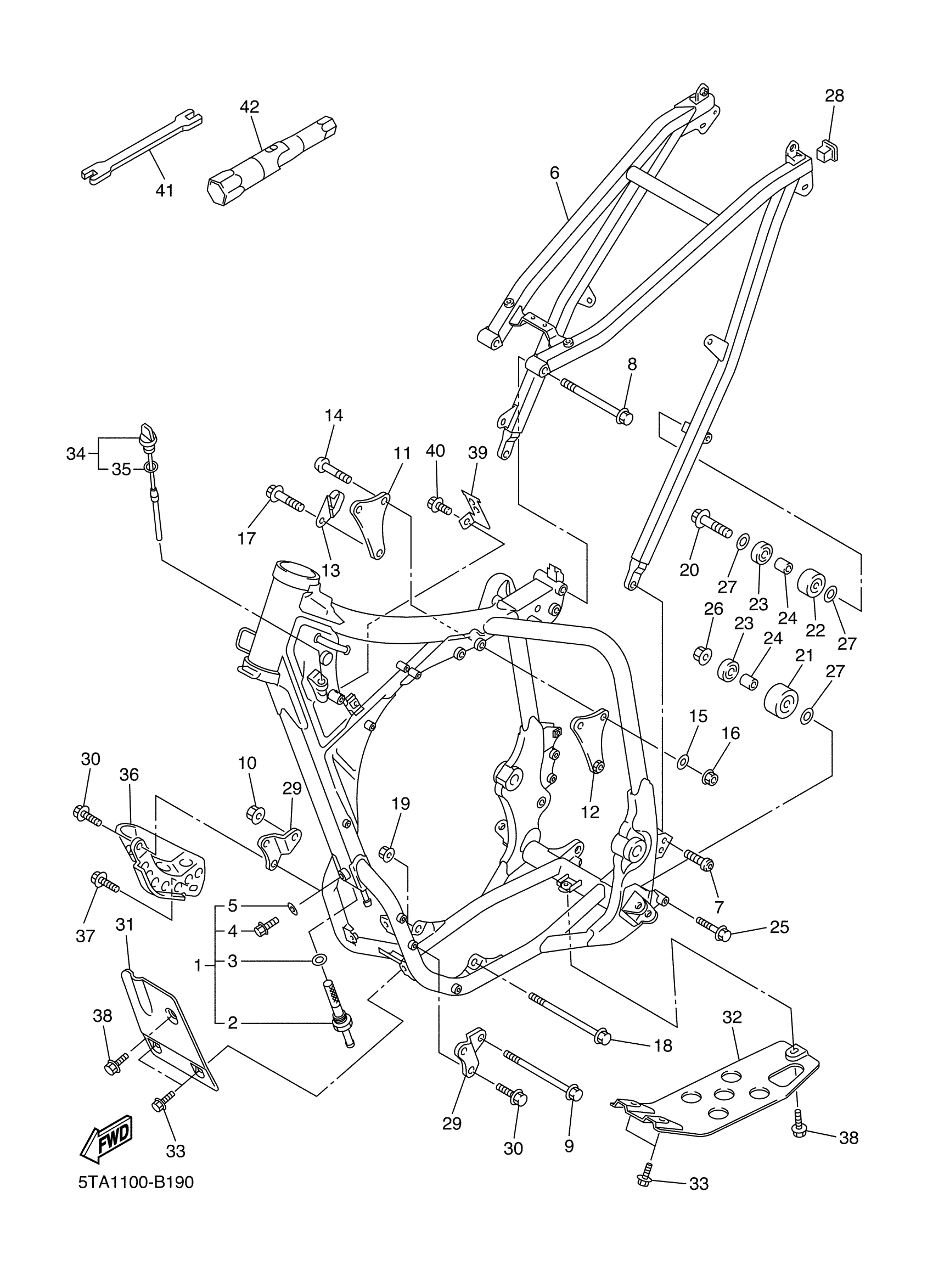

2003 Yamaha YZ450F (YZ450FR) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FRAME COMP.

5TA-21101-00-00

1
Out of stock

2

NET, FILTER

5TA-21756-00-00

—
Out of stock

3

WASHER, PLATE(3GB)

90201-145M4-00

1

$7.12

In stock

4

BOLT, FLANGE

95817-08012-00

1

$3.98

In stock

5

GASKET

90430-08119-00

1

$4.70

In stock

6

REAR FRAME COMP.

99999-03454-00

1
Out of stock

7

BOLT, HEXAGON SOCKET HEAD(53Y)

90110-08096-00

1
Out of stock

8

BOLT, WASHER BASED (401)

90105-08120-00

1

$6.26

In stock

9

BOLT, FLANGE

95817-10160-00

1
Out of stock

10

NUT, SELF-LOCKING

90185-10002-00

1

$6.11

In stock

11

BRACKET, REAR UPPER 1

5TA-21425-00-00

—
Out of stock

12

BRACKET, REAR UPPER 1

5TA-21425-10-00

1

$46.91

In stock

13

HOLDER, CABLE

5TA-21161-00-00

—
Out of stock

14

BOLT,BUTTON

92017-10060-00

1
Out of stock

15

WASHER PLATE (3L6)

90201-08759-00

1

$2.52

In stock

16

NUT(4KG)

90179-10658-00

—

$7.49

In stock

17

BOLT, FLANGE(87Y)

95817-10055-00

—

$4.54

In stock

18

BOLT, WASHER BASED(3RB)

90105-10733-00

—
Out of stock

19

NUT, SELF-LOCKING

90185-10002-00

1

$6.11

In stock

20

BOLT, FLANGE(4MY)

95027-08040-00

—
Out of stock

21

TENSIONER

3JD-22178-20-00

—

$37.74

In stock

22

TENSIONER

4EW-22178-01-00

—
Out of stock

23

BEARING (3X3)

93300-60804-00

—

$11.18

In stock

24

COLLAR(1NL)

90387-086N4-00

—

$8.31

In stock

25

BOLT, FLANGE

95027-08065-00

—
Out of stock

26

NUT, FLANGE(JN5)

95707-08500-00

—

$1.49

In stock

27

WASHER, PLATE(3XP)

90201-086P8-00

—

$4.35

In stock

28

PLUG(8Y1)

90338-18176-00

—
Out of stock

29

BRACKET, FRONT LOWER 1

5XD-21417-50-00

—
Out of stock

30

BOLT, FLANGE(JN5)

95817-08016-00

—

$4.12

In stock

31

PROTECTOR, ENGINE

5TA-21471-00-00

1
Out of stock

32

GUARD, ENGINE 2

5TA-2147E-00-00

1
Out of stock

33

BOLT, FLANGE(4MY)

95027-06012-00

—

$3.28

In stock

34

PLUG, OIL LEVEL

5TA-15362-01-00

—
Out of stock

35

. O-RING

93210-08001-00

1
Out of stock

36

GUARD, ENGINE 1

5TA-2147A-00-00

1
Out of stock

37

BOLT, FLANGE

95817-08012-00

1

$3.98

In stock

38

BOLT, WITH WASHER

90119-06001-00

—
Out of stock

39

BRACKET, C.D.I. UNIT

5TA-21274-01-00

1
Out of stock

40

BOLT, WITH WASHER

97527-06512-00

—

$2.46

In stock

41

WRENCH, HEXAGON

5ET-28166-10-00

—

$28.32

In stock

42

BOX, SPARK PLUG

5TA-2814F-00-00

—
Out of stock
