2003 Yamaha YZ450F (YZ450FR) Decompression KIT Diagram

← All diagrams

Find the part on the Decompression KIT diagram for your 2003 Yamaha YZ450F (YZ450FR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

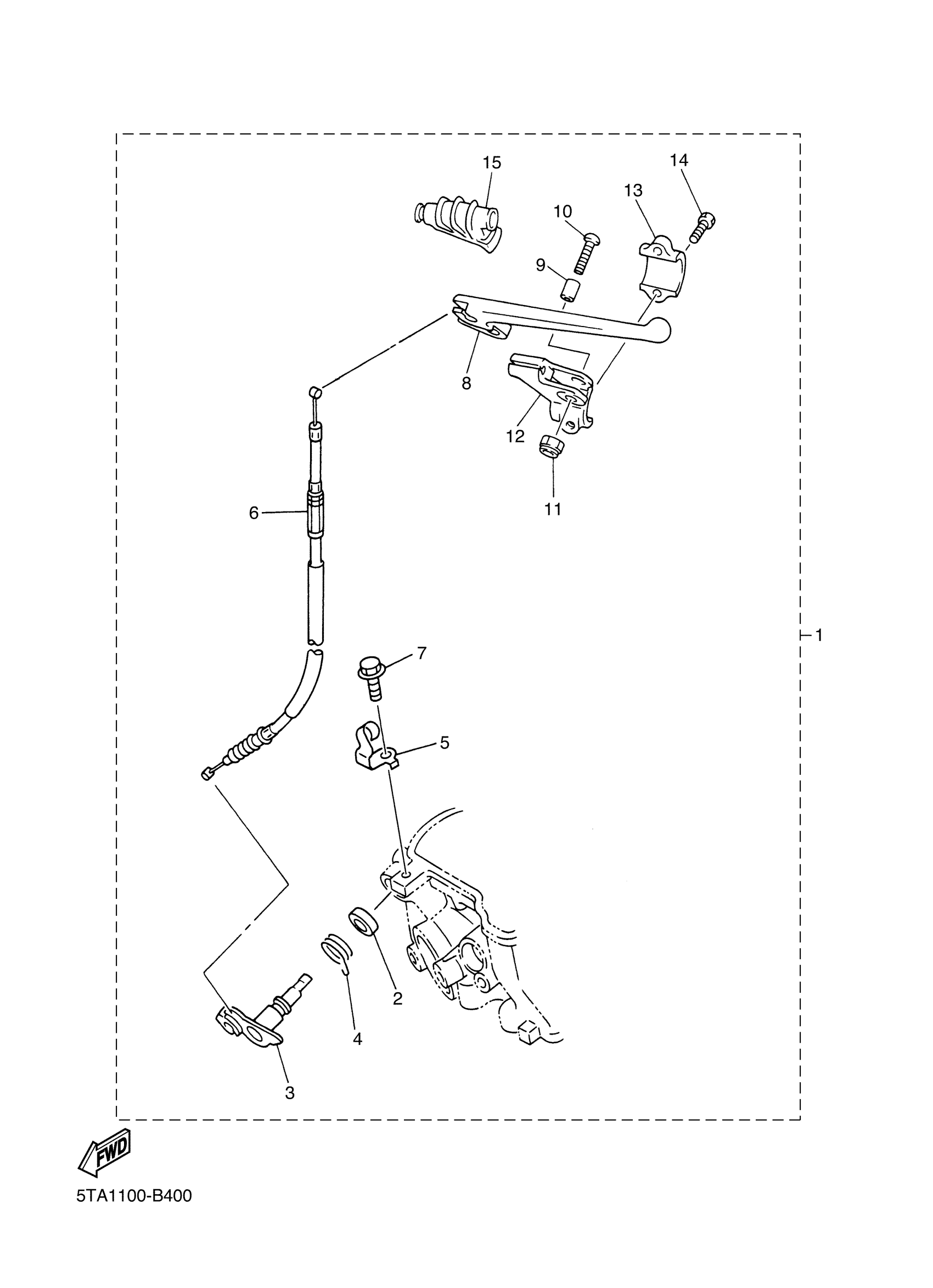

2003 Yamaha YZ450F (YZ450FR) Decompression KIT Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DECOMPRESSION KIT

5TA-W1228-00-00

1
Out of stock

2

OIL SEAL (4G0)

93102-12224-00

1
Out of stock

3

DECOMPRESSION ASSY

5BE-12280-10-00

—
Out of stock

4

SPRING, TORSION

90508-162B2-00

1
Out of stock

5

. BRACKET, DECOMPRESSION

5NL-12283-00-00

1
Out of stock

6

CABLE, DECOMPRESSION

5BE-12292-10-00

—
Out of stock

7

BOLT, FLANGE

95817-06014-00

—

$2.15

In stock

8

LEVER, DECOMPRESSION

583-83981-00-00

1
Out of stock

9

COLLAR, LEVER 1

5BE-83913-00-00

1
Out of stock

10

SCREW, PAN HEAD

98517-05020-00

1

$1.35

In stock

11

NUT, U

95617-05100-00

1

$6.68

In stock

12

HOLDER, LEVER UPPER 1

5BE-82912-00-00

1
Out of stock

13

H0LDER, LEVER L0WER 1

38V-82913-00-00

1
Out of stock

14

BOLT(4TW)

97017-05016-00

1
Out of stock

15

COVER, DECOMPRESSION WIRE

583-26352-00-00

1
Out of stock
