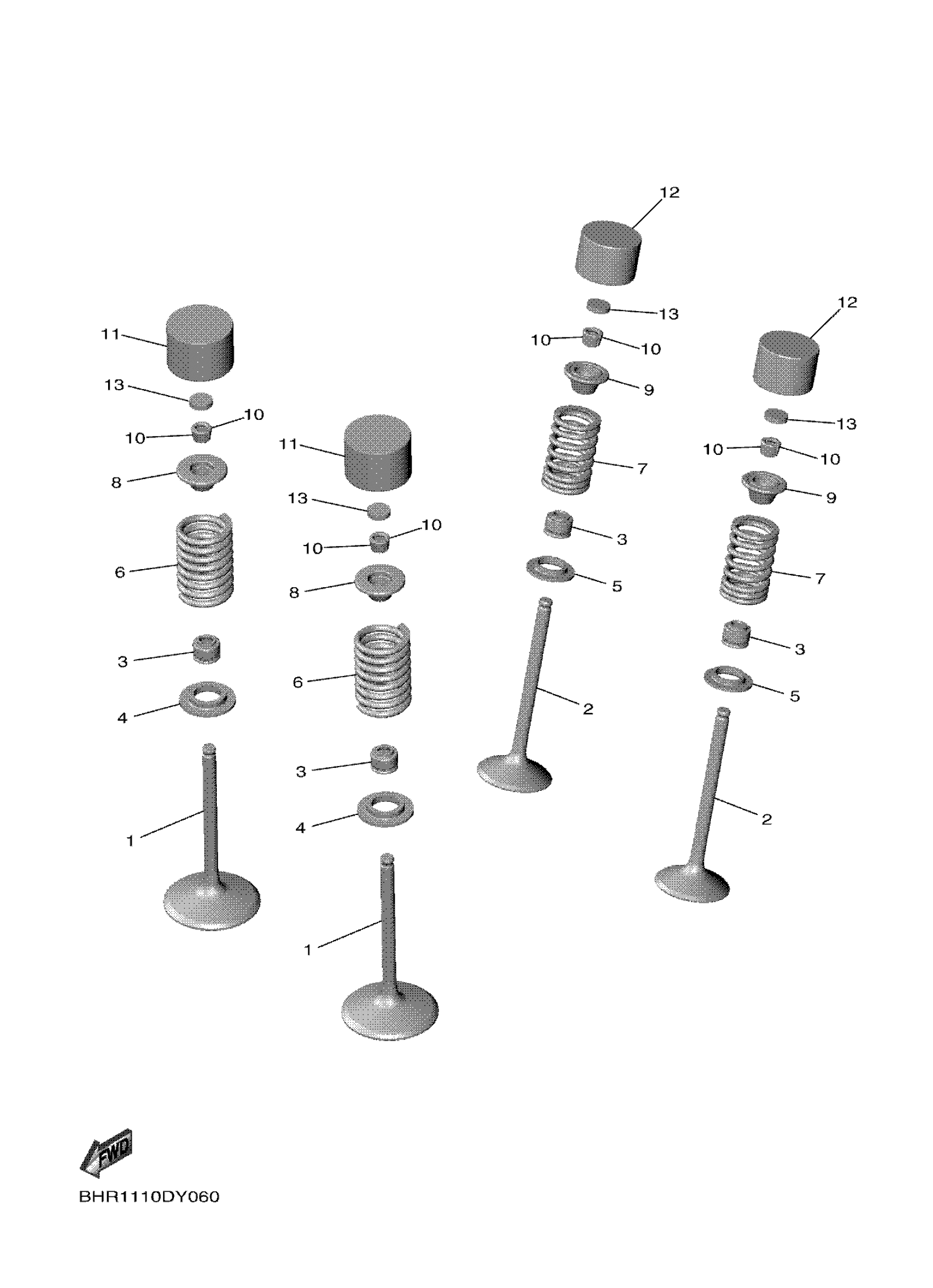

Yamaha YZ450FPL (YZ450F) BHR1 2023 VALVE Diagram

#

Description
Price

1

VALVE, INTAKE

BHR-12111-00-00

$167.04

2

VALVE, EXHAUST

BHR-12121-00-00

$186.03

3

SEAL, VALVE STEM

51Y-12119-00-00

$4.08

4

SEAT, VALVE SPRING

33D-12116-00-00

$8.90

5

SEAT, VALVE SPRING 2

33D-12126-00-00

$8.02

6

SPRING, VALVE INNER

B2W-12113-00-00

$11.88

7

SPRING, VALVE OUTER

BHR-12114-00-00

$12.46

8

RETAINER, VALVE SPRING

33D-12117-00-00

$6.34

9

RETAINER, VALVE SPRING

3LD-12117-00-00

$5.56

10

COTTER, VALVE

3LD-12118-00-00

$2.19

11

LIFTER, VALVE

BR9-12153-00-00

$24.31

12

LIFTER, VALVE

B7M-12153-10-00

$31.24

13

PAD, ADJUSTING

3LD-12168-00-00

$14.42

13

PAD, ADJUSTING

3LD-12168-20-00

$15.36

13

PAD, ADJUSTING

3LD-12168-40-00

$15.36

13

PAD, ADJUSTING (1.35)

3LD-12168-60-00

$9.88

13

PAD, ADJUSTING (1.40)

3LD-12168-80-00

$13.73

13

PAD, ADJUSTING (1.45)

3LD-12168-A0-00

$9.27

13

PAD, ADJUSTING (1.50)

3LD-12168-F0-00

$13.03

13

PAD, ADJUSTING (1.55)

3LD-12168-H1-00

$14.01

13

PAD, ADJUSTING (1.60)

3LD-12168-K1-00

$10.40

13

PAD, ADJUSTING (1.65)

3LD-12168-M1-00

$10.73

13

PAD, ADJUSTING

3LD-12168-R1-00

Unavailable

13

PAD, ADJUSTING

3LD-12168-U1-00

Unavailable

13

PAD, ADJUSTING

3LD-12168-W1-00

Unavailable

13

PAD, ADJUSTING

3LD-12168-Y1-00

Unavailable

13

PAD, ADJUSTING

3LD-12169-11-00

Unavailable

13

PAD, ADJUSTING

3LD-12169-31-00

Unavailable

13

PAD, ADJUSTING

3LD-12169-50-00

Unavailable

13

PAD, ADJUSTING

3LD-12169-70-00

Unavailable

13

PAD, ADJUSTING (2.10)

3LD-12169-90-00

$13.93

13

PAD, ADJUSTING (2.15)

3LD-12169-E0-00

$13.85

13

PAD, ADJUSTING

3LD-12169-G0-00

Unavailable

13

PAD, ADJUSTING (2.25)

3LD-12169-J0-00

$9.88

13

PAD, ADJUSTING

3LD-12169-L0-00

Unavailable

13

PAD, ADJUSTING (2.35)

3LD-12169-N0-00

$8.45

13

PAD, ADJUSTING (2.40)

3LD-12169-T0-00

$13.84
