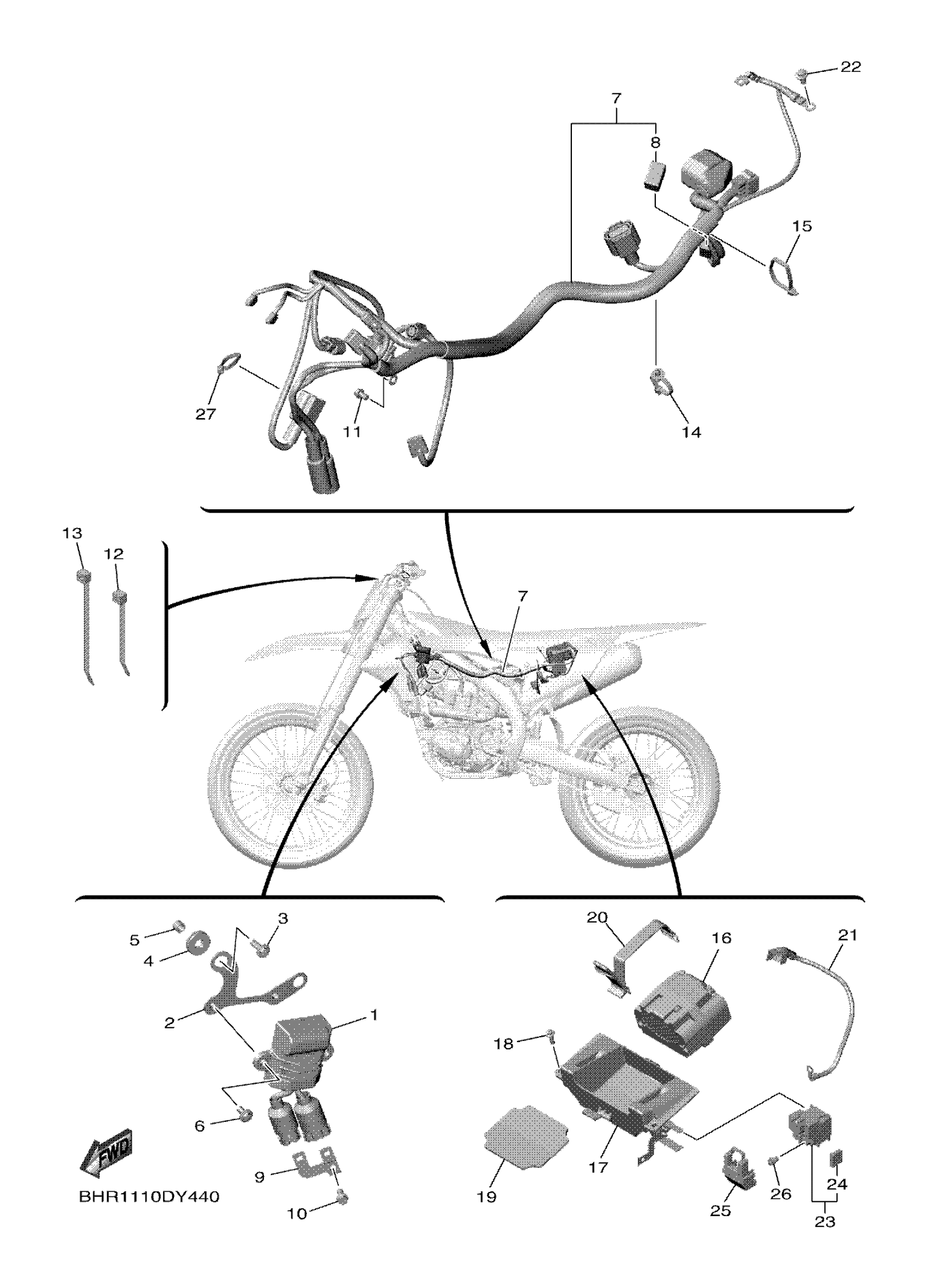

Yamaha YZ450FPL (YZ450F) BHR1 2023 ELECTRICAL 2 Diagram

#

Description
Price

1

RECTIFIER & REGULATOR ASSY

B7B-81960-00-00

$125.96

2

BRACKET, REGULATOR

BHR-21287-00-00

$24.56

3

BOLT, FLANGE

90105-06219-00

$1.73

4

GROMMET (4L0)

90480-19283-00

$6.88

5

COLLAR (8H6)

90387-07573-00

$7.11

6

BOLT, FLANGE

90105-06064-00

Unavailable

7

WIRE HARNESS ASSY

BHR-82590-01-00

Unavailable

8

DIODE ASSY

4WA-81980-00-00

$24.23

9

PLATE

1SL-82388-00-00

$3.74

10

BOLT, FLANGE

90105-06110-00

$5.84

11

BOLT, FLANGE DEEP RECESS

95E32-06010-00

$0.73

12

CLAMP

90464-13077-00

$6.22

13

CLAMP(4FM)

90464-15195-00

$2.57

14

CLAMP

90464-31002-00

$3.57

15

BAND

1UA-82591-00-00

$3.85

16

BATTERY ASSY

BR9-82100-48-00

$698.99

17

BRACKET, BATTERY

BHR-82128-00-00

Unavailable

18

BOLT, FLANGE

90105-06203-00

Unavailable

19

DAMPER

BR9-82176-00-00

Unavailable

20

BAND, BATTERY

BHR-82131-00-00

Unavailable

21

WIRE, PLUS LEAD

BHR-82115-00-00

Unavailable

22

BOLT, FLANGE

90105-06064-00

Unavailable

23

STARTER RELAY ASSY

2GB-81940-00-00

Unavailable

24

FUSE (12V 15A)

36Y-82151-00-00

Unavailable

25

COVER, LEAD WIRE

5SL-82119-10-00

Unavailable

26

BOLT, FLANGE

95022-06008-00

Unavailable

27

CLAMP

90465-10098-00

$1.68
