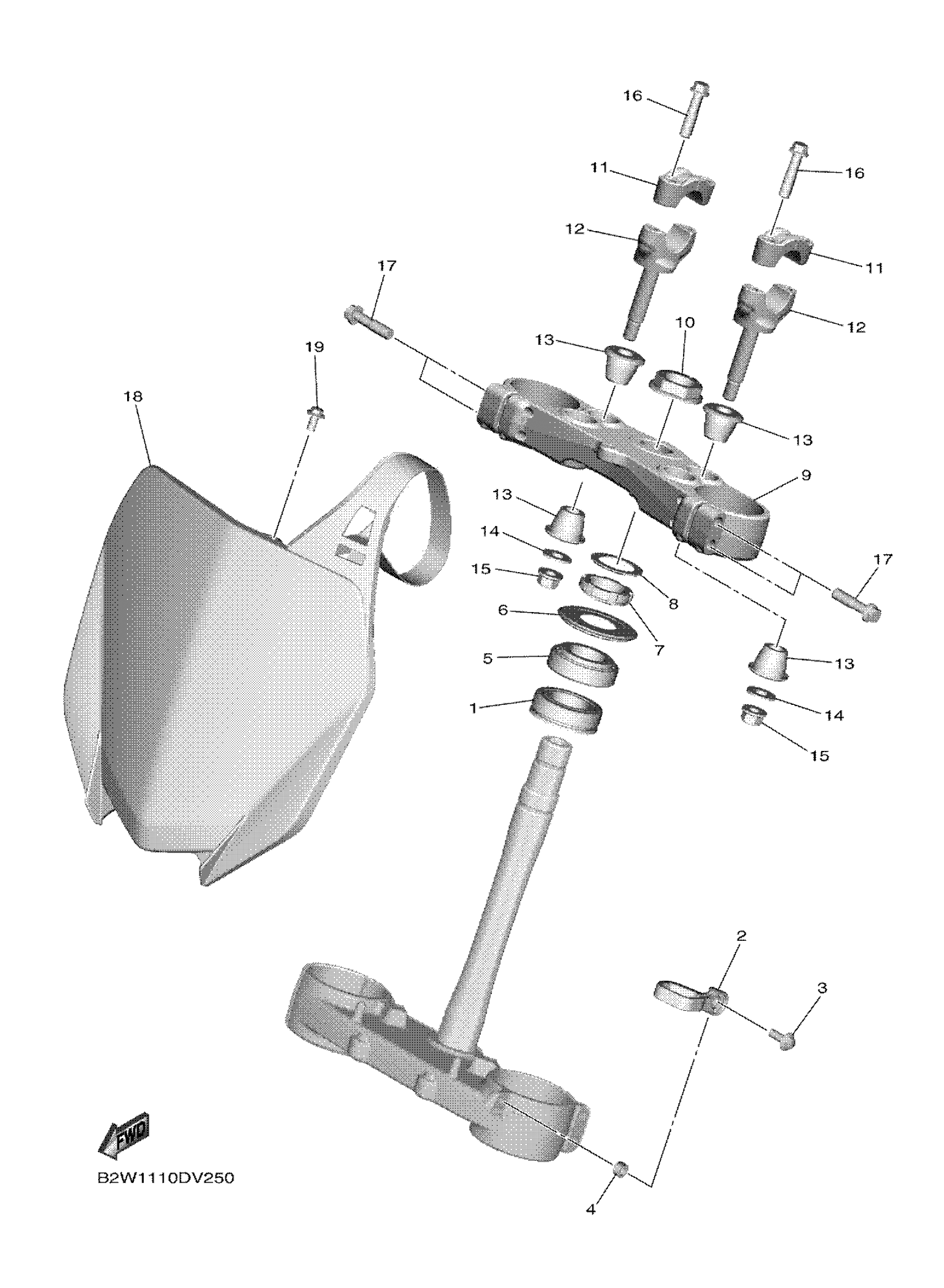

Yamaha YZ450FNL (YZ450F) B2WC 2022 STEERING Diagram

#

Description
Price

1

BEARING(4SR)

93332-00081-00

$47.41

2

GUIDE, CABLE

17D-23389-50-00

$10.16

3

BOLT, FLANGE

90105-06170-00

$3.95

4

COLLAR

90387-06105-00

$6.20

5

BEARING(4EW)

93332-00078-00

$58.70

6

COVER, BALL RACE 2

17D-23416-50-00

$29.30

7

NUT

90179-28015-00

$30.67

8

WASHER, PLATE(1YW)

90201-286K9-00

$5.30

9

CROWN, HANDLE

B2W-23435-00-00

Unavailable

10

NUT

90179-24004-00

$21.57

11

HOLDER, HANDLE UPPER

B2W-23441-00-00

$25.02

12

HOLDER, HANDLE LOWER

B2W-23442-10-00

$31.83

13

HOLDER, DAMPER

1SL-23434-00-00

$8.14

14

WASHER, PLATE

90201-10035-00

$3.33

15

NUT, S/L FLANGE

95602-10200-00

$2.14

16

BOLT, FLANGE DEEP RECESS

95E34-08030-00

Unavailable

17

BOLT, FLANGE DEEP RECESS

95E34-08035-00

Unavailable

18

PLATE, NUMBER

BR9-23485-10-00

Unavailable

19

BOLT, FLANGE

90105-06064-00

Unavailable
