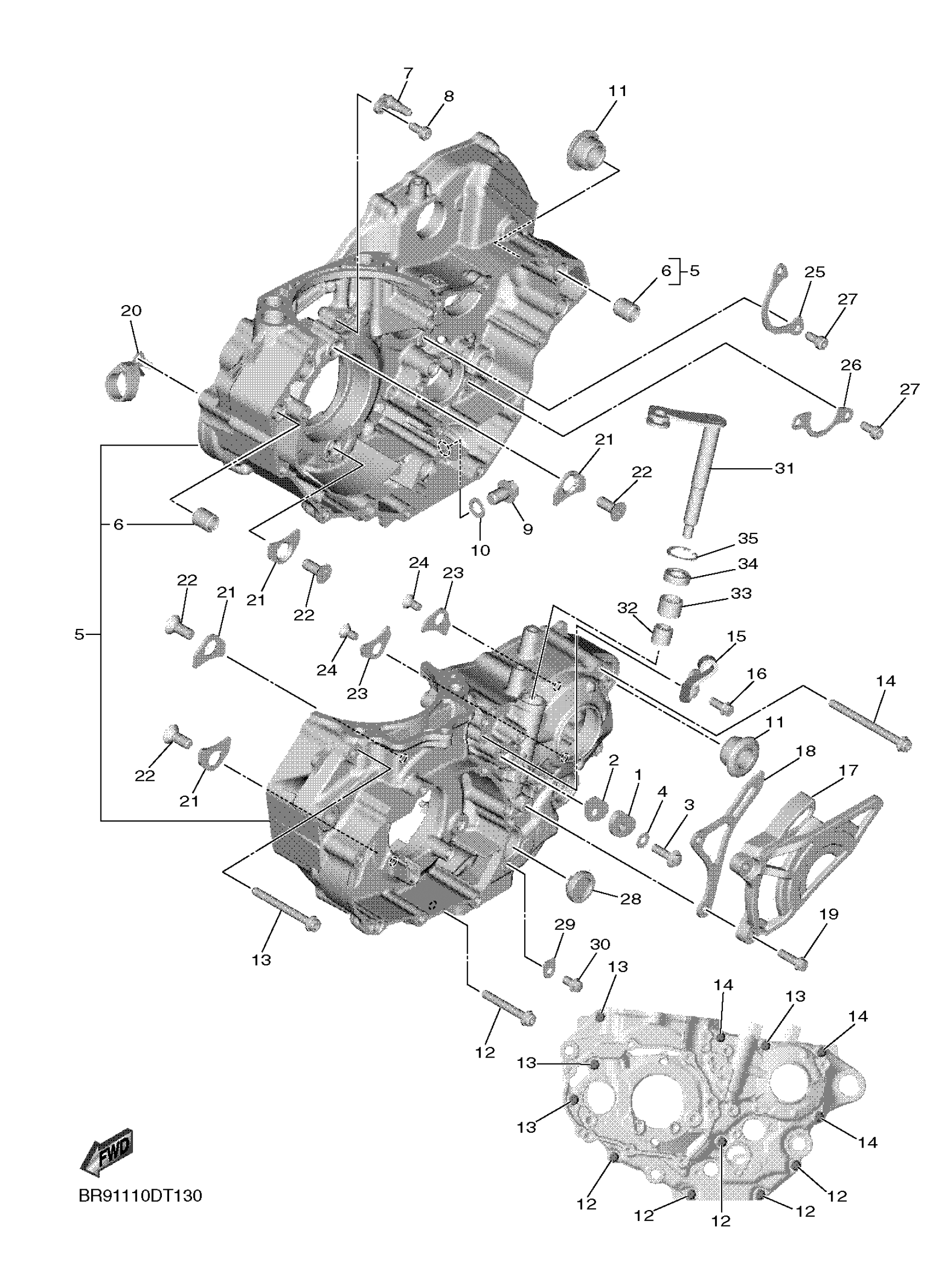

Find the part on the Crankcase diagram for your 2021 Yamaha YZ450F (YZ450FML), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Yamaha YZ450F (YZ450FML) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PLATE

BR9-13371-00-00

1
Out of stock

2

GASKET

1SL-13475-00-00

1
Out of stock

3

BOLT, FLANGE

90105-06203-00

1
Out of stock

4

GASKET (4V2)

90430-06166-00

1
Out of stock

5

CRANKCASE ASSY

BR9-15100-19-00

1
Out of stock

6

PIN, DOWEL

99530-14016-00

1
Out of stock

7

NOZZLE 3

BR9-15155-00-00

1
Out of stock

8

BOLT,SOCKET

91317-06012-00

1
Out of stock

9

BOLT, FLANGE DEEP RECESS

95E32-10016-00

1
Out of stock

10

GASKET

90430-10188-00

1
Out of stock

11

COLLAR

90387-17018-00

1
Out of stock

12

BOLT, HEXAGON SOCKET HEAD

90110-06391-00

1
Out of stock

13

BOLT, HEXAGON SOCKET HEAD

90110-06363-00

1
Out of stock

14

BOLT, HEXAGON SOCKET HEAD

90110-06392-00

1
Out of stock

15

HOLDER, CLUTCH CABLE

BR9-15441-00-00

1
Out of stock

16

BOLT, FLANGE

90105-06100-00

—
Out of stock

17

COVER, CRANKCASE 2

1SL-15421-00-00

—
Out of stock

18

GUIDE, CHAIN

1SL-17466-00-00

—
Out of stock

19

BOLT, FLANGE

90105-06189-00

—
Out of stock

20

HOLDER

1SL-15378-00-00

—
Out of stock

21

PLATE, BEARING COVER

18P-15383-00-00

—
Out of stock

22

SCREW, COUNTERSUNK

90151-08008-00

—
Out of stock

23

PLATE, BEARING COVER

4JT-15381-01-00

—
Out of stock

24

SCREW, COUNTERSUNK

90151-06052-00

—
Out of stock

25

PLATE, BEARING COVER

BR9-15388-00-00

—
Out of stock

26

PLATE, STOPPER 2

1SL-18562-00-00

—
Out of stock

27

BOLT,SOCKET

91317-06012-00

1
Out of stock

28

GAUGE, LEVEL

3Y1-15361-00-00

—
Out of stock

29

HOLDER

5XC-15118-00-00

—
Out of stock

30

BOLT, FLANGE DEEP RECESS

95E32-06010-00

—
Out of stock

31

PUSH LEVER COMP.

BR9-16381-00-00

—
Out of stock

32

BEARING

93317-106B4-00

—
Out of stock

33

BEARING

93317-11096-00

—
Out of stock

34

OIL SEAL

93102-10008-00

—
Out of stock

35

CIRCLIP

99009-18500-00

—
Out of stock
