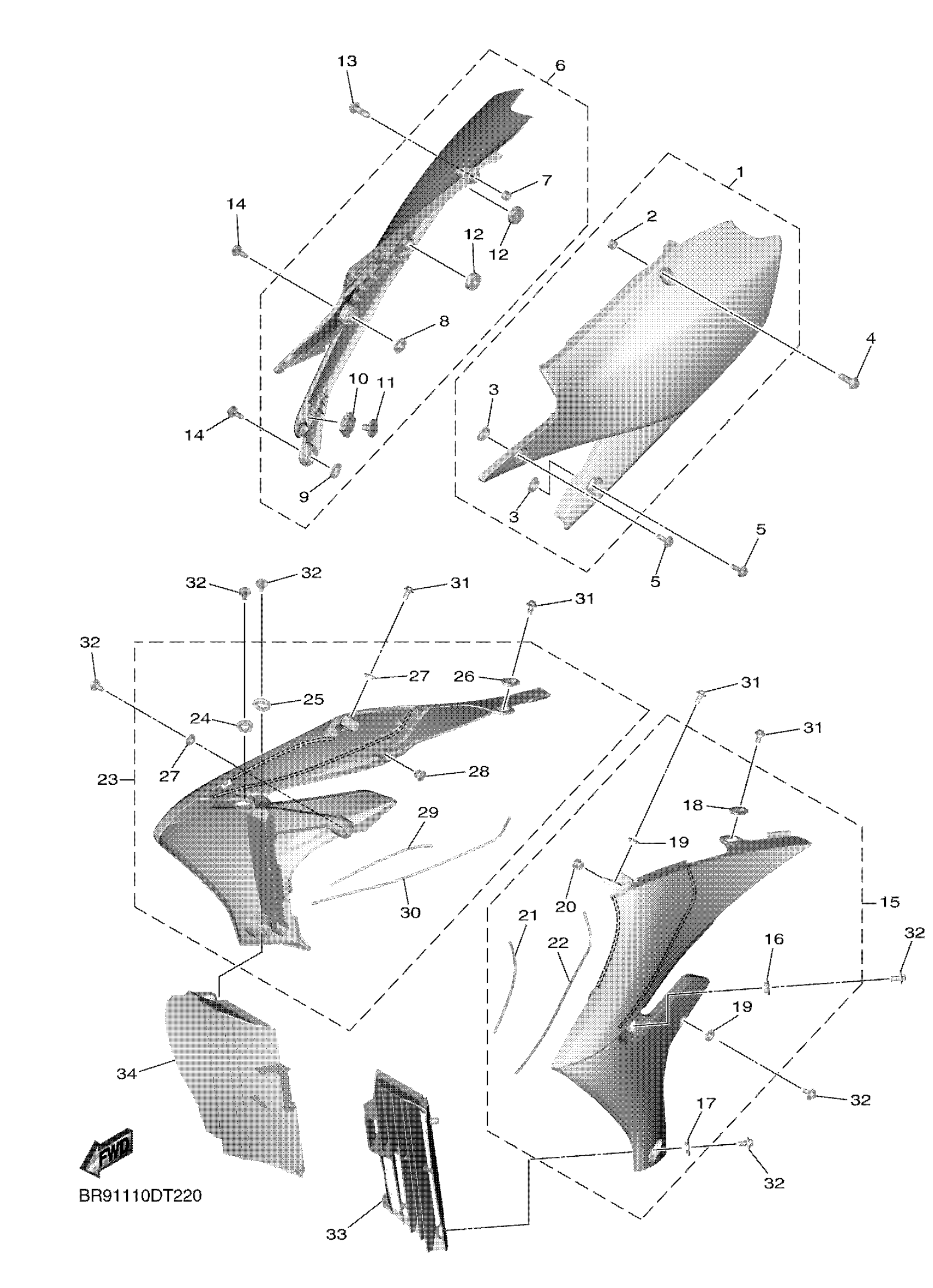

Yamaha YZ450FJW (YZ450F) BR910 2018 SIDE COVER Diagram

#

Description
Price

1

SIDE COVER ASSY 1

BR9-21710-01-00

$68.67

2

COLLAR (5V7)

90387-08057-00

$6.56

3

COLLAR

5TA-21749-00-00

$9.00

4

BOLT, FLANGE

90105-08230-00

$3.32

5

BOLT, WITH WASHER

90119-06177-00

$5.75

6

SIDECOVERASSY2 SET

99999-04413-00

Unavailable

7

COLLAR (5V7)

90387-08057-00

$6.56

8

COLLAR

5BE-21749-00-00

$4.48

9

COLLAR

5TA-21749-00-00

$9.00

10

GROMMET

BR9-21719-00-00

$27.09

11

DAMPER

1DX-21746-01-00

$18.97

12

GROMMET

1SL-21719-00-00

$12.37

13

BOLT, FLANGE

90105-08230-00

$3.32

14

BOLT, WITH WASHER

90119-06177-00

$5.75

15

SIDE COVER ASSY 3

BR9-21730-80-00

$30.37

15

SIDE COVER INSERT ASSY. 3

BR9-217R0-80-00

Unavailable

16

COLLAR

17D-21749-00-00

Unavailable

17

COLLAR

5BE-21749-00-00

$4.48

18

COLLAR

1SL-21748-00-00

Unavailable

19

COLLAR

90387-07045-00

Unavailable

20

GROMMET (397)

90480-10068-00

Unavailable

21

SEAL

BR9-14467-00-00

Unavailable

22

SEAL

BR9-1446R-00-00

Unavailable

23

SIDE COVER ASSY 4

BR9-21740-80-00

Unavailable

23

SIDE COVER INSERT ASSY. 4

BR9-217S0-80-00

Unavailable

24

COLLAR

17D-21749-00-00

Unavailable

25

COLLAR

5BE-21749-00-00

$4.48

26

COLLAR

1SL-21748-00-00

Unavailable

27

COLLAR

90387-07045-00

Unavailable

28

GROMMET (397)

90480-10068-00

Unavailable

29

SEAL

BR9-14467-00-00

Unavailable

30

SEAL

BR9-1446R-00-00

Unavailable

31

BOLT, FLANGE

90105-06064-00

Unavailable

32

BOLT, WITH WASHER(4ES)

90119-06217-00

Unavailable

33

PANEL 1

BR9-2172A-00-00

Unavailable

34

PANEL 2

BR9-2172F-00-00

Unavailable
