2018 Yamaha YZ450F (YZ450FJW) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 2018 Yamaha YZ450F (YZ450FJW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

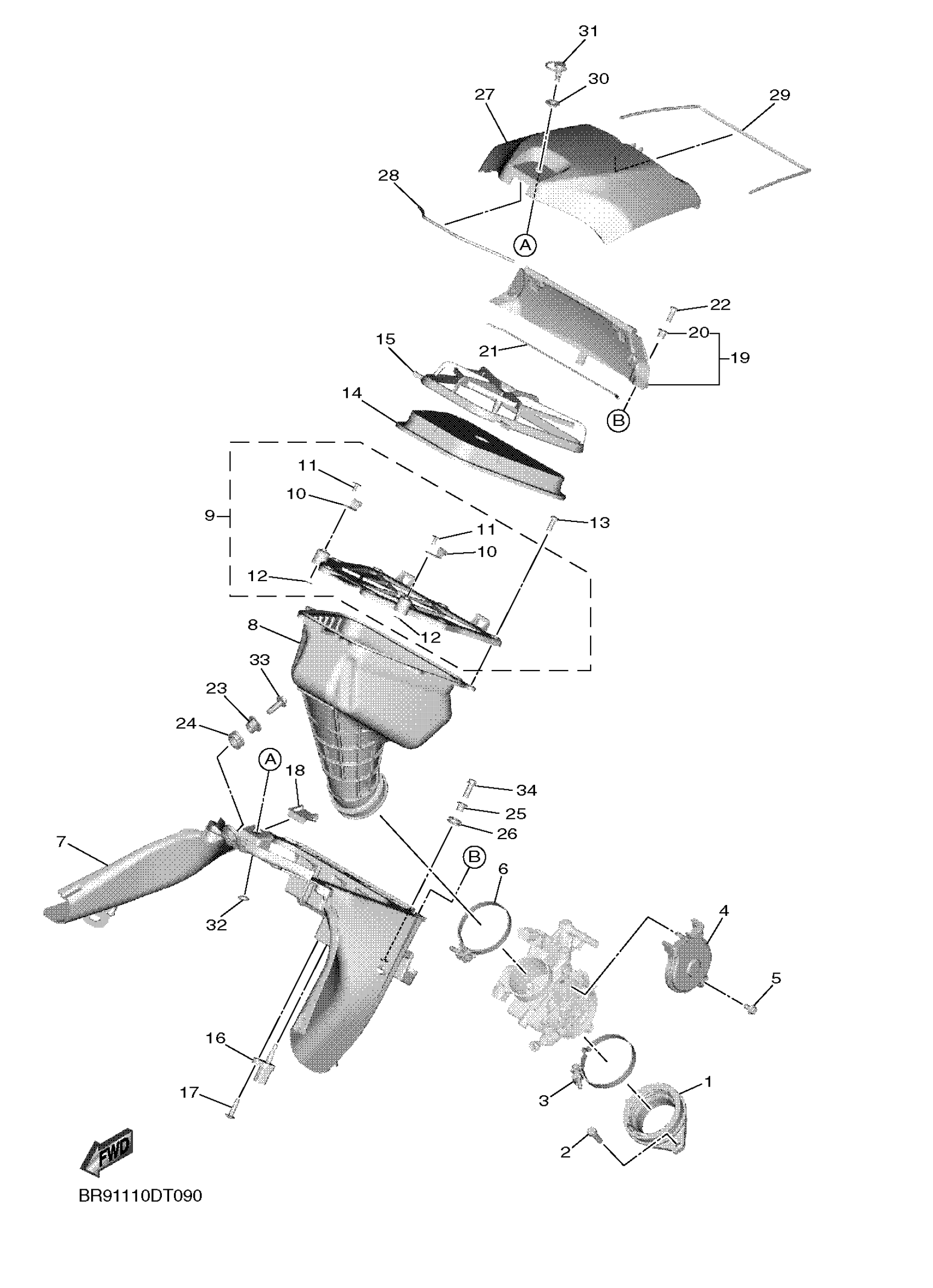

2018 Yamaha YZ450F (YZ450FJW) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 3

BR9-13597-00-00

1
Out of stock

2

BOLT,SOCKET HEAD

91314-06020-00

1
Out of stock

3

HOSE CLAMP ASSY

90450-60004-00

1
Out of stock

4

COVER 1

BR9-14293-00-00

—
Out of stock

5

BOLT, HEXAGON SOCKET HEAD

90110-05066-00

1
Out of stock

6

HOSE CLAMP ASSY

90450-58006-00

1
Out of stock

7

CASE, AIR CLEANER 1

BR9-14411-00-00

1
Out of stock

8

JOINT, AIR CLEANER 1

BR9-14453-00-00

—
Out of stock

9

HOLDER, GUIDE

BR9-14459-01-00

1
Out of stock

10

HINGE

8GC-14406-00-00

1
Out of stock

11

RIVET, BLIND

90267-32013-00

1
Out of stock

12

WASHER, PLATE

90201-03008-00

1
Out of stock

13

SCREW,PAN HEAD

98502-05014-00

1
Out of stock

14

ELEMENT, AIR CLEANER

BR9-14451-11-00

1
Out of stock

15

GUIDE

BR9-14458-00-00

1
Out of stock

16

SENSOR, AIR TEMPERATURE

5YU-85886-00-00

—
Out of stock

17

SCREW, PANHEAD TAPPING

97702-50520-00

—
Out of stock

18

PLATE, SPRING

4XV-2177L-01-00

—
Out of stock

19

CAP, CLEANER CASE 2

BR9-14422-00-00

—
Out of stock

20

COLLAR

90387-05055-00

—
Out of stock

21

SEAL

BR9-14462-00-00

—
Out of stock

22

SCREW,PAN HEAD

98502-05014-00

1
Out of stock

23

COLLAR

BR9-14449-00-00

—
Out of stock

24

GROMMET

90480-01028-00

—
Out of stock

25

COLLAR

90387-06273-00

—
Out of stock

26

GROMMET (2T4)

90480-12237-00

—
Out of stock

27

CAP, CLEANER CASE 1

BR9-14412-00-00

—
Out of stock

28

SEAL

1SL-14452-00-00

—
Out of stock

29

SEAL

BR9-14457-00-00

—
Out of stock

30

COLLAR

90387-07045-00

—
Out of stock

31

HEAD

1SL-28386-00-00

—
Out of stock

32

WASHER, SPECIAL 1

5TJ-21757-00-00

—
Out of stock

33

BOLT, FLANGE

90105-06203-00

—
Out of stock

34

BOLT, WASHER BASED(JA9)

90105-06696-00

—
Out of stock
