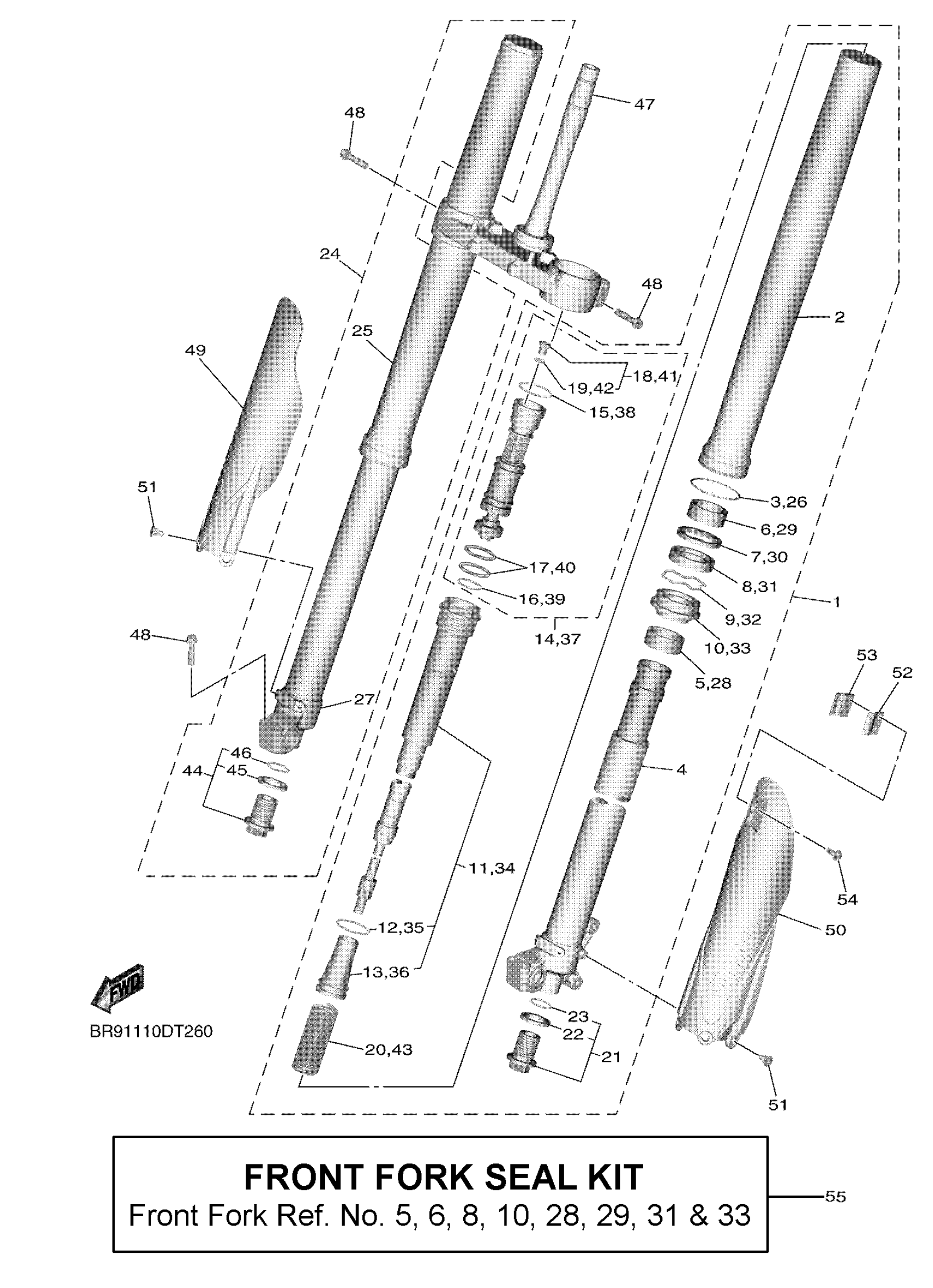

Find the part on the Front Fork diagram for your 2018 Yamaha YZ450F (YZ450FJW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Yamaha YZ450F (YZ450FJW) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSY (L.H)

BR9-23102-00-00

—
Out of stock

2

TUBE, OUTER

33D-23136-00-00

1
Out of stock

3

RING, SNAP

17D-23153-00-00

1
Out of stock

4

INNER TUBE COMP.2

1SL-23120-10-00

—
Out of stock

5

PISTON, FRONT FORK

5XE-23171-L0-00

1
Out of stock

6

METAL, SLIDE 1

5XE-23125-L0-00

1
Out of stock

7

WASHER, OIL SEAL

5XC-23146-10-00

1
Out of stock

8

OIL SEAL

B29-23145-00-00

1
Out of stock

9

RING, SNAP

5XE-23153-L0-00

1
Out of stock

10

SEAL, DUST

5XE-23144-L0-00

1
Out of stock

11

CYLINDER COMP., FRONT FORK

BR9-23170-00-00

—
Out of stock

12

O-RING

1C3-23147-L1-00

1
Out of stock

13

SEAT, SPRING UPPER

BR9-23142-01-00

1
Out of stock

14

VALVE COMP.

BR9-2316A-00-00

—
Out of stock

15

O-RING

1C3-23188-L1-00

1
Out of stock

16

O-RING

1C3-23188-P0-00

—
Out of stock

17

O-RING

1W4-23114-L0-00

—
Out of stock

18

AIR VALVE COMP.

1C3-23190-L1-00

—
Out of stock

19

O-RING

1C3-23188-R1-00

—
Out of stock

20

SPRING, FRONT FORK (K=5.0)

BR9-23141-70-00

—
Out of stock

21

BOLT, CAP

5XC-23111-01-00

—
Out of stock

22

GASKET

2HH-23158-L0-00

—
Out of stock

23

GASKET

276-23114-01-00

—
Out of stock

24

FRONT FORK ASSY (R.H)

BR9-23103-00-00

—
Out of stock

25

TUBE, OUTER

33D-23136-00-00

1
Out of stock

26

RING, SNAP

17D-23153-00-00

1
Out of stock

27

INNER TUBE COMP.1

1SL-23110-10-00

—
Out of stock

28

PISTON, FRONT FORK

5XE-23171-L0-00

1
Out of stock

29

METAL, SLIDE 1

5XE-23125-L0-00

1
Out of stock

30

WASHER, OIL SEAL

5XC-23146-10-00

1
Out of stock

31

OIL SEAL

B29-23145-00-00

1
Out of stock

32

RING, SNAP

5XE-23153-L0-00

1
Out of stock

33

SEAL, DUST

5XE-23144-L0-00

1
Out of stock

34

CYLINDER COMP., FRONT FORK

BR9-23170-00-00

—
Out of stock

35

O-RING

1C3-23147-L1-00

1
Out of stock

36

SEAT, SPRING UPPER

BR9-23142-01-00

1
Out of stock

37

VALVE COMP.

BR9-2316A-00-00

—
Out of stock

38

O-RING

1C3-23188-L1-00

1
Out of stock

39

O-RING

1C3-23188-P0-00

—
Out of stock

40

O-RING

1W4-23114-L0-00

—
Out of stock

41

AIR VALVE COMP.

1C3-23190-L1-00

—
Out of stock

42

O-RING

1C3-23188-R1-00

—
Out of stock

43

SPRING, FRONT FORK (K=5.0)

BR9-23141-70-00

—
Out of stock

44

BOLT, CAP

5XC-23111-01-00

—
Out of stock

45

GASKET

2HH-23158-L0-00

—
Out of stock

46

GASKET

276-23114-01-00

—
Out of stock

47

UNDER BRACKET COMP.

33D-23340-20-00

—
Out of stock

48

BOLT, FLANGE

90105-08154-00

—
Out of stock

49

PROTECTOR 2

17D-2315J-50-00

—
Out of stock

50

PROTECTOR 1

17D-2315H-50-00

—
Out of stock

51

BOLT

90109-06232-00

—
Out of stock

52

CLAMP

17D-23466-00-00

—
Out of stock

53

CLAMP

17D-23467-00-00

—
Out of stock

54

BOLT, FLANGE

90105-06170-00

—
Out of stock

55

FORK SEAL KIT (TWO FORKS)

B29-W003B-00-00

—
Out of stock
