2016 Yamaha YZ450F (YZ450FGL) Starter Diagram

← All diagrams

Find the part on the Starter diagram for your 2016 Yamaha YZ450F (YZ450FGL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

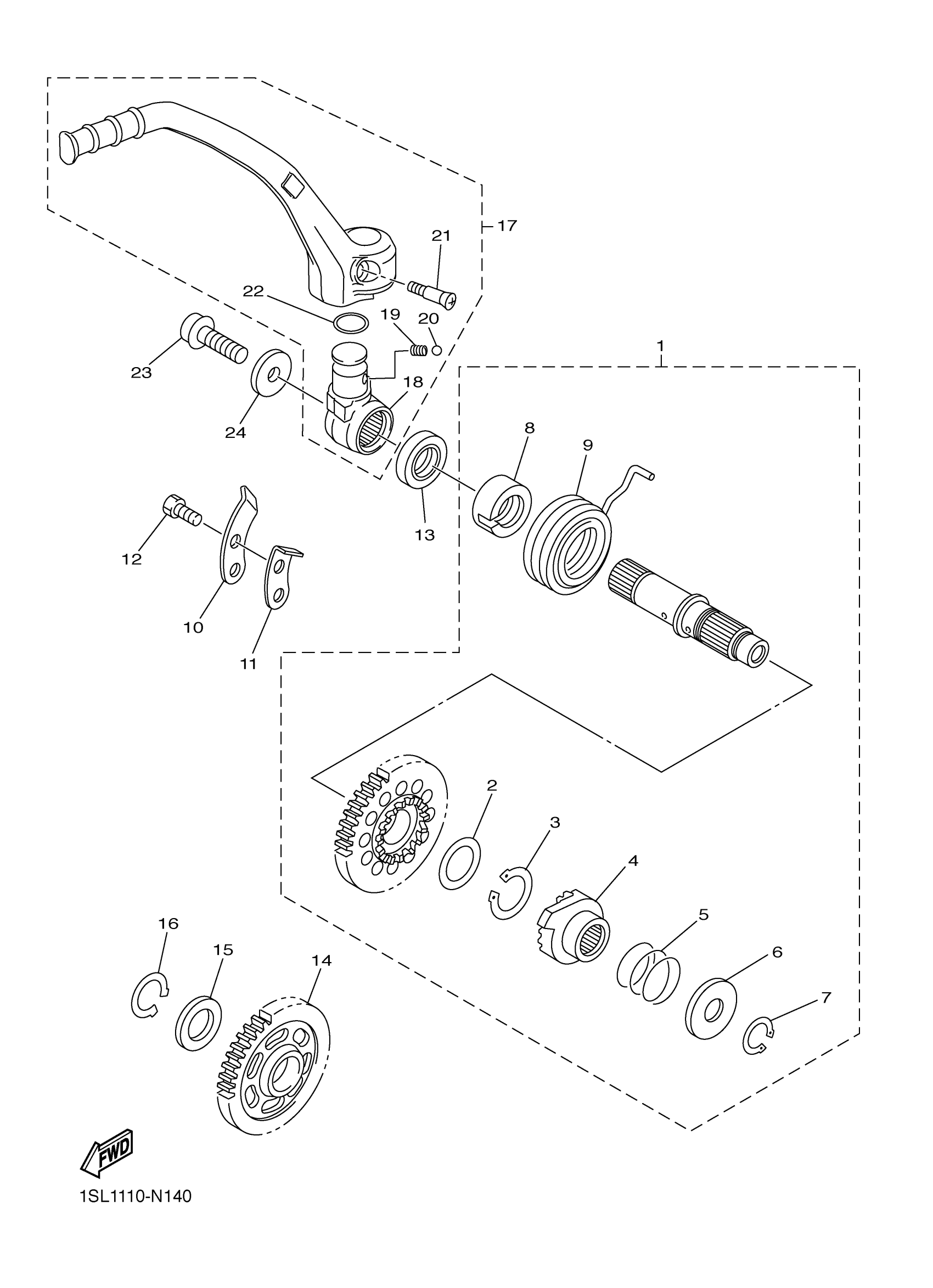

2016 Yamaha YZ450F (YZ450FGL) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK SHAFT ASSY

2S2-15601-00-00

—
Out of stock

2

WASHER, PLATE (2K7)

90201-20685-00

1

$5.69

In stock

3

CIRCLIP (525)

93410-20038-00

1

$2.62

In stock

4

WHEEL, RATCHET

2S2-15671-00-00

—
Out of stock

5

SPRING, COMPRESSION

90501-160A2-00

1
Out of stock

6

WASHER, PLATE(4GL)

90201-167P7-00

1

$8.12

In stock

7

CIRCLIP(13T)

99009-16400-00

1

$5.35

In stock

8

GUIDE, SPRING

5GR-15664-00-00

1
Out of stock

9

SPRING, TORSION

90508-305B0-00

1
Out of stock

10

GUIDE, RATCHET WHEEL

3Y6-15674-00-00

—
Out of stock

11

STOPPER

2NX-15668-00-00

1
Out of stock

12

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

13

OIL SEAL (20X30X7-371)

93102-20108-00

1

$9.17

In stock

14

GEAR, KICK IDLE

5TA-15651-00-00

1
Out of stock

15

WASHER, PLATE (2K7)

90201-20685-00

1

$5.69

In stock

16

CIRCLIP(1AR)

99009-20400-00

—
Out of stock

17

KICK CRANK ASSY

1SL-15620-00-00

—
Out of stock

18

BOSS, KICK CRANK

1SL-15621-00-00

—
Out of stock

19

SPRING, COMPRESSION

90501-147A5-00

—

$6.17

In stock

20

BALL (12R)

93507-32031-00

—
Out of stock

21

SCREW, COUNTERSUNK

90151-06045-00

—

$6.17

In stock

22

O-RING(36Y)

93210-17570-00

—

$5.86

In stock

23

BOLT, HEXAGON SOCKET HEAD

90110-08097-00

—

$6.17

In stock

24

WASHER, PLATE

90201-08047-00

—
Out of stock
