2016 Yamaha YZ450F (YZ450FGL) Front Fork Diagram

← All diagrams

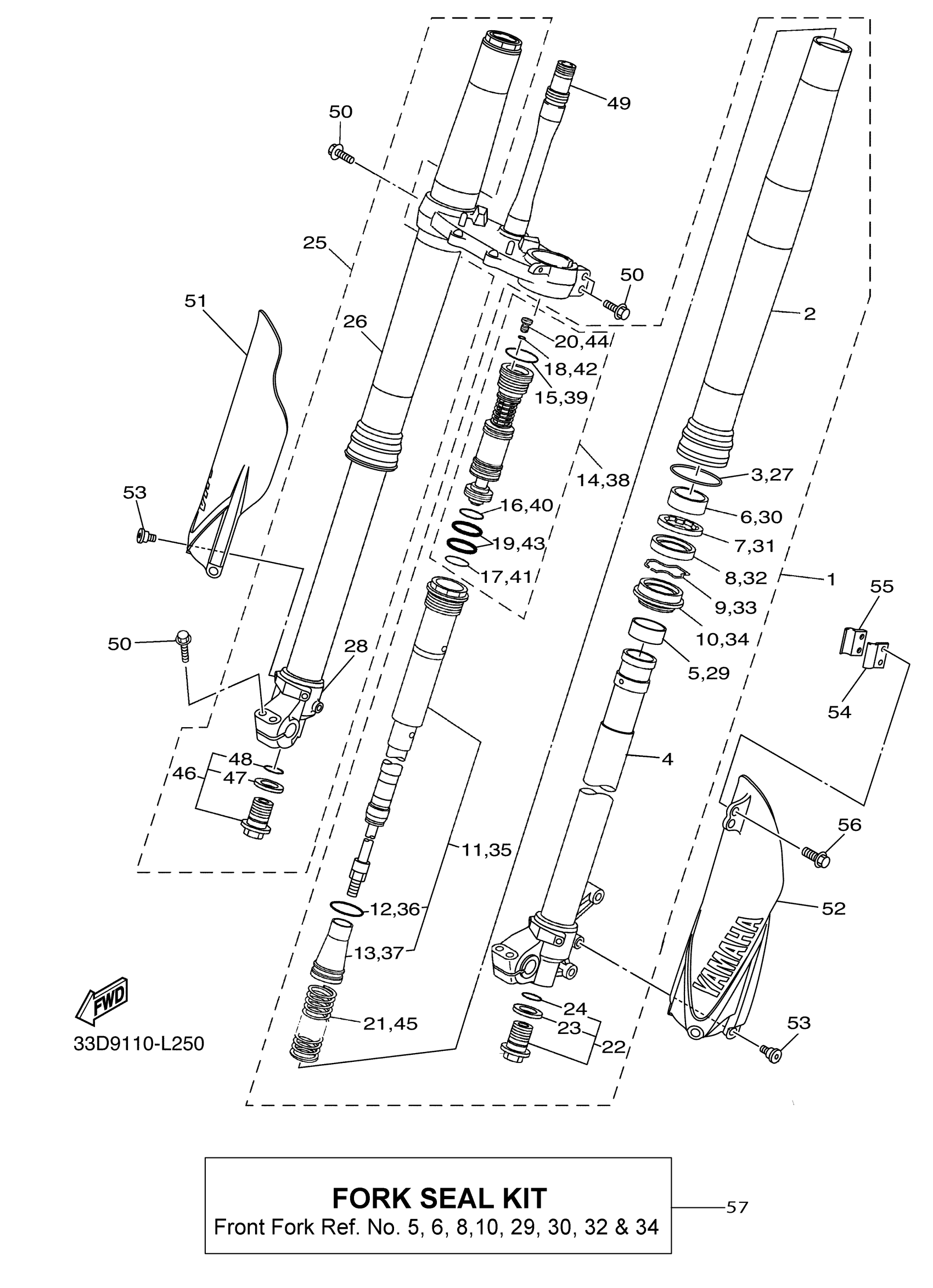

Find the part on the Front Fork diagram for your 2016 Yamaha YZ450F (YZ450FGL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha YZ450F (YZ450FGL) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSY (L.H)

B11-23102-00-00

1
Out of stock

2

TUBE, OUTER

33D-23136-00-00

1

$714.99

In stock

3

RING, SNAP

17D-23153-00-00

1

$4.17

In stock

4

INNER TUBE COMP. (L.H.)

1SL-23120-00-00

—
Out of stock

5

PISTON, FRONT FORK

5XE-23171-L0-00

1

$20.69

In stock

6

METAL, SLIDE 1

5XE-23125-L0-00

1

$21.00

In stock

7

WASHER, OIL SEAL

5XC-23146-10-00

1

$10.25

In stock

8

OIL SEAL

17D-23145-00-00

1

$22.77

In stock

9

RING, SNAP

5XE-23153-L0-00

1

$6.43

In stock

10

SEAL, DUST

5XE-23144-L0-00

1

$19.28

In stock

11

CYLINDER COMP., FRONT FORK

B11-23170-00-00

—
Out of stock

12

O-RING

1C3-23147-L1-00

1

$3.20

In stock

13

SEAT, SPRING UPPER

17D-23142-00-00

1

$68.63

In stock

14

VALVE COMP.

B11-2316A-00-00

—
Out of stock

15

O-RING

1C3-23188-L1-00

1

$2.74

In stock

16

O-RING

1C3-23188-N0-00

—

$6.43

In stock

17

O-RING

1C3-23188-P0-00

—

$5.93

In stock

18

O-RING

1C3-23188-R1-00

—

$2.74

In stock

19

O-RING

1W4-23114-L0-00

—

$7.45

In stock

20

AIR VALVE COMP.

1C3-23190-L1-00

—

$20.06

In stock

21

SPRING, FRONT FORK

1SL-23141-90-00

—
Out of stock

22

BOLT, CAP

5XC-23111-01-00

—

$66.94

In stock

23

GASKET

2HH-23158-L0-00

—

$9.49

In stock

24

GASKET

276-23114-01-00

—
Out of stock

25

FRONT FORK ASSY (R.H)

B11-23103-00-00

—
Out of stock

26

TUBE, OUTER

33D-23136-00-00

1

$714.99

In stock

27

RING, SNAP

17D-23153-00-00

1

$4.17

In stock

28

INNER TUBE COMP. (R.H.)

1SL-23110-00-00

—
Out of stock

29

PISTON, FRONT FORK

5XE-23171-L0-00

1

$20.69

In stock

30

METAL, SLIDE 1

5XE-23125-L0-00

1

$21.00

In stock

31

WASHER, OIL SEAL

5XC-23146-10-00

1

$10.25

In stock

32

OIL SEAL

17D-23145-00-00

1

$22.77

In stock

33

RING, SNAP

5XE-23153-L0-00

1

$6.43

In stock

34

SEAL, DUST

5XE-23144-L0-00

1

$19.28

In stock

35

CYLINDER COMP., FRONT FORK

B11-23170-00-00

—
Out of stock

36

O-RING

1C3-23147-L1-00

1

$3.20

In stock

37

SEAT, SPRING UPPER

17D-23142-00-00

1

$68.63

In stock

38

VALVE COMP.

B11-2316A-00-00

—
Out of stock

39

O-RING

1C3-23188-L1-00

1

$2.74

In stock

40

O-RING

1C3-23188-N0-00

—

$6.43

In stock

41

O-RING

1C3-23188-P0-00

—

$5.93

In stock

42

O-RING

1C3-23188-R1-00

—

$2.74

In stock

43

O-RING

1W4-23114-L0-00

—

$7.45

In stock

44

AIR VALVE COMP.

1C3-23190-L1-00

—

$20.06

In stock

45

SPRING, FRONT FORK

1SL-23141-90-00

—
Out of stock

46

BOLT, CAP

5XC-23111-01-00

—

$66.94

In stock

47

GASKET

2HH-23158-L0-00

—

$9.49

In stock

48

GASKET

276-23114-01-00

—
Out of stock

49

UNDER BRACKET COMP.

B11-23340-00-00

—
Out of stock

50

BOLT, FLANGE

90105-08154-00

—

$5.78

In stock

51

PROTECTOR 2

17D-2315J-50-00

—

$13.85

In stock

52

PROTECTOR 1

17D-2315H-50-00

—

$13.85

In stock

53

BOLT

90109-06232-00

—

$3.29

In stock

54

CLAMP

17D-23466-00-00

—

$16.02

In stock

55

CLAMP

17D-23467-00-00

—

$21.92

In stock

56

BOLT, FLANGE

90105-06170-00

—

$4.23

In stock

57

FORK SEAL KIT (TWO FORKS)

17D-W003B-00-00

—

$75.23

In stock
