2016 Yamaha YZ450F (YZ450FGL) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2016 Yamaha YZ450F (YZ450FGL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

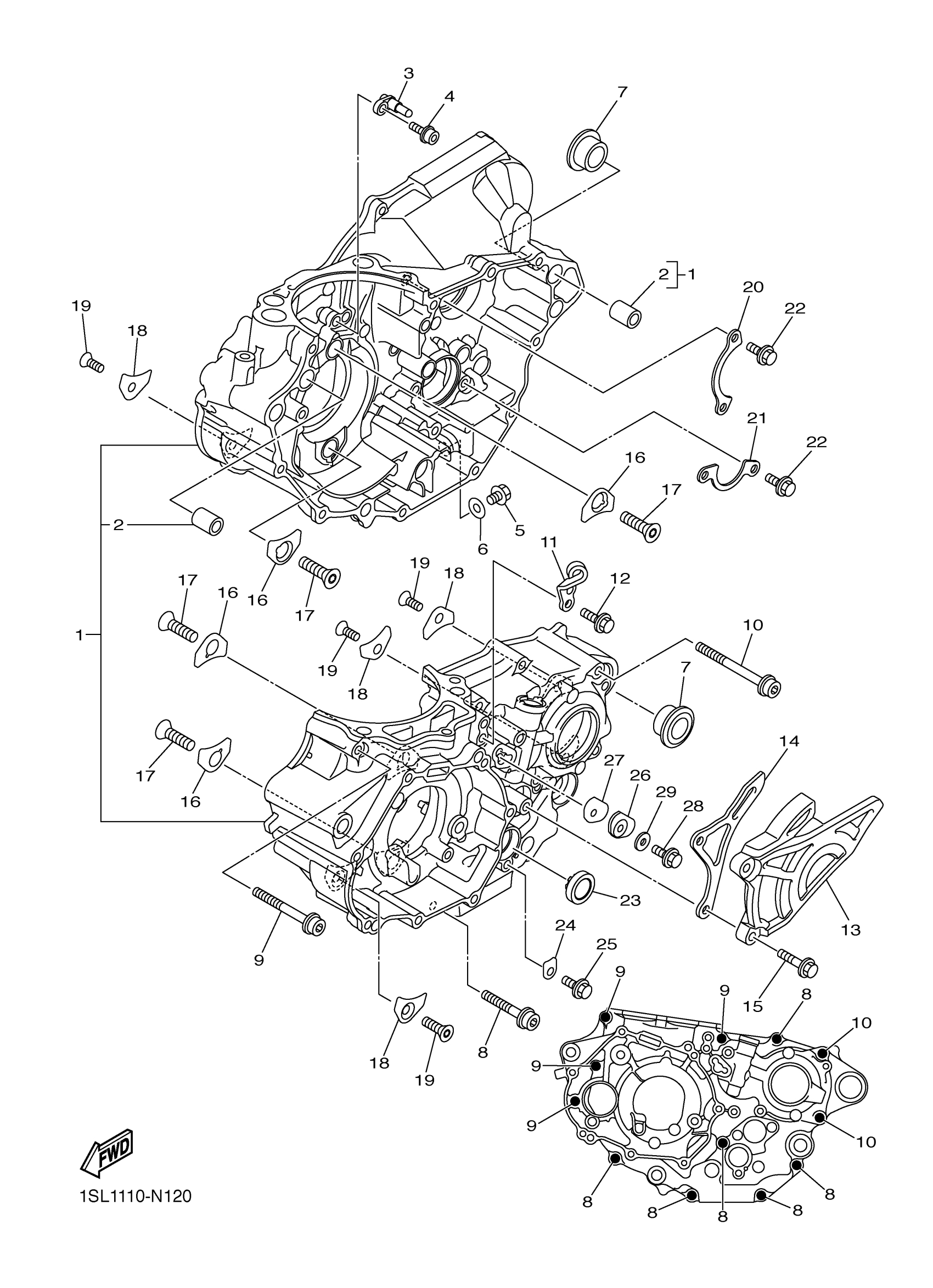

2016 Yamaha YZ450F (YZ450FGL) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

1SL-15100-09-00

—
Out of stock

2

PIN, DOWEL

99530-14016-00

1

$3.20

In stock

3

NOZZLE 3

1SL-15155-00-00

—
Out of stock

4

BOLT (33M)

91312-06014-00

1

$4.74

In stock

5

BOLT, FLANGE

95022-10016-00

1

$6.28

In stock

6

GASKET

90430-10188-00

1

$5.98

In stock

7

COLLAR

90387-17015-00

1
Out of stock

8

BOLT, HEXAGON SOCKET HEAD

90110-06391-00

1

$1.78

In stock

9

BOLT, HEXAGON SOCKET HEAD

90110-06363-00

1

$2.52

In stock

10

BOLT, HEXAGON SOCKET HEAD

90110-06392-00

1

$3.15

In stock

11

HOLDER, CLUTCH CABLE

1SL-15441-00-00

1

$10.22

In stock

12

BOLT, FLANGE

90105-06100-00

1

$5.58

In stock

13

COVER, CRANKCASE 2

1SL-15421-00-00

1

$14.25

In stock

14

GUIDE, CHAIN

1SL-17466-00-00

1

$14.68

In stock

15

BOLT, FLANGE

90105-06189-00

1

$6.17

In stock

16

PLATE, BEARING COVER

18P-15383-00-00

—

$6.72

In stock

17

SCREW, COUNTERSUNK

90151-08003-00

—

$5.54

In stock

18

PLATE, BEARING COVER

4JT-15381-01-00

—
Out of stock

19

SCREW, COUNTERSUNK

90151-06052-00

—

$6.38

In stock

20

PLATE, BEARING COVER

1SL-15388-00-00

—
Out of stock

21

PLATE, STOPPER 2

1SL-18562-00-00

—

$5.74

In stock

22

BOLT, FLANGE

95022-06012-00

—

$3.00

In stock

23

GAUGE, LEVEL

3Y1-15361-00-00

—

$25.51

In stock

24

HOLDER

5XC-15118-00-00

—

$4.12

In stock

25

BOLT, FLANGE

95022-06010-00

—

$5.45

In stock

26

PLATE

BR9-13371-00-00

—

$10.46

In stock

27

GASKET

1SL-13475-00-00

—

$11.51

In stock

28

BOLT, FLANGE

90105-06203-00

—

$1.82

In stock

29

GASKET (4V2)

90430-06166-00

—

$3.45

In stock
