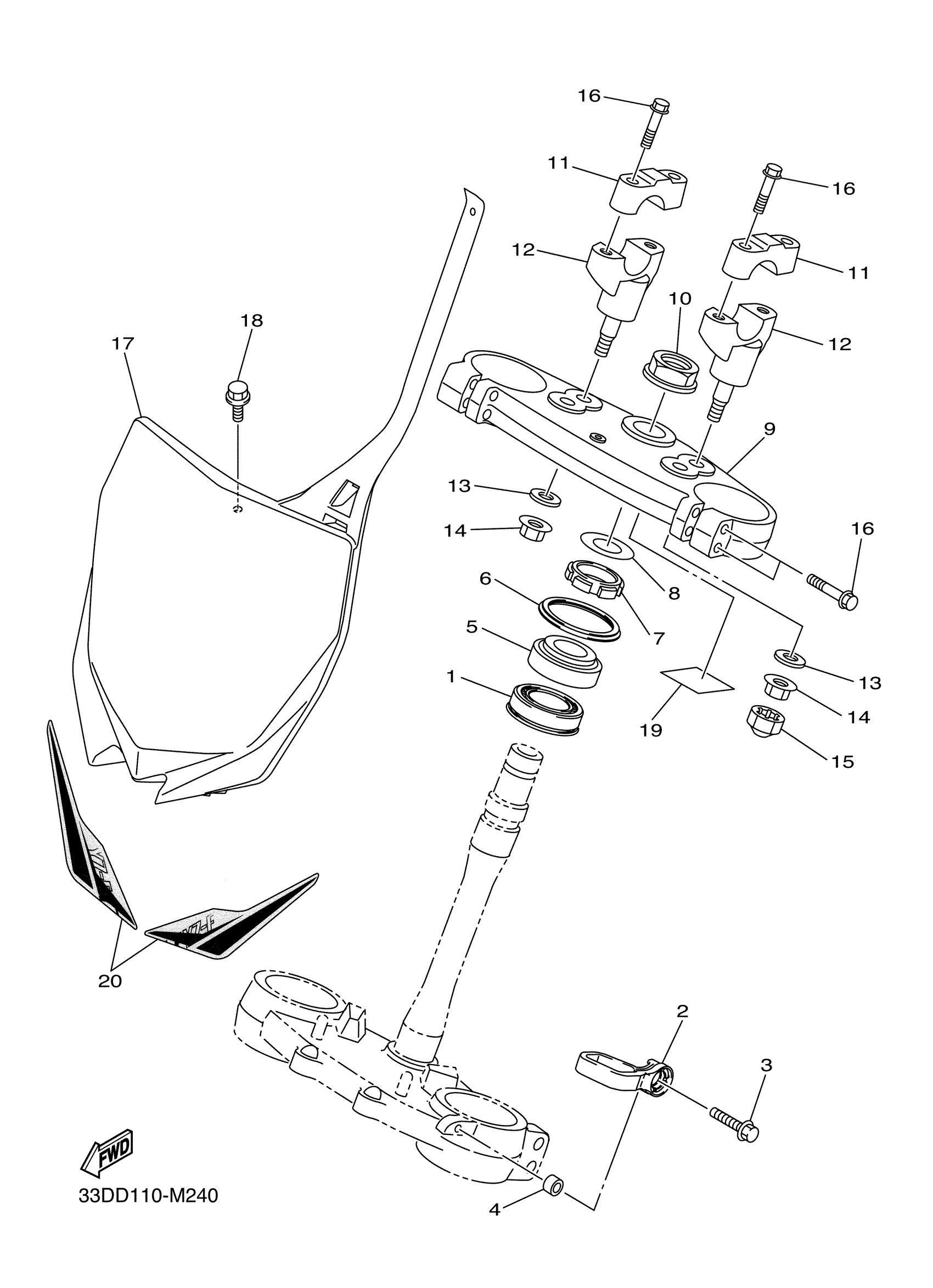

Yamaha YZ450FDW (YZ450F) 33DD0 2013 STEERING Diagram

#

Description
Price

1

BEARING(4SR)

93332-00081-00

$47.41

2

GUIDE, CABLE

17D-23389-50-00

$10.16

3

BOLT, FLANGE

90105-06170-00

$3.95

4

COLLAR

90387-06105-00

$6.20

5

BEARING(4EW)

93332-00078-00

$58.70

6

COVER, BALL RACE 2

17D-23416-50-00

$29.30

7

NUT

90179-28015-00

$30.67

8

WASHER, PLATE(1YW)

90201-286K9-00

$5.30

9

CROWN, HANDLE

33D-23435-00-00

Unavailable

10

NUT

90179-24004-00

$21.57

11

HOLDER, HANDLE UPPER

18P-23441-00-00

$24.49

12

HOLDER, HANDLE LOWER

33D-23442-00-00

Unavailable

13

958-69527-00 WASHER, PLAIN

92990-10200-00

$2.67

14

NUT, S/L FLANGE

95602-10200-00

$2.14

15

CAP

5YU-2143A-00-00

$4.44

16

BOLT, FLANGE

90105-08154-00

Unavailable

17

PLATE, NUMBER

17D-23485-50-00

Unavailable

18

BOLT, FLANGE

90105-06064-00

Unavailable

19

PROTECTOR

33D-23472-00-00

Unavailable
