2012 Yamaha YZ450FB (YZ450FBW) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 2012 Yamaha YZ450FB (YZ450FBW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

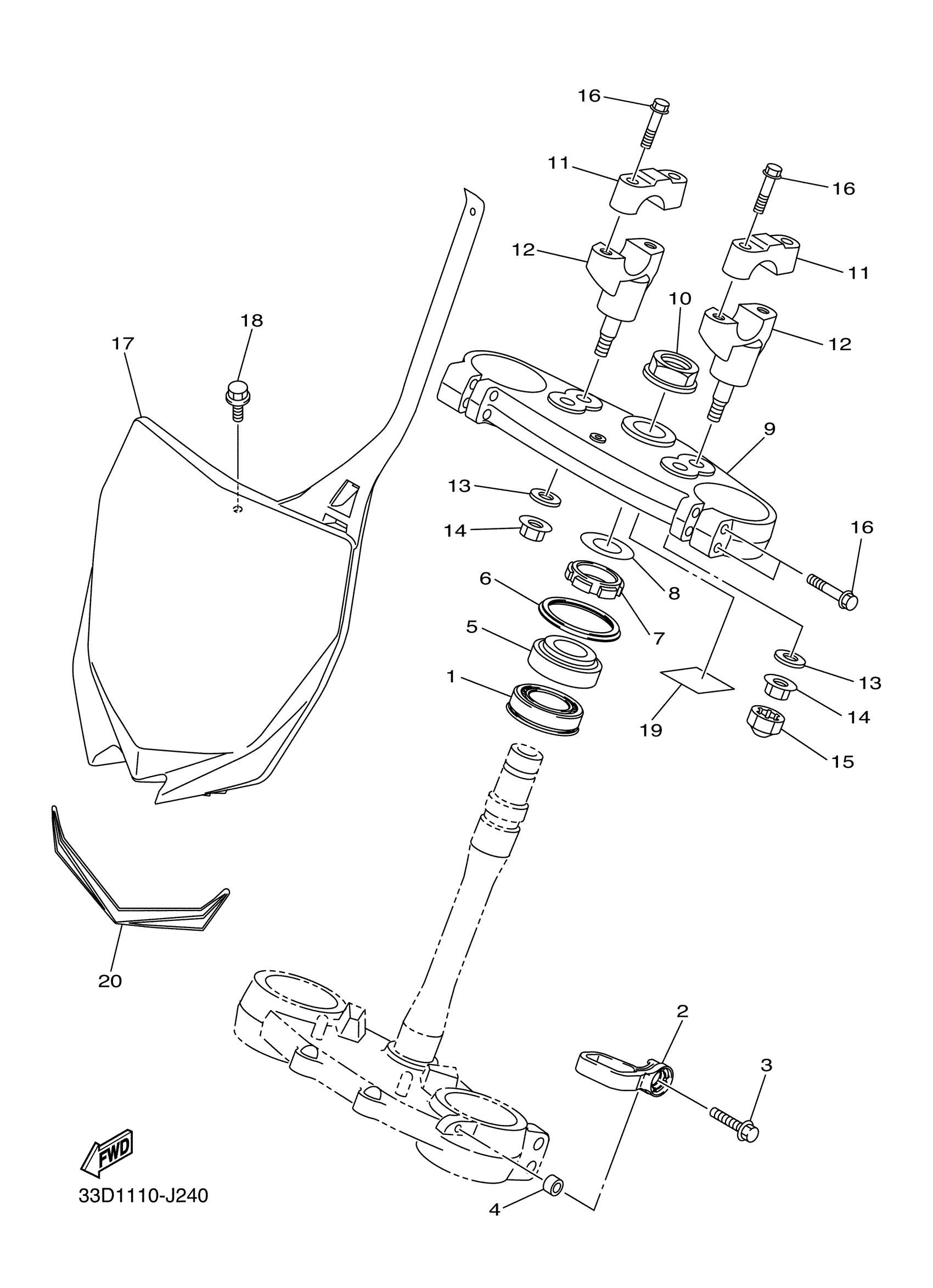

2012 Yamaha YZ450FB (YZ450FBW) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BEARING(4SR)

93332-00081-00

1
Out of stock

2

GUIDE, CABLE

17D-23389-50-00

1
Out of stock

3

BOLT, FLANGE

90105-06170-00

1
Out of stock

4

COLLAR

90387-06105-00

1
Out of stock

5

BEARING(4EW)

93332-00078-00

1
Out of stock

6

COVER, BALL RACE 2

17D-23416-50-00

1
Out of stock

7

NUT

90179-28015-00

1
Out of stock

8

WASHER, PLATE(1YW)

90201-286K9-00

1
Out of stock

9

CROWN, HANDLE

33D-23435-00-00

—
Out of stock

10

NUT

90179-24004-00

1
Out of stock

11

HOLDER, HANDLE UPPER

18P-23441-00-00

1
Out of stock

12

HOLDER, HANDLE LOWER

33D-23442-00-00

—
Out of stock

13

958-69527-00 WASHER, PLAIN

92990-10200-00

1
Out of stock

14

NUT, S/L FLANGE

95602-10200-00

1
Out of stock

15

CAP

5YU-2143A-00-00

1
Out of stock

16

BOLT, FLANGE

90105-08154-00

—
Out of stock

17

PLATE, NUMBER

17D-23485-50-00

—
Out of stock

18

BOLT, FLANGE

90105-06064-00

—
Out of stock

19

PROTECTOR

33D-23472-00-00

—
Out of stock

20

GRAPHIC 1

17D-2339E-20-00

1
Out of stock
← Rear Wheel Steering Handle Cable →
