2012 Yamaha YZ450FB (YZ450FBW) Intake Diagram

← All diagrams

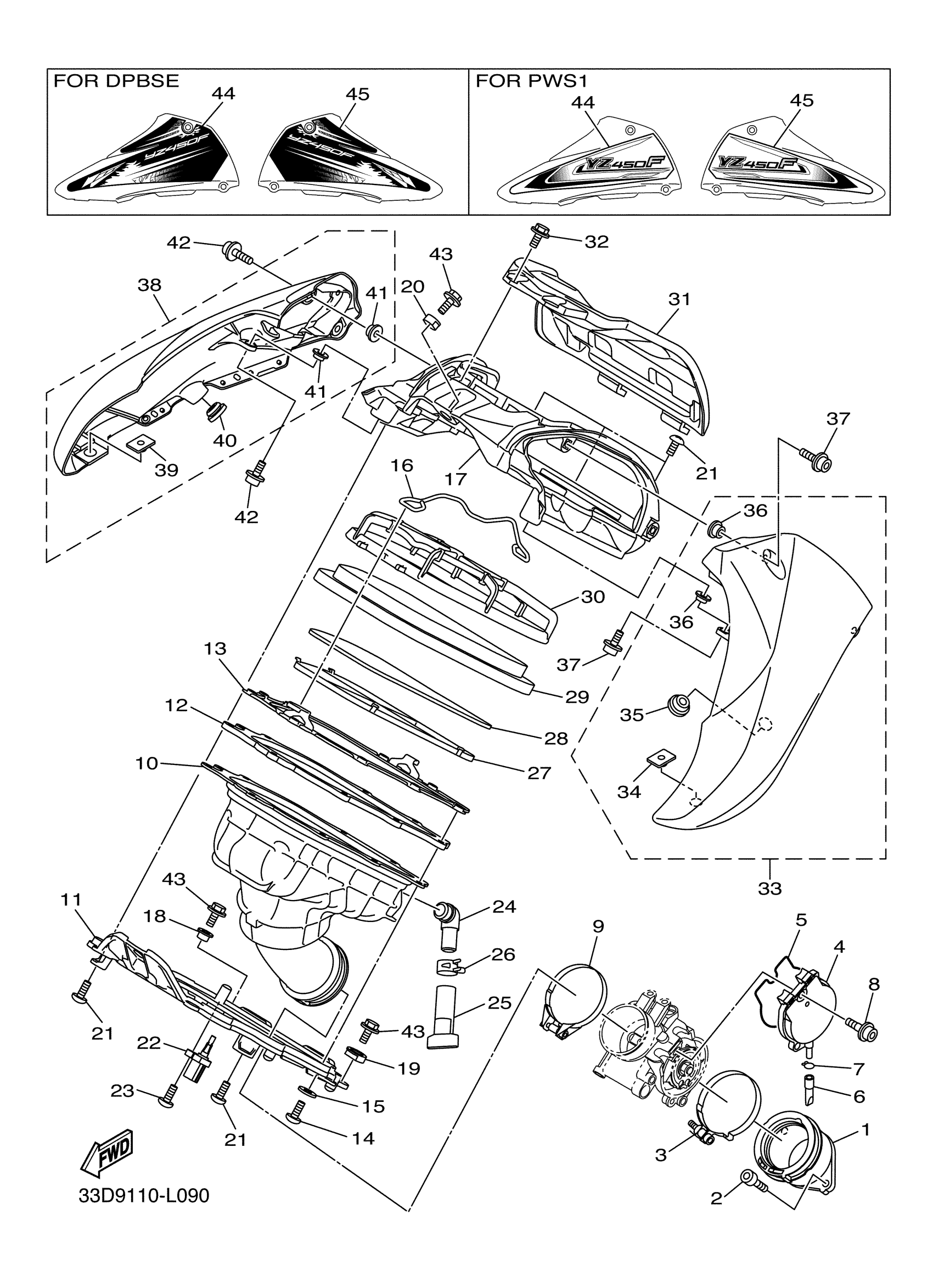

Find the part on the Intake diagram for your 2012 Yamaha YZ450FB (YZ450FBW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha YZ450FB (YZ450FBW) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 3

33D-13597-10-00

1
Out of stock

2

BOLT,SOCKET HEAD

91314-06020-00

1

$2.05

In stock

3

HOSE CLAMP ASSY

90450-60004-00

1

$14.64

In stock

4

COVER 1

33D-14293-00-00

—
Out of stock

5

WASHER

33D-14227-00-00

—
Out of stock

6

HOSE

33D-14987-00-00

—
Out of stock

7

CLIP

3TJ-14137-40-00

1

$6.43

In stock

8

BOLT

33D-14428-00-00

1
Out of stock

9

HOSE CLAMP ASSY

90450-58007-00

1
Out of stock

10

JOINT

33D-14454-00-00

—
Out of stock

11

PLATE

33D-14477-00-00

—
Out of stock

12

SEAL

33D-14462-00-00

1
Out of stock

13

HOLDER, GUIDE

33D-14459-00-00

—
Out of stock

14

BOLT, BUTTON HEAD

92012-04012-00

1
Out of stock

15

WASHER, PLATE

90201-04030-00

1
Out of stock

16

BINDER 1

33D-1441G-00-00

—
Out of stock

17

COVER 1

33D-14417-00-00

—
Out of stock

18

COLLAR

90387-06009-00

—

$7.91

In stock

19

COLLAR

33D-14495-00-00

—
Out of stock

20

COLLAR

33D-14449-00-00

—
Out of stock

21

SCREW, PAN HEAD TAPPING (AK5)

97780-50116-00

—
Out of stock

22

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

—

$49.83

In stock

23

SCREW, PAN HEAD TAPPING (AK5)

97780-50116-00

—
Out of stock

24

PIPE

5TJ-14419-00-00

—

$7.57

In stock

25

PIPE, DRAIN

33D-1443E-00-00

—
Out of stock

26

CLIP(42G)

90467-16098-00

—

$6.82

In stock

27

NET 1

33D-1441B-00-00

—
Out of stock

28

ELEMENT, AIR CLEANER 2

33D-14461-00-00

—
Out of stock

29

ELEMENT, AIR CLEANER

33D-14451-00-00

—
Out of stock

30

GUIDE

33D-14458-00-00

—
Out of stock

31

COVER SUB ASSY

33D-14480-00-00

—
Out of stock

32

BOLT, FLANGE

90105-05028-00

—

$2.63

In stock

33

DUCT

33D-14437-00-00

—
Out of stock

33

DUCT

33D-14437-10-00

—
Out of stock

34

NUT

90179-06055-00

—

$4.48

In stock

35

DAMPER 1

33D-14425-00-00

—
Out of stock

36

COLLAR

90387-06009-00

—

$7.91

In stock

37

BOLT, HEXAGON SOCKET HEAD

90110-06245-00

—

$6.26

In stock

38

DUCT

33D-1443A-00-00

—
Out of stock

38

DUCT

33D-1443A-10-00

—
Out of stock

39

NUT

90179-06055-00

—

$4.48

In stock

40

DAMPER 1

33D-14425-00-00

—
Out of stock

41

COLLAR

90387-06009-00

—

$7.91

In stock

42

BOLT, HEXAGON SOCKET HEAD

90110-06245-00

—

$6.26

In stock

43

BOLT, FLANGE

90105-06170-00

—

$4.23

In stock

44

GRAPHIC, 1

33D-2173E-30-00

1
Out of stock

44

GRAPHIC, 1

33D-2173E-40-00

1
Out of stock

45

GRAPHIC, 2

33D-2173F-30-00

—
Out of stock

45

GRAPHIC, 2

33D-2173F-40-00

1
Out of stock
