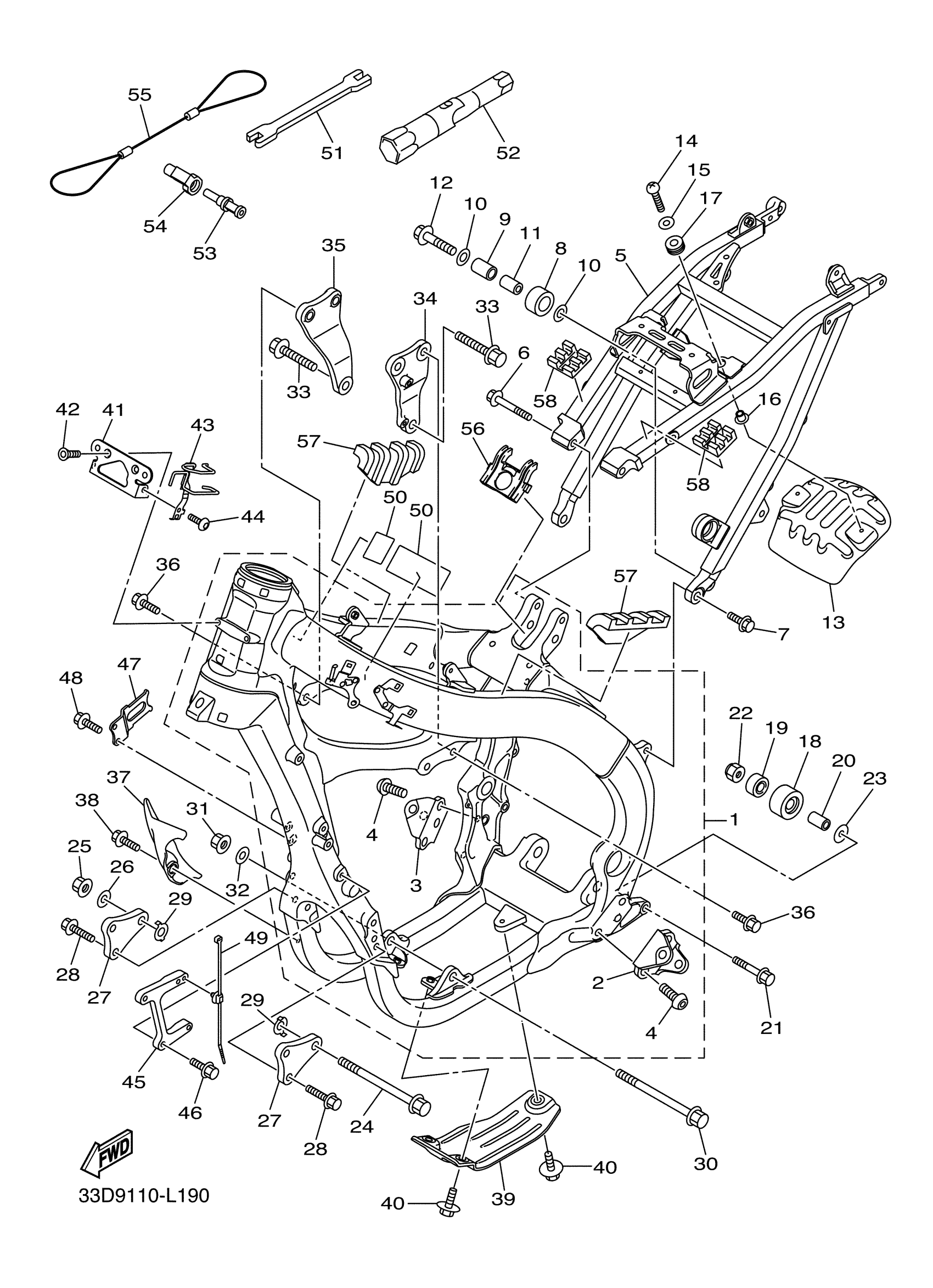

2012 Yamaha YZ450FB (YZ450FBW) Frame Diagram
Find the part on the Frame diagram for your 2012 Yamaha YZ450FB (YZ450FBW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRONT FRAME COMP.
33D-21101-90-00
5
REAR FRAME COMP.
33D-21190-00-00
8
TENSIONER
30X-22178-00-00
13
COVER
33D-2117F-00-00
15
WASHER, PLATE(75J)
90201-05N15-00
17
GROMMET
90480-12025-00
24
BOLT, FLANGE
90105-10193-00
27
BRACKET, FRONT LOWER 1
33D-21417-00-00
29
PLATE, PATCH
5XC-21456-90-00
34
BRACKET, REAR UPPER 1
33D-21425-00-00
35
BRACKET, REAR UPPER 2
33D-21426-00-00
37
PROTECTOR, ENGINE
33D-21471-00-00
39
GUARD, ENGINE 2
33D-2147E-01-00
40
BOLT, WITH WASHER
90119-06146-00
41
BRACKET 10
33D-2116M-00-00
42
SCREW, COUNTERSUNK
90151-06034-00
43
HOLDER, CLUTCH CABLE
33D-21163-00-00
45
STAY, IGNITION COIL
33D-2194U-00-00
47
BRACKET 7
33D-2116J-00-00
50
SEAL
33D-21268-00-00
52
BOX, SPARK PLUG
5TA-2814F-00-00
55
WIRE, HOOK
33D-2814A-00-00
56
DAMPER, LOCATING 1
33D-24181-00-00
57
DAMPER, LOCATING 2
33D-24182-00-00
58
DAMPER, LOCATING 3
33D-24183-00-00
