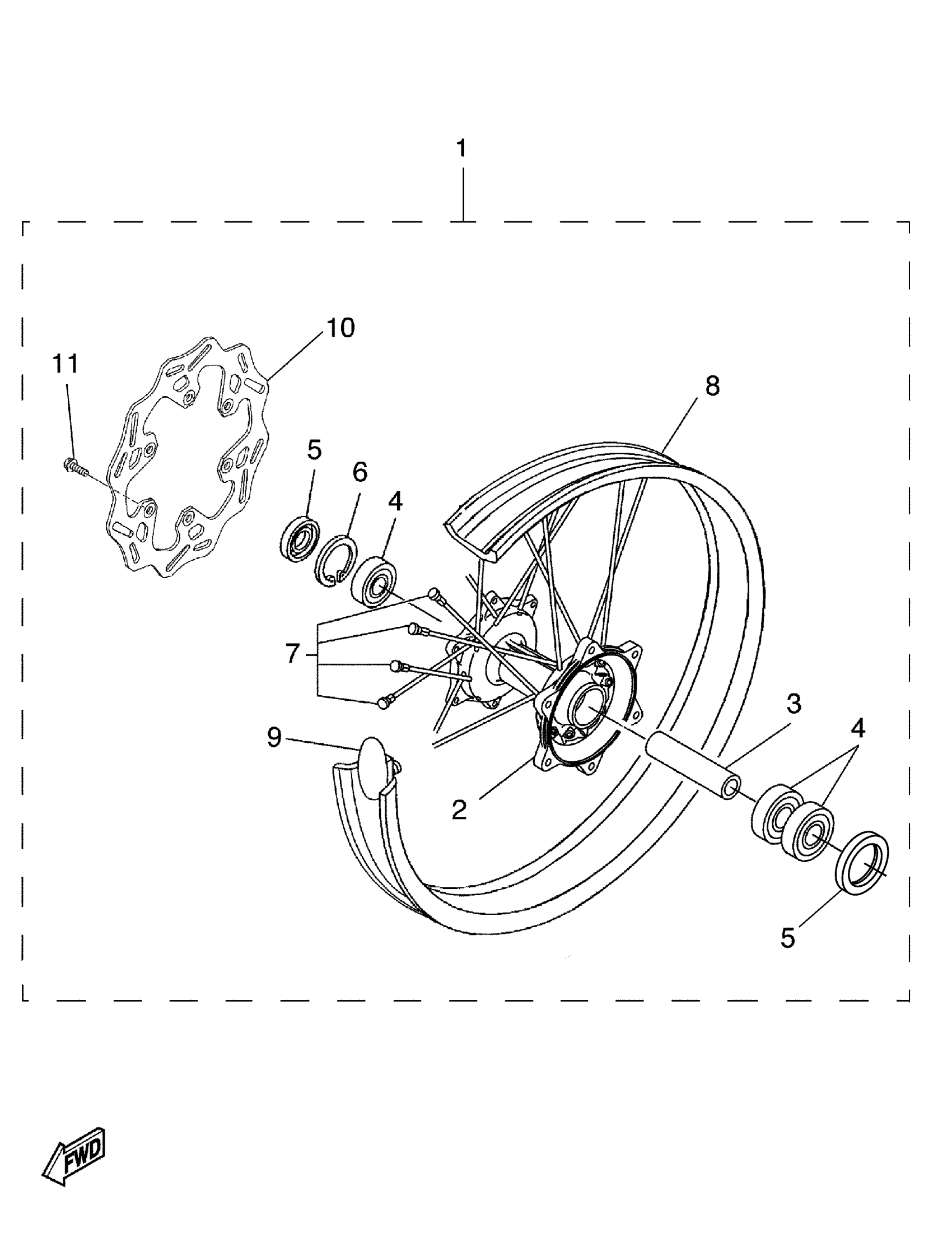

Yamaha YZ450FAL (YZ450F) 33D50 2011 REAR WHEEL KIT Diagram

#

Description
Price

1

REAR WHEEL KIT

33D-W2539-00-00

Unavailable

2

HUB, REAR

17D-25311-00-00

$280.88

3

SPACER, BEARING

17D-25317-00-00

$36.30

4

BEARING

93306-90510-00

$37.04

5

OIL SEAL (697)

93102-32M07-00

$15.23

6

CIRCLIP

99009-42700-00

$5.81

7

SPOKE SET, REAR

34P-25304-00-00

$172.65

8

RIM (2.15-19)

94421-19007-00

Unavailable

9

SPACER, BEAD

3JE-25394-00-00

$31.11

10

DISK, REAR BRAKE 2

B11-2582W-00-00

$161.11

11

BOLT, FLANGE

90105-06157-00

$5.79
