1998 Yamaha YZ400 (YZ400FK) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1998 Yamaha YZ400 (YZ400FK), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

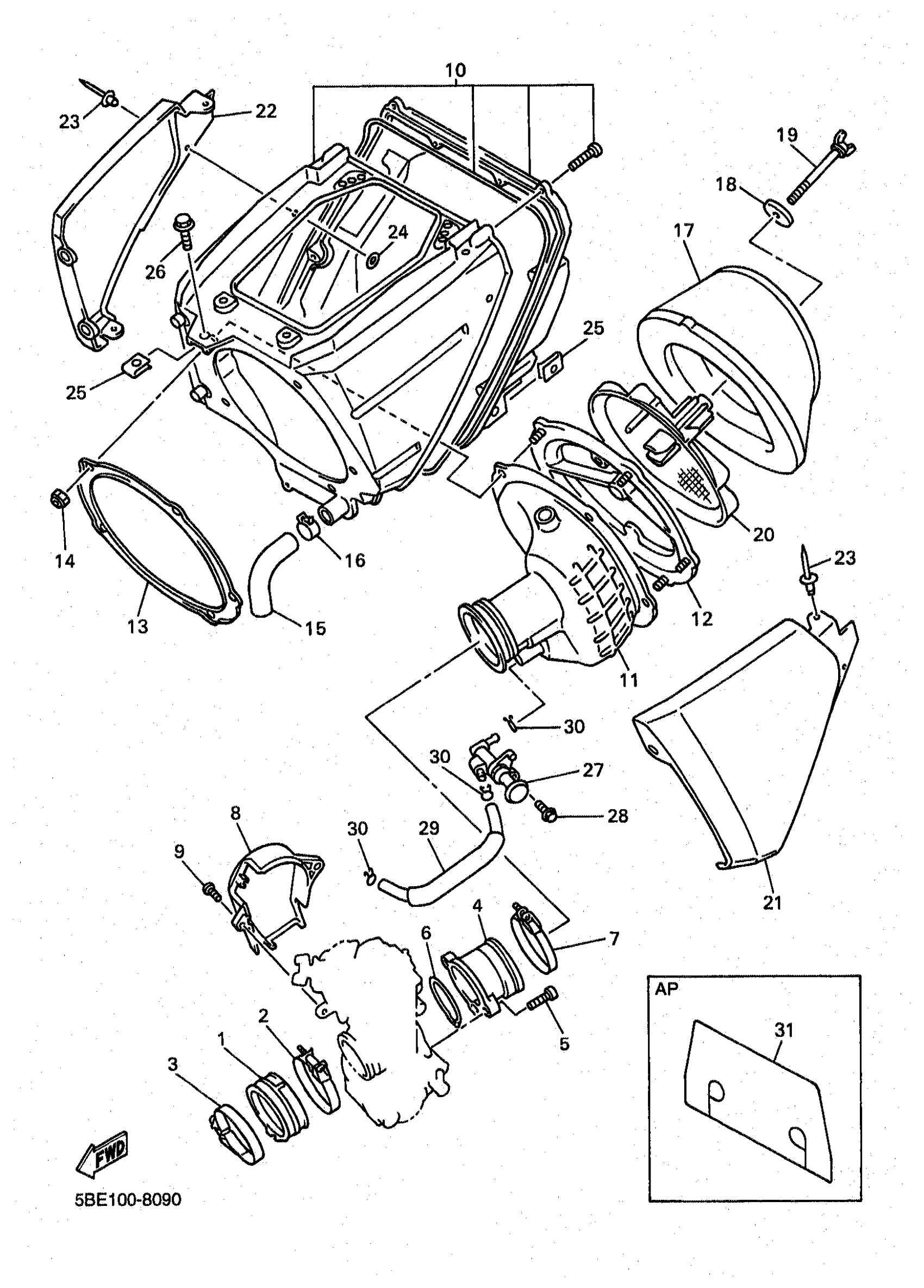

1998 Yamaha YZ400 (YZ400FK) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 3

5BE-13597-01-00

1
Out of stock

2

HOSE CLAMP ASSY

90450-57010-00

1
Out of stock

3

HOSE CLAMP ASSY

90450-62006-00

1

$10.77

In stock

4

JOINT, AIR FILTER 1

5BE-1440F-00-00

1
Out of stock

5

BOLT,SOCKET

91317-05014-00

1

$6.69

In stock

6

O-RING

4FN-14561-00-00

1
Out of stock

7

HOSE CLAMP ASSY

90450-62006-00

1

$10.77

In stock

8

COVER 1

5BE-14293-00-00

1
Out of stock

9

BOLT

90111-06017-00

1
Out of stock

10

AIR CLEANER CASE ASSY

5JG-14401-00-00

1
Out of stock

11

JOINT, AIR CLEANER 1

5BE-14453-00-00

1
Out of stock

12

HOLDER,GUIDE

3JD-14459-01-00

1
Out of stock

13

PLATE

5MV-14477-00-00

1
Out of stock

14

NUT, U

95617-05100-00

1

$6.68

In stock

15

PIPE, DRAIN

5BE-1443E-00-00

—
Out of stock

16

CLIP(3TB)

90467-17128-00

—

$6.68

In stock

17

ELEMENT, AIR CLEANER

4XM-14451-01-00

—

$36.43

In stock

18

WASHER (4H7)

90209-06096-00

—
Out of stock

19

BOLT, WING

90122-06005-00

—

$10.05

In stock

20

GUIDE

5BE-14458-10-00

—
Out of stock

21

COVER, CLEANER CASE 1

5BE-1441A-00-00

1
Out of stock

22

COVER, CLEANER CASE 2

5BE-1441E-00-00

1
Out of stock

23

RIVET (813)

90267-32070-00

—

$2.25

In stock

24

WASHER, PLATE 8077743700

90201-03313-00

—

$5.20

In stock

25

NUT, SPRING (26H)

90183-06023-00

—

$7.45

In stock

26

BOLT, FLANGE(4MY)

95027-06012-00

—

$3.28

In stock

27

VALVE ASSY

5GR-14340-00-00

1
Out of stock

28

BOLT, WASHER BASED(JA9)

90105-06696-00

—

$6.29

In stock

29

PIPE

5BE-14349-00-00

1
Out of stock

30

CLIP

90467-090A2-00

—

$2.51

In stock

31

COVER 1

5BE-14417-00-00

1
Out of stock
