Partiron

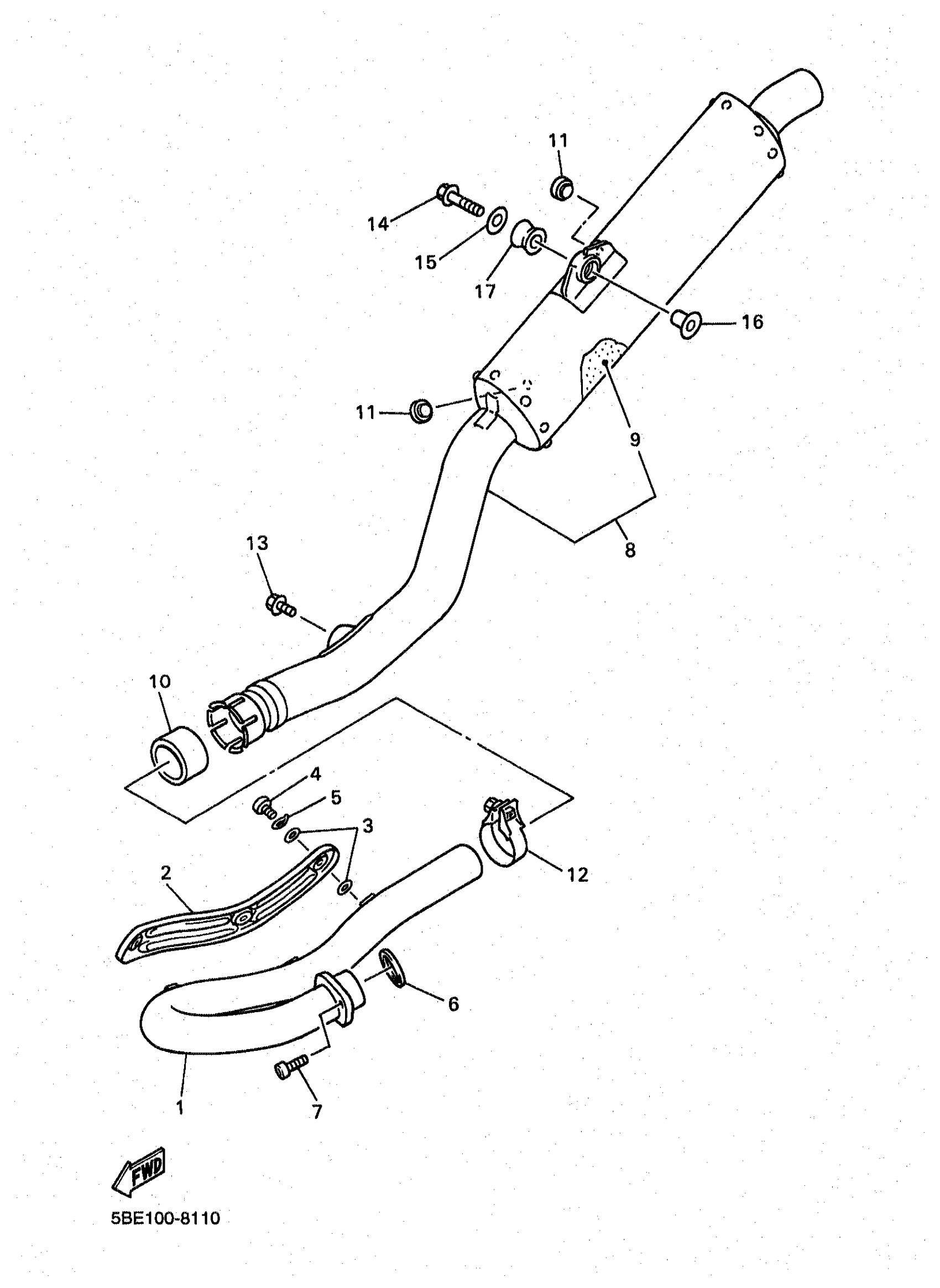

Yamaha YZ400FK (YZ400) 1998 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

5BE-14611-00-00

Unavailable

2

PROTECTOR, EXHAUST PIPE

5BE-14628-00-00

Unavailable

3

WASHER, PROTECTOR

4BD-14766-00-00

$5.12

4

SCREW, BIND(2TV)

98980-06008-00

$0.58

5

WASHER, WAVE(3RW)

90206-06090-00

$4.89

6

GASKET, EXHAUST PIPE

3VD-14613-01-00

$9.15

7

BOLT, SOCKET

91317-08020-00

$2.19

8

SILENCER, EXHAUST

5BE-14753-00-00

Unavailable

9

. FIBER

5BE-1469A-00-00

Unavailable

10

GASKET, MUFFLER

3GW-14714-00-00

$29.23

11

DAMPER, LOCATING 1

22W-24181-00-00

$5.37

12

BAND, SILENCER

5BE-14788-00-00

$28.39

13

BOLT, FLANGE

95817-08012-00

$3.71

14

BOLT, FLANGE(6TA)

95817-08030-00

$5.75

15

WASHER, PLATE(8AT)

90201-081R9-00

$5.90

16

COLLAR

90387-08081-00

Unavailable

17

DAMPER, MUFFLER

5BE-14747-00-00

Unavailable
