1979 Yamaha YZ400F (YZ400F) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1979 Yamaha YZ400F (YZ400F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

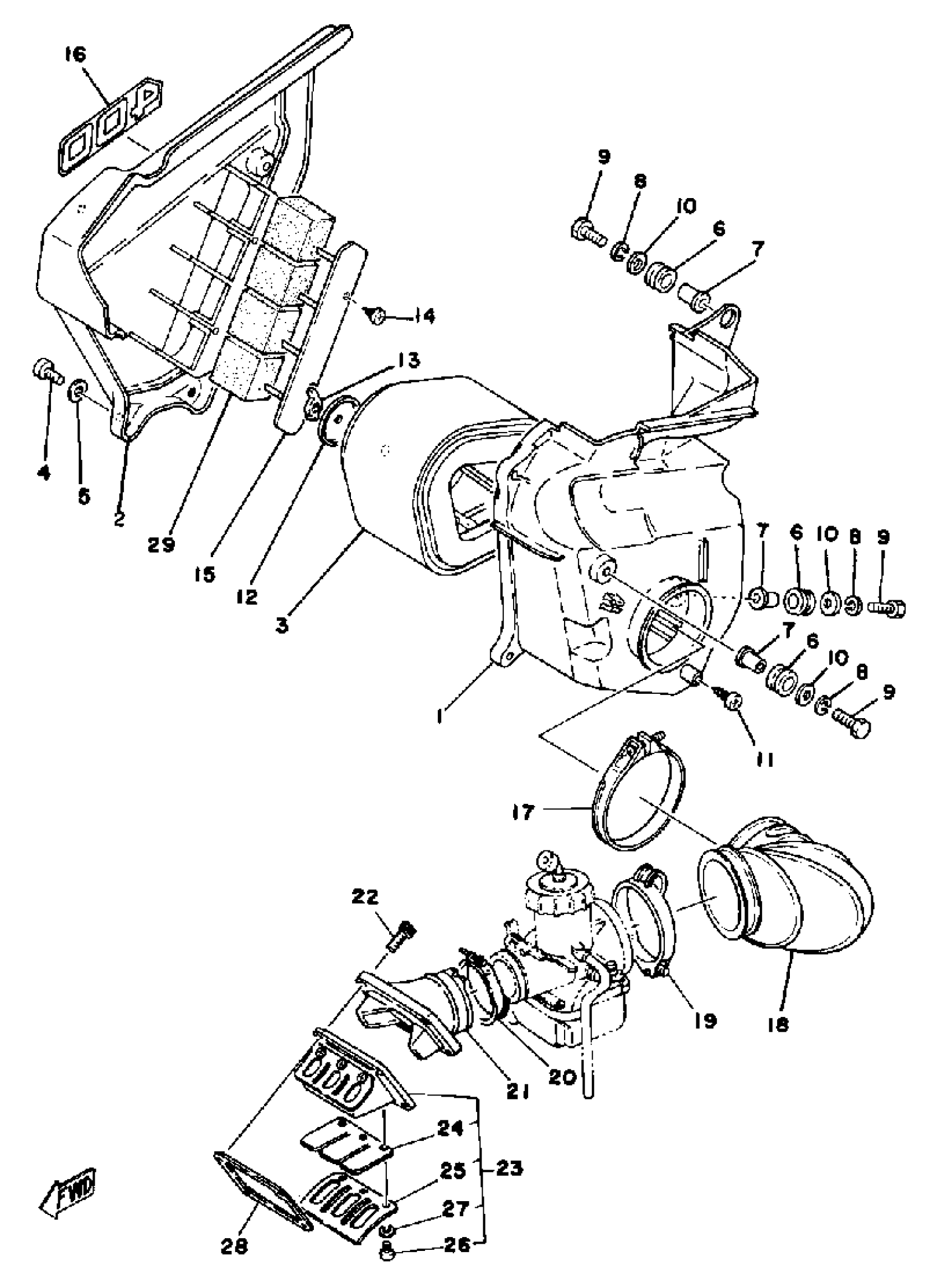

1979 Yamaha YZ400F (YZ400F) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, AIR CLEANER 1

(2X4-14411-00-00)

1
Out of stock

2

CAP, CLEANER CASE 1

2X4-14412-02-00

1
Out of stock

3

ELEMENT ASSEMBLY

2X4-14450-00-00

1
Out of stock

4

SCREW, PAN

98507-06014-00

1

$6.18

In stock

5

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

6

GROMMET 839774310000

90480-14023-00

1

$4.74

In stock

7

COLLAR 437216330000

90387-07391-00

—

$7.74

In stock

8

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

9

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

10

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

11

SCREW, TAPPING

(90163-06001-00)

1
Out of stock

12

PLATE, ELEMENT FTNG

2X4-14468-00-00

1
Out of stock

13

NUT, WING (646)

90175-06008-00

1

$1.88

In stock

14

SCREW, OVAL HEAD TAPPING

97780-40112-00

1
Out of stock

15

PLATE

(2X4-14477-10-00)

1
Out of stock

16

EMBLEM

(2X5-21737-00-00)

1
Out of stock

17

CLAMP, HOSE(59V)

90460-85277-00

—

$12.62

In stock

18

JOINT, AIR CLNR 1

(2X5-14453-00-00)

1
Out of stock

19

CLAMP, HOSE

90460-68231-00

1
Out of stock

20

CLAMP, HOSE

90460-51109-00

1
Out of stock

21

JOINT, CARBURETOR

2K7-13565-00-00

1
Out of stock

22

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

23

REED VALVE ASSEMBLY

2X5-13610-00-00

1
Out of stock

24

. REED, VALVE

2K7-13613-00-00

1
Out of stock

25

. STOPPER, REED VALVE

2X5-13616-00-00

1
Out of stock

26

SCREW, PAN HEAD (J10)

98580-03008-00

—

$2.23

In stock

27

WASHER, SPRING

92990-03100-00

—

$6.17

In stock

28

GASKET, VALVE SEAT

80L-13621-01-00

—

$9.80

In stock

29

ELEMENT, AIR CLNR 2

(2X4-14461-00-00)

1
Out of stock
