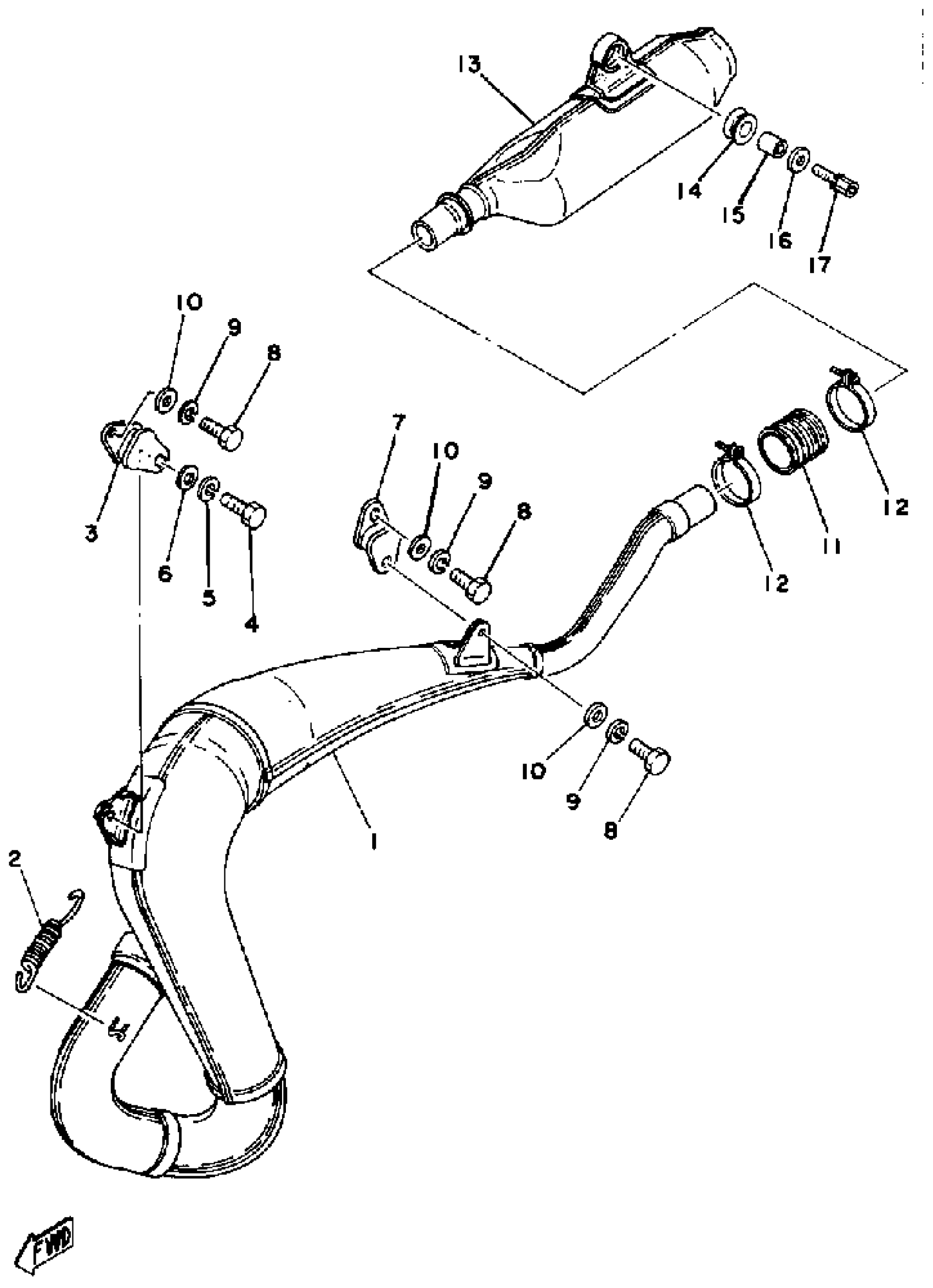

Yamaha YZ400F (YZ400F) 1979 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY L

(2X5-14610-01-00)

Unavailable

2

SPRING, TENSION (1W4)

90507-20030-00

$11.73

3

STAY, MUFFLER 2

483-14781-03-00

Unavailable

4

BOLT, HEXAGON

97013-08020-00

$1.43

5

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

6

.. WASHER, PLATE

92990-08600-00

$2.17

7

STAY, MUFFLER 1

565-14771-01-00

$15.57

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

9

WASHER, SPRING

92995-06100-00

$2.95

10

WASHER, PLAIN (646)

92990-06600-00

$1.84

11

GASKET, MUFFLER JOINT

1M1-14714-00-00

Unavailable

12

CLAMP, HOSE (5H0)

90460-43179-00

$15.59

13

SILENCER, EXHAUST

2X5-14753-00-00

Unavailable

14

DAMPER

565-14747-00-00

Unavailable

15

COLLAR (437)

90387-08258-00

$8.55

16

WASHER, PLATE(8AT)

90201-081R9-00

Unavailable

17

BOLT, HEXAGON (2X4)

90109-08512-00

Unavailable
