1976 Yamaha YZ400C_D_E (YZ400C) Intake YZ400D E Diagram

← All diagrams

Find the part on the Intake YZ400D E diagram for your 1976 Yamaha YZ400C_D_E (YZ400C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

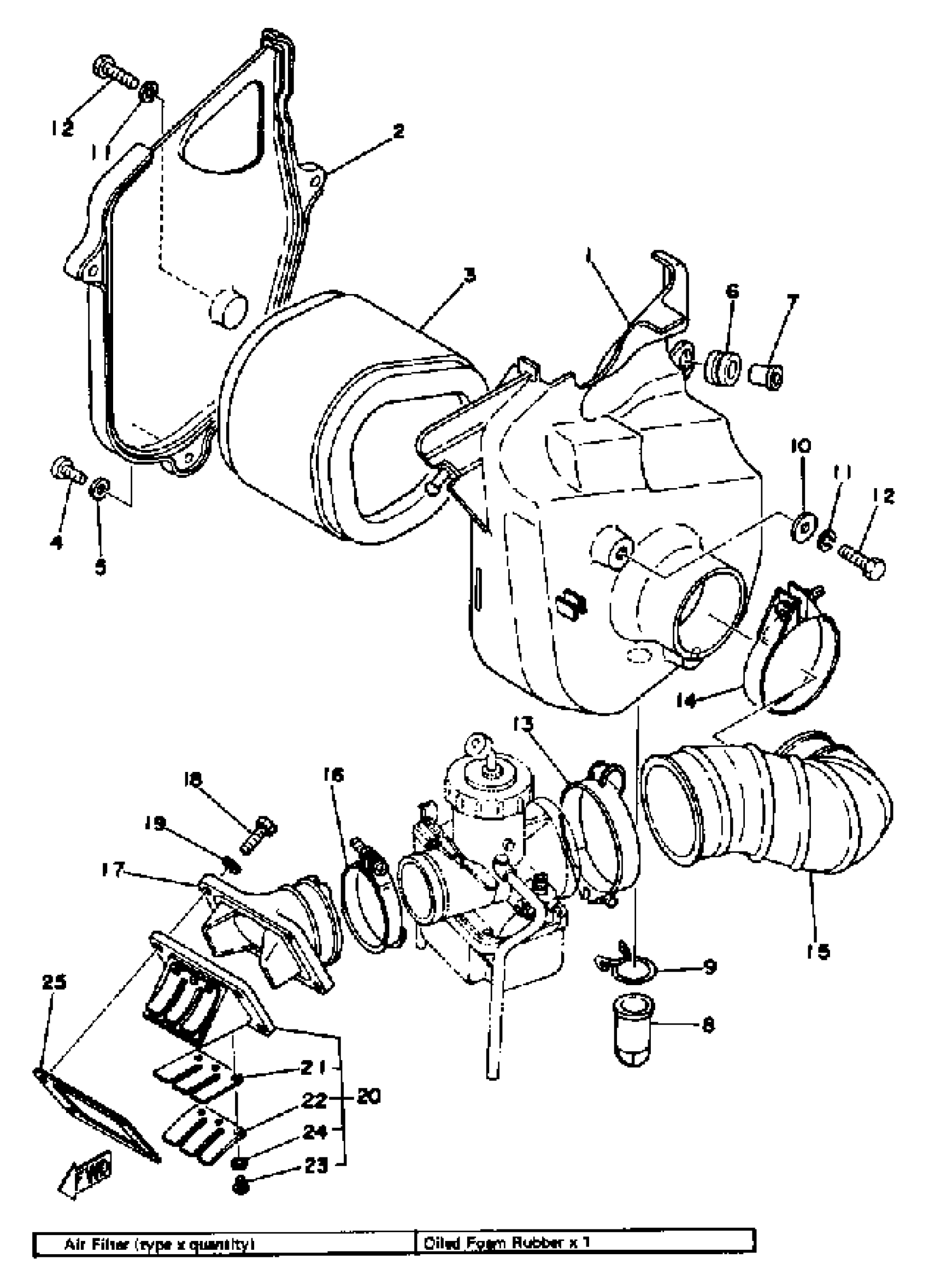

1976 Yamaha YZ400C_D_E (YZ400C) Intake YZ400D E Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, AIR CLEANER 1

1W4-14411-00-00

1
Out of stock

2

CAP, CLEANER CASE 1

1W4-14412-00-00

1
Out of stock

3

ELEMENT, AIR CLNR.

1W4-14451-00-00

1
Out of stock

4

SCREW, PAN

98507-06014-00

1

$6.18

In stock

5

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

6

GROMMET 839774310000

90480-14023-00

1

$4.74

In stock

7

COLLAR 437216330000

90387-07391-00

—

$7.74

In stock

8

SEAL

1W4-14457-00-00

1
Out of stock

9

CLIP

90467-20M15-00

1

$6.23

In stock

10

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

11

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

12

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

13

CLAMP, HOSE

90460-68231-00

1
Out of stock

14

CLAMP, HOSE (90460-71017)

90460-71129-00

1
Out of stock

15

JOINT, AIR CLNR 1

1W4-14453-00-00

1
Out of stock

16

CLAMP, HOSE

90460-51109-00

1
Out of stock

17

JOINT, CARBURETOR

1W4-13565-00-00

1
Out of stock

18

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

REED VALVE ASSEMBLY

(431-13610-01-00)

1
Out of stock

21

. REED, VALVE

363-13613-00-00

1
Out of stock

22

. STOPPER, REED VALVE

363-13616-00-00

1
Out of stock

23

SCREW, PAN HEAD (J10)

98580-03008-00

—

$2.23

In stock

24

WASHER, SPRING

92990-03100-00

—

$6.17

In stock

25

GASKET, MANIFOLD

8Y7-13556-01-00

—

$6.92

In stock
