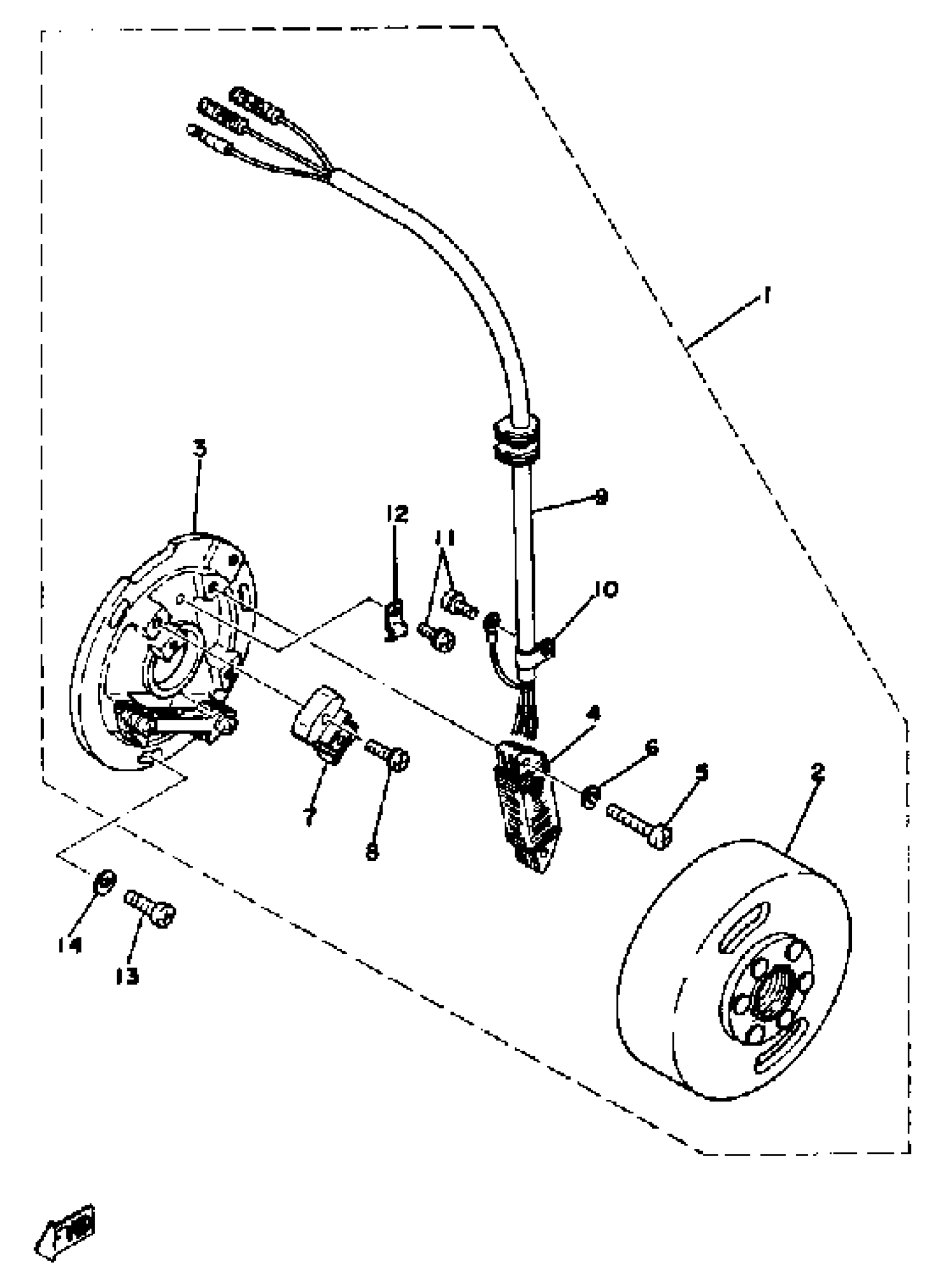

Yamaha YZ400C (YZ400C_D_E) 1976 CDI MAGNETO YZ400D E Diagram

CDI MAGNETO ASSEMBLY

(1W4-85500-20-00)

Unavailable

ROTOR ASSEMBLY

(1W4-85550-20-00)

Unavailable

. BASE, MAGNETO

1M2-85509-20-00

Unavailable

. COIL SOURCE 2

1W4-85512-20-00

Unavailable

SCREW, PANHEAD (A93)

98580-05525-00

$1.43

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

. COIL, PULSER

1M2-85580-20-00

Unavailable

SCREW, PAN HEAD

98517-04025-00

$2.75

LEAD WIRE ASSEMBLY

(1W4-85515-20-00)

Unavailable

CLAMP, LEAD

104-81328-20-00

$3.85

SCREW, PAN HEAD(3XP)

98517-04006-00

$3.86

CLAMP, LEAD

(445-85528-20-00)

Unavailable

SCREW PAN HEAD

98580-06020-00

$4.89

WASHER, PLAIN (646)

92990-06600-00

$1.84
