1975 Yamaha YZ250B_360B (YZ360B) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1975 Yamaha YZ250B_360B (YZ360B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

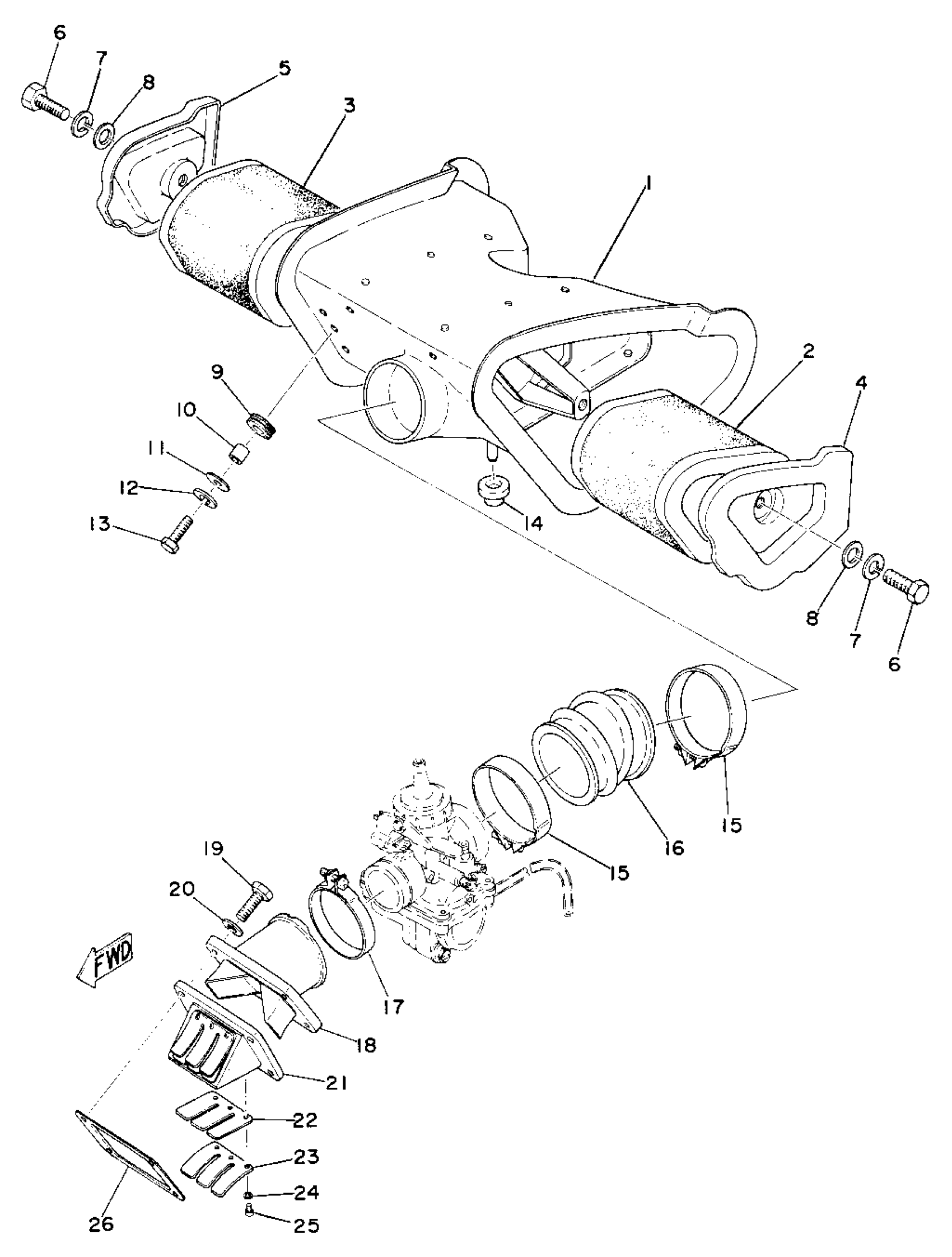

1975 Yamaha YZ250B_360B (YZ360B) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, AIR CLEANER 1 001

(483-14411-02-00)

1
Out of stock

1

CASE, AIR CLEANER 1 000

(484-14411-01-00)

1
Out of stock

2

ELEMENT, AIR CLNR

(483-14451-00-00)

1
Out of stock

3

ELEMENT, AIR CLNR 2

(483-14461-00-00)

1
Out of stock

4

CAP, CLEANER CASE 1

(483-14412-00-00)

1
Out of stock

5

CAP, CLEANER CASE 2

(483-14422-00-00)

1
Out of stock

6

SCREW, PAN HEAD(62J)

97885-06012-00

1
Out of stock

7

WASHER, SPRING

92995-06100-00

1
Out of stock

8

YBS66-6 WASHER, PLAIN

92990-06200-00

1
Out of stock

9

GROMMET 839774310000

90480-14023-00

1
Out of stock

10

COLLAR (J10)

90387-06026-00

1
Out of stock

11

WASHER, PLATE

90201-06380-00

1
Out of stock

12

WASHER, SPRING

92995-06100-00

1
Out of stock

13

BOLT, HEXAGON

97017-06025-00

1
Out of stock

14

BUSH, SPEC''L RUBBER

(90385-13018-00)

1
Out of stock

15

CLAMP, HOSE

(90460-61064-00)

1
Out of stock

16

JOINT, AIR CLNR 1

(483-14453-00-00)

1
Out of stock

17

CLAMP HOSE 278144550000

90460-49058-00

—
Out of stock

18

MANIFOLD, INTAKE

(431-13555-01-00)

1
Out of stock

19

BOLT, HEXAGON

97017-06020-00

—
Out of stock

20

WASHER, SPRING

92995-06100-00

1
Out of stock

21

REED VALVE ASSEMBLY

(431-13610-01-00)

1
Out of stock

22

. REED, VALVE

363-13613-00-00

1
Out of stock

23

. STOPPER, REED VALVE

363-13616-00-00

1
Out of stock

24

WASHER, SPRING

92990-03100-00

—
Out of stock

25

SCREW, PAN HEAD (J10)

98580-03008-00

—
Out of stock

26

GASKET, MANIFOLD

8Y7-13556-01-00

—
Out of stock
