1975 Yamaha YZ250B_360B (YZ360B) Electrical Diagram

← All diagrams

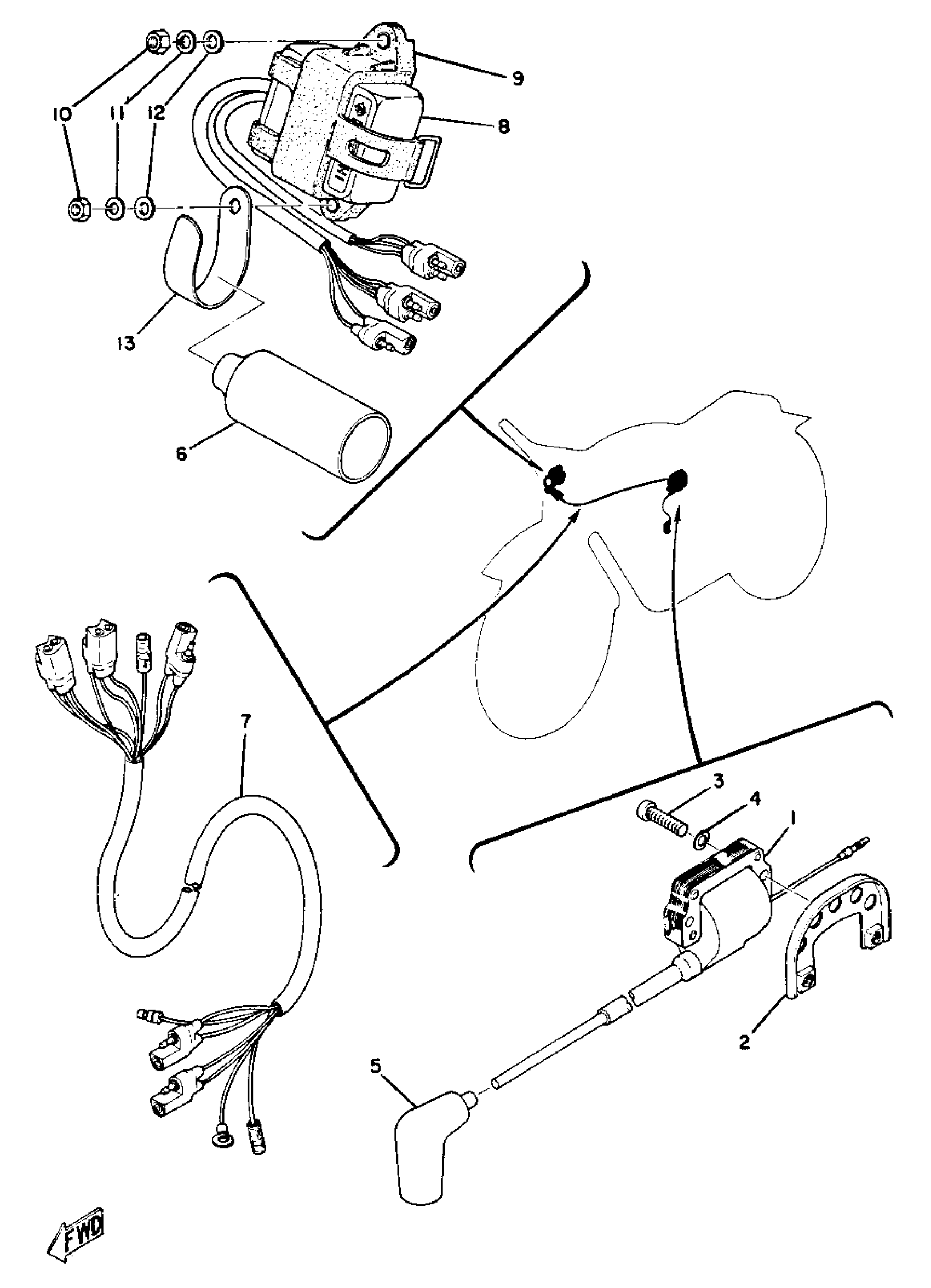

Find the part on the Electrical diagram for your 1975 Yamaha YZ250B_360B (YZ360B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Yamaha YZ250B_360B (YZ360B) Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITION COIL ASSEMBLY

322-82310-10-00

1
Out of stock

2

BRACKET, IGN COIL

(483-82316-01-00)

1
Out of stock

3

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

4

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

5

PLUG CAP ASSEMBLY

294-82370-00-00

1
Out of stock

6

COVER, CONNECTER

(256-82599-00-00)

1
Out of stock

7

LEAD WIRE ASSEMBLY

(483-85515-01-00)

1
Out of stock

8

CDI UNIT ASSEMBLY

364-85540-13-00

1
Out of stock

9

BAND

(483-85546-00-00)

1
Out of stock

10

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

11

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

12

WASHER, PLATE

90201-06M08-00

1
Out of stock

13

HOLDER

(483-85548-00-00)

1
Out of stock
