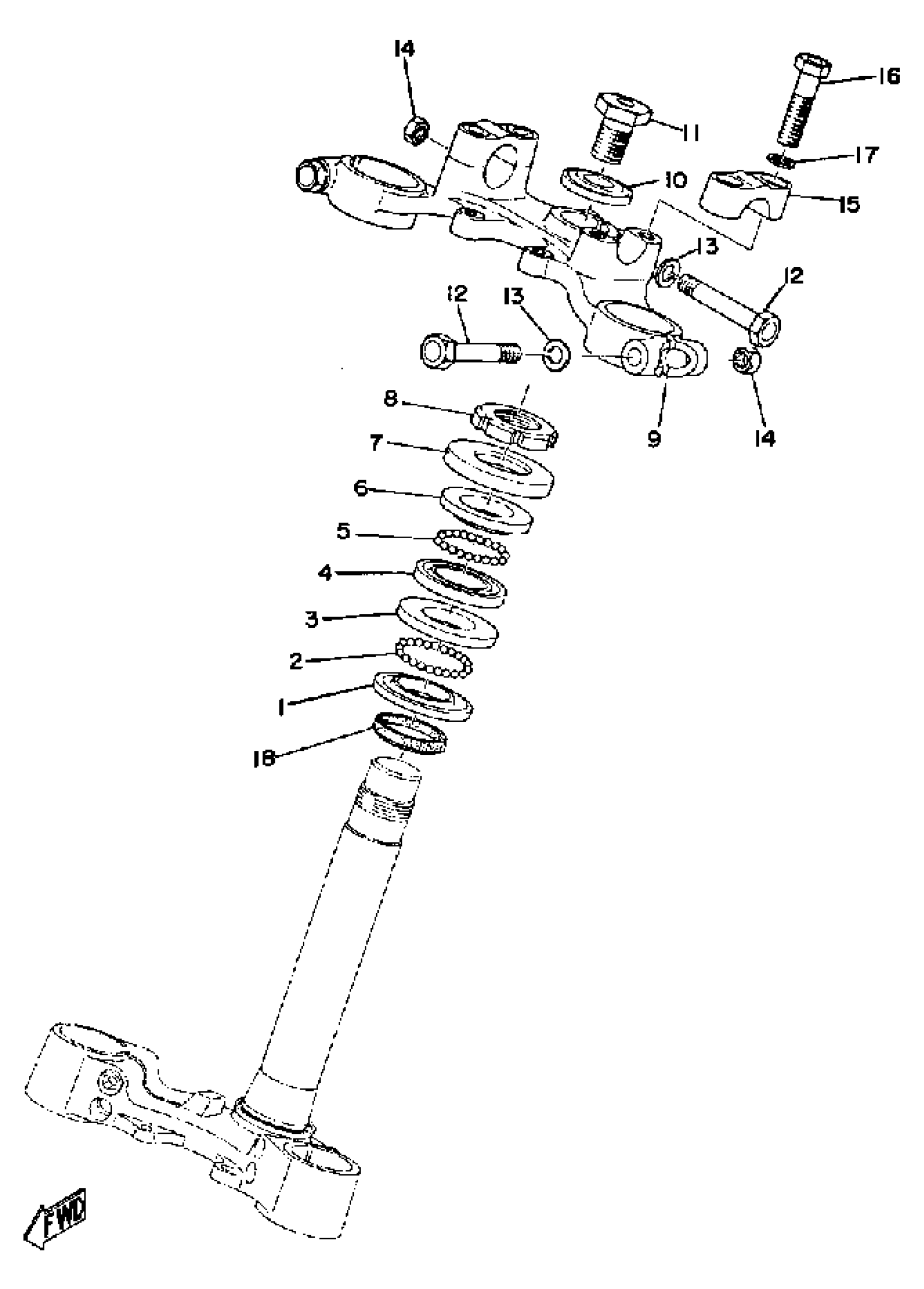

Yamaha YZ360A (YZ250A_360A) 1974 STEERING Diagram

#

Description
Price

1

RACE, BALL 1

B6E-23411-00-00

$6.54

2

BALL

93501-04011-00

$5.84

3

RACE, BALL 2

B6E-23412-00-00

$9.05

4

RACE, BALL 2

BP2-23412-00-00

$5.33

5

BALL

93503-16003-00

$1.96

6

RACE, BALL 1

BP2-23411-00-00

$7.83

7

COVER, BALL RACE

122-23416-00-00

$5.98

8

NUT, SPEC''L SHAPE

(90179-25008-00)

Unavailable

9

CROWN, HANDLE

(431-23435-00-00)

Unavailable

10

WASHER, SPECIAL SHAPE

90209-14022-00

Unavailable

11

BOLT

(90109-14177-00)

Unavailable

12

BOLT, HEXAGON

97013-08055-00

$3.02

13

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

14

. NUT

95380-08700-00

$3.05

15

HOLDER, HANDLE UPPER

401-23441-00-98

Unavailable

16

BOLT

97013-08035-00

Unavailable

17

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

18

SEAL, DUST

164-23462-00-00

Unavailable
