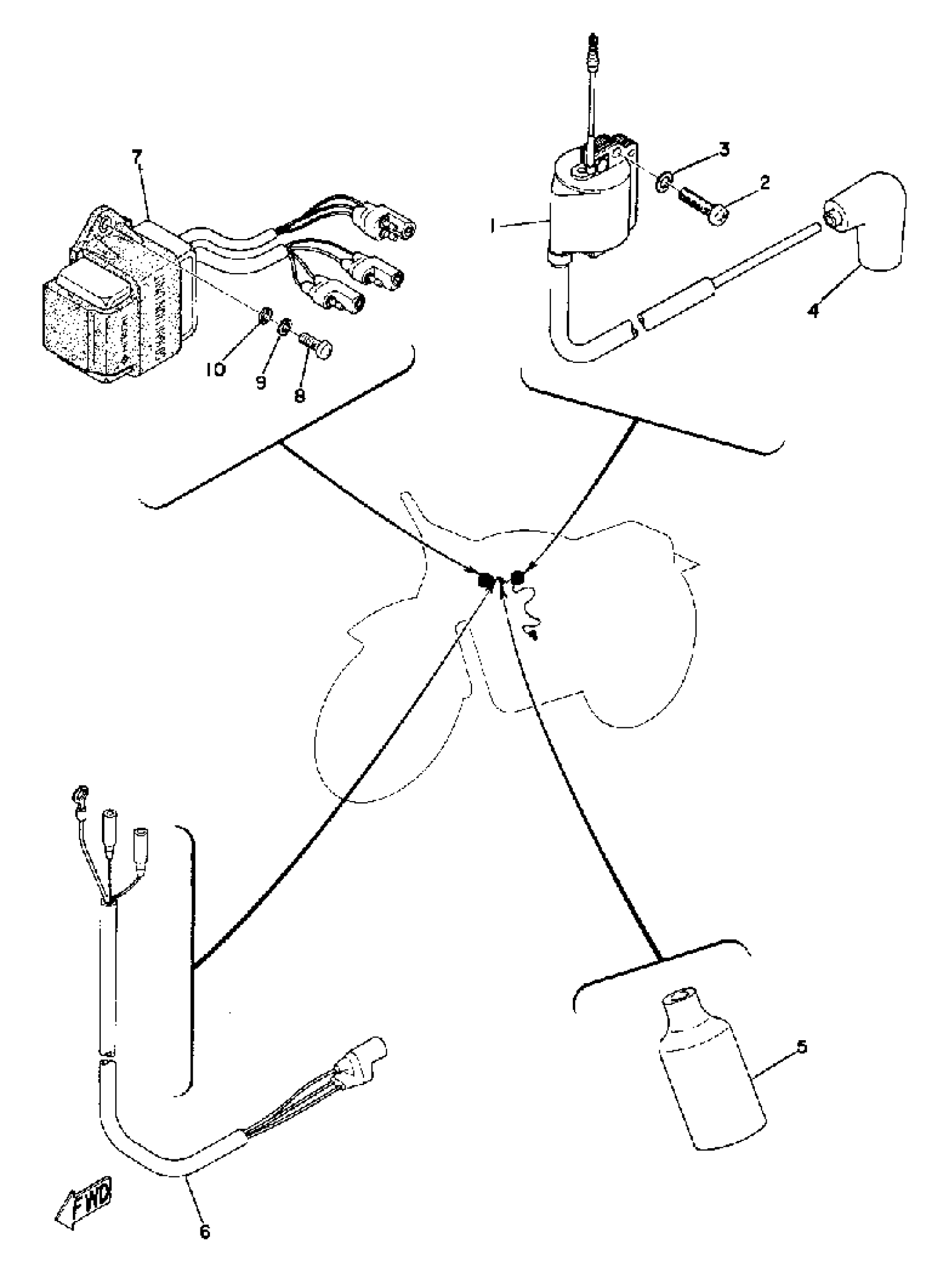

Yamaha YZ360A (YZ250A_360A) 1974 ELECTRICAL Diagram

#

Description

Price

1

IGNITION COIL ASSEMBLY

322-82310-10-00

Unavailable

2

SCREW, PAN HEAD (76T)

98517-06025-00

$2.90

3

WASHER, SPRING

92995-06100-00

$2.95

4

PLUG CAP ASSEMBLY

294-82370-00-00

Unavailable

5

COVER, CONNECTER

(256-82599-00-00)

Unavailable

6

WIRE, SUB LEAD

(431-85517-00-00)

Unavailable

7

CDI UNIT ASSEMBLY

364-85540-13-00

Unavailable

8

SCREW, PAN HEAD (76T)

98517-06025-00

$2.90

9

WASHER, SPRING

92995-06100-00

$2.95

10

WASHER, PLATE

90201-06M08-00

$2.16
