1990 Yamaha YZ250WRA (YZ250WRA) Generator Diagram

← All diagrams

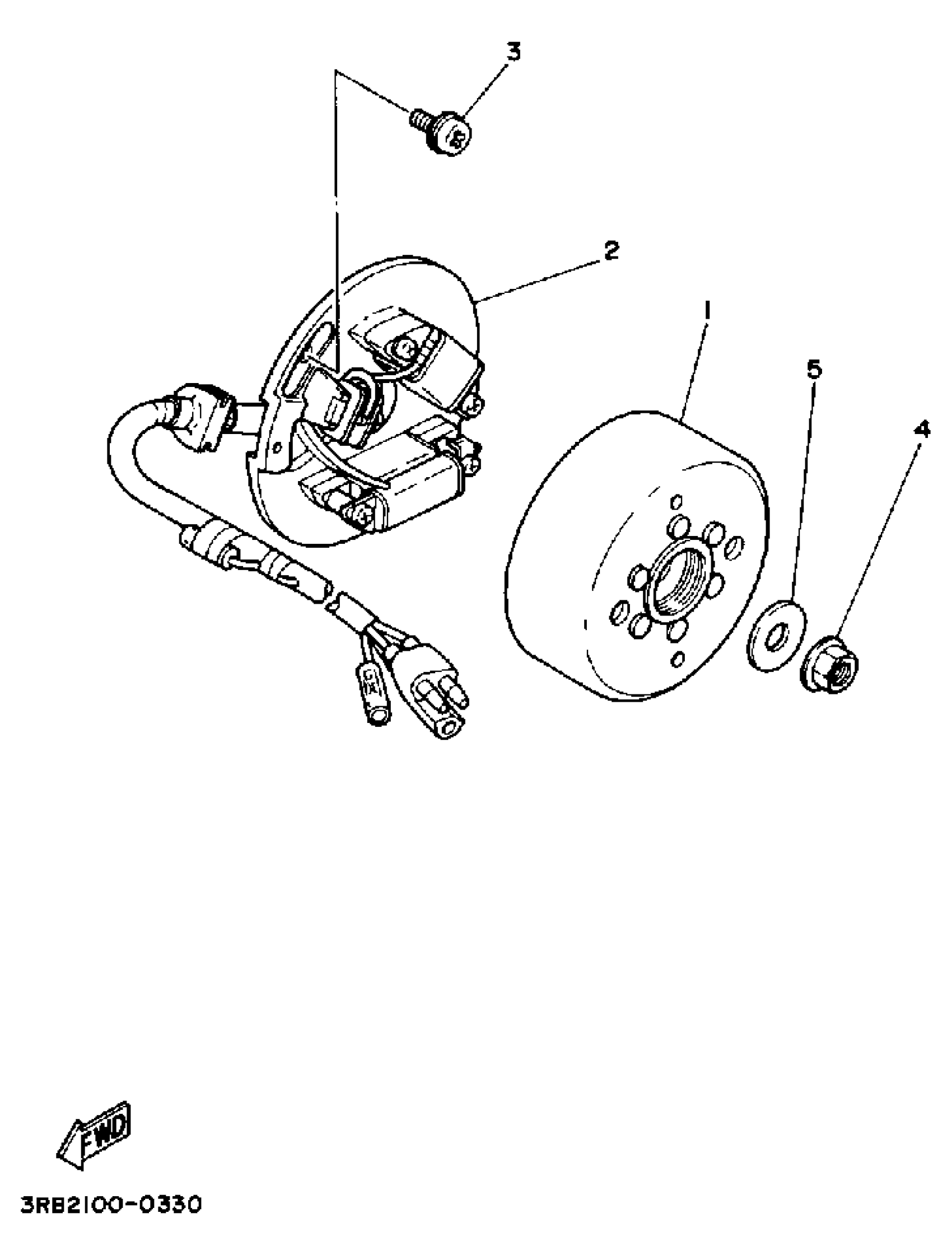

Find the part on the Generator diagram for your 1990 Yamaha YZ250WRA (YZ250WRA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha YZ250WRA (YZ250WRA) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROTOR ASSEMBLY

3SP-85550-10-00

1
Out of stock

2

BASE ASY

3RB-85560-11-00

1
Out of stock

3

SCREW 256241430000

90149-06011-00

1

$1.58

In stock

4

NUT (22F)

90179-10394-00

1

$8.31

In stock

5

WASHER, PLATE (3L6)

90201-10774-00

1

$6.25

In stock
