1990 Yamaha YZ250WRA (YZ250WRA) Frame Diagram

← All diagrams

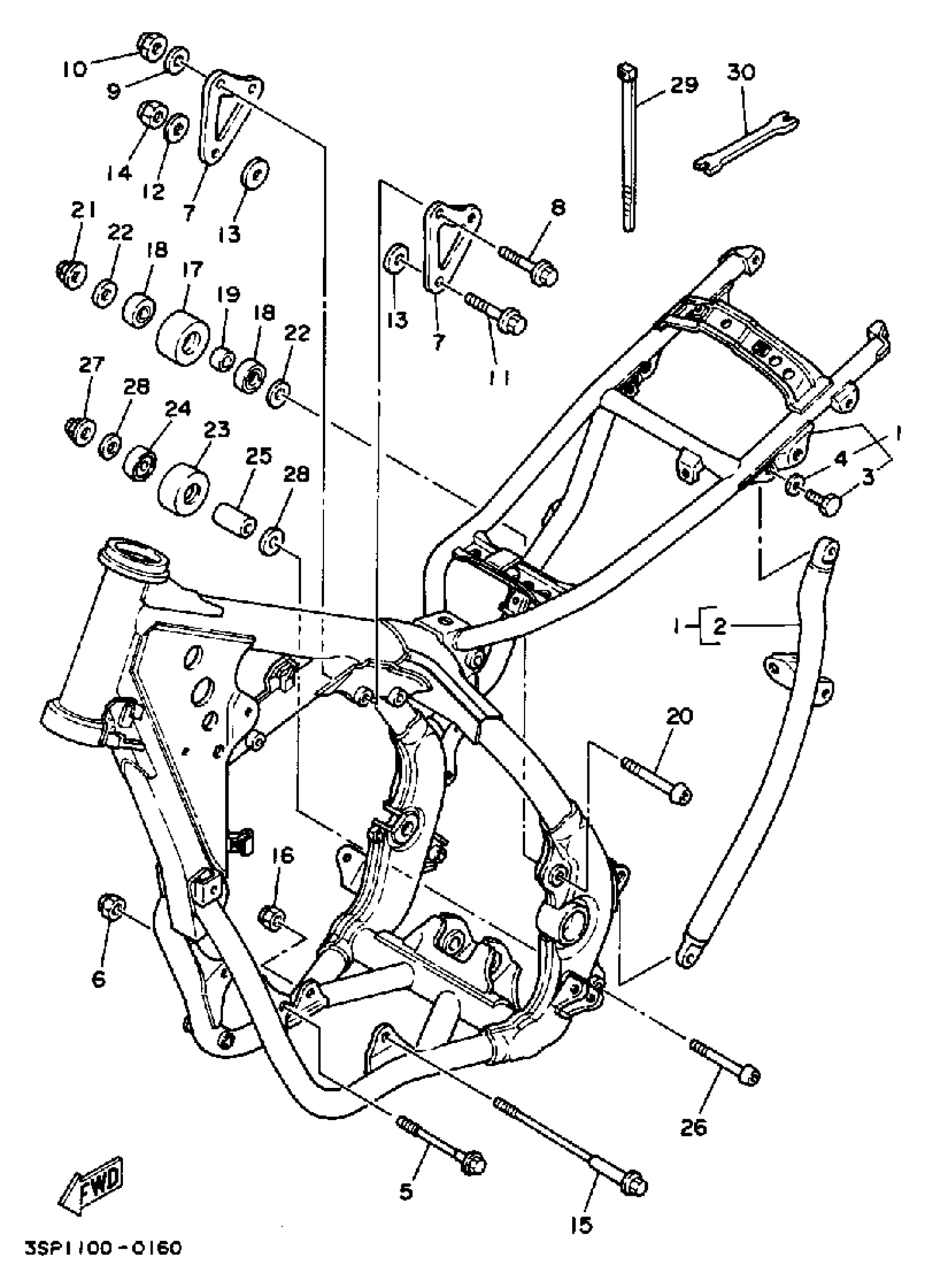

Find the part on the Frame diagram for your 1990 Yamaha YZ250WRA (YZ250WRA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha YZ250WRA (YZ250WRA) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP

3SP-21110-00-UJ

1
Out of stock

2

. BACK, STAY (LH)

3JD-21123-01-UJ

1
Out of stock

3

BOLT, HEXAGON (3L6)

90101-08461-00

1

$3.66

In stock

4

WASHER, PLATE (7R4)

90201-080E2-00

1

$2.89

In stock

5

BOLT, WASHER BASED

90105-08592-00

1
Out of stock

6

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

7

BRACKET, REAR UPPER 1

3SP-21425-00-00

1
Out of stock

8

BOLT, FLANGE

95817-08055-00

1

$2.82

In stock

9

WASHER 6464313202

90202-08022-00

1

$3.56

In stock

10

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

11

BOLT, FLANGE(87Y)

95817-10055-00

1

$4.54

In stock

12

1

$3.00

In stock

13

WASHER, PLATE(47X)

90201-101J1-00

1

$6.17

In stock

14

NUT, SELF-LOCKING

90185-10170-00

1

$7.98

In stock

15

BOLT, WASHER BASED(3RB)

90105-10733-00

1
Out of stock

16

NUT, SELF-LOCKING(JN5)

95607-10200-00

—

$3.32

In stock

17

TENSIONER

3JD-22178-00-00

1
Out of stock

18

BEARING (3X3)

93300-60804-00

—

$11.18

In stock

19

COLLAR(1HX)

90387-087K5-00

—

$7.46

In stock

20

BOLT, BUTTON

92017-08070-00

—

$6.23

In stock

21

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

22

WASHER, PLATE(3XP)

90201-086P8-00

—

$4.35

In stock

23

TENSIONER

3JD-22178-20-00

—

$37.74

In stock

24

BEARING (3X3)

93300-60804-00

—

$11.18

In stock

25

COLLAR(1NL)

90387-086N4-00

—

$8.31

In stock

26

BOLT, BUTTON

92017-08070-00

—

$6.23

In stock

27

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

28

WASHER, PLATE(3XP)

90201-086P8-00

—

$4.35

In stock

29

BAND

1UA-82591-00-00

—
Out of stock

30

WRENCH, HEXAGON

56A-28166-00-00

1
Out of stock
