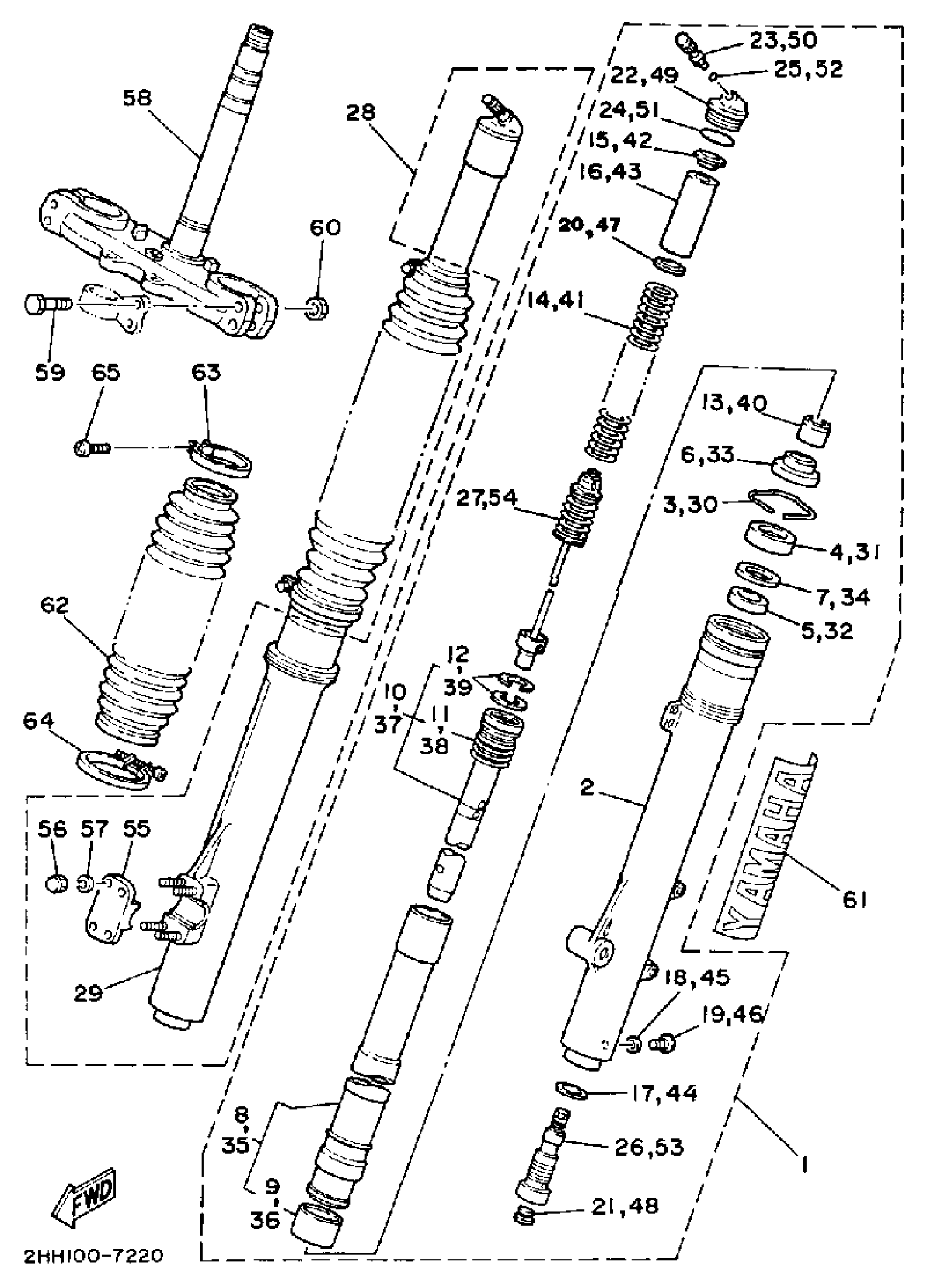

Yamaha YZ250T (YZ250T) 1987 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY L (LH)

2HH-23102-L0-00

Unavailable

2

. TUBE, OUTER 1

2HH-23126-L0-00

Unavailable

3

RING, SNAP

4V4-23153-L0-00

$9.99

4

OIL SEAL

23X-23145-L0-00

$32.99

5

METAL, SLIDE 1

5EB-23125-00-00

$32.99

6

SEAL, DUST

23X-23144-L0-00

$27.99

7

WASHER

4V4-23146-L0-00

$6.99

8

. INNER TUBE 1

2HH-23110-L0-00

Unavailable

9

. PISTON, FRONT FORK

4V4-23171-L0-00

Unavailable

10

. CYLINDER, FRT FORK

2HH-23170-L0-00

Unavailable

11

.. SPRING, SUB

2HH-23151-L0-00

Unavailable

12

.. RING, PISTON FRONT FORK

4V4-23157-L0-00

Unavailable

13

. SPINDLE, TAPER

2HH-23173-L0-00

Unavailable

14

. SPRING (0350)

2HG-23141-L0-00

Unavailable

14

. SPRING (0400) (K=040)

2HH-23141-20-00

Unavailable

14

. SPRING (0375) (K@0375)

2HH-23141-L0-00

Unavailable

15

SEAT, SPRING UPPER

4V4-23142-L0-00

Unavailable

16

. SPACER

1LV-23118-L0-00

Unavailable

16

. SPACER (K=57)

2HH-23118-L0-00

Unavailable

16

. SPACER

5X6-23118-L0-00

Unavailable

17

GASKET

2HH-23158-L0-00

Unavailable

18

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

19

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

20

. WASHER, PLATE

90201-143L0-00

Unavailable

21

PLUG

55Y-2312G-M0-00

Unavailable

22

BOLT,CAP

43M-23111-L0-00

Unavailable

23

AIR VALVE COMP.

23X-23190-L0-00

Unavailable

24

O-RING

4V4-23188-L1-00

Unavailable

25

O-RING

3J2-23147-00-00

Unavailable

26

. VALVE, COMP

2HH-2316A-L0-00

Unavailable

27

. ADJUSTER

2HH-2318R-00-00

Unavailable

28

FRONT FORK ASSEMBLY R (R.H)

2HH-23103-L0-00

Unavailable

29

. TUBE, OUTER 2

2HH-23136-L0-00

Unavailable

30

RING, SNAP

4V4-23153-L0-00

$9.99

31

OIL SEAL

23X-23145-L0-00

$32.99

32

METAL, SLIDE 1

5EB-23125-00-00

$32.99

33

SEAL, DUST

23X-23144-L0-00

$27.99

34

WASHER

4V4-23146-L0-00

$6.99

35

. INNER TUBE 1

2HH-23110-L0-00

Unavailable

36

. PISTON, FRONT FORK

4V4-23171-L0-00

Unavailable

37

. CYLINDER, FRT FORK

2HH-23170-L0-00

Unavailable

38

.. SPRING, SUB

2HH-23151-L0-00

Unavailable

39

.. RING, PISTON FRONT FORK

4V4-23157-L0-00

Unavailable

40

. SPINDLE, TAPER

2HH-23173-L0-00

Unavailable

41

. SPRING (0350)

2HG-23141-L0-00

Unavailable

41

. SPRING (0400) (K=040)

2HH-23141-20-00

Unavailable

41

. SPRING (0375) (K@0375)

2HH-23141-L0-00

Unavailable

42

SEAT, SPRING UPPER

4V4-23142-L0-00

Unavailable

43

. SPACER

1LV-23118-L0-00

Unavailable

43

. SPACER (K=57)

2HH-23118-L0-00

Unavailable

43

. SPACER

5X6-23118-L0-00

Unavailable

44

GASKET

2HH-23158-L0-00

Unavailable

45

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

46

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

47

. WASHER, PLATE

90201-143L0-00

Unavailable

48

PLUG

55Y-2312G-M0-00

Unavailable

49

BOLT,CAP

43M-23111-L0-00

Unavailable

50

AIR VALVE COMP.

23X-23190-L0-00

Unavailable

51

O-RING

4V4-23188-L1-00

Unavailable

52

O-RING

3J2-23147-00-00

Unavailable

53

. VALVE, COMP

2HH-2316A-L0-00

Unavailable

54

. ADJUSTER

2HH-2318R-00-00

Unavailable

55

HOLDER, AXLE

1LX-23167-L0-00

Unavailable

56

NUT

5Y3-23393-00-00

Unavailable

57

WASHER, SPRING

92995-06100-00

Unavailable

58

UNDER BRACKET

1LX-23340-L0-00

Unavailable

59

BOLT, WASHER BASED

90105-08463-00

Unavailable

60

NUT, FLANGE

95704-08500-00

Unavailable

61

EMBLEM

1LX-23108-00-00

Unavailable

62

BOOT, FRONT FORK

43M-23191-L0-00

Unavailable

63

BAND

43M-23192-L0-00

Unavailable

64

BAND

3LD-23489-00-00

Unavailable

65

SCREW, PAN HEAD

98507-04018-00

Unavailable
