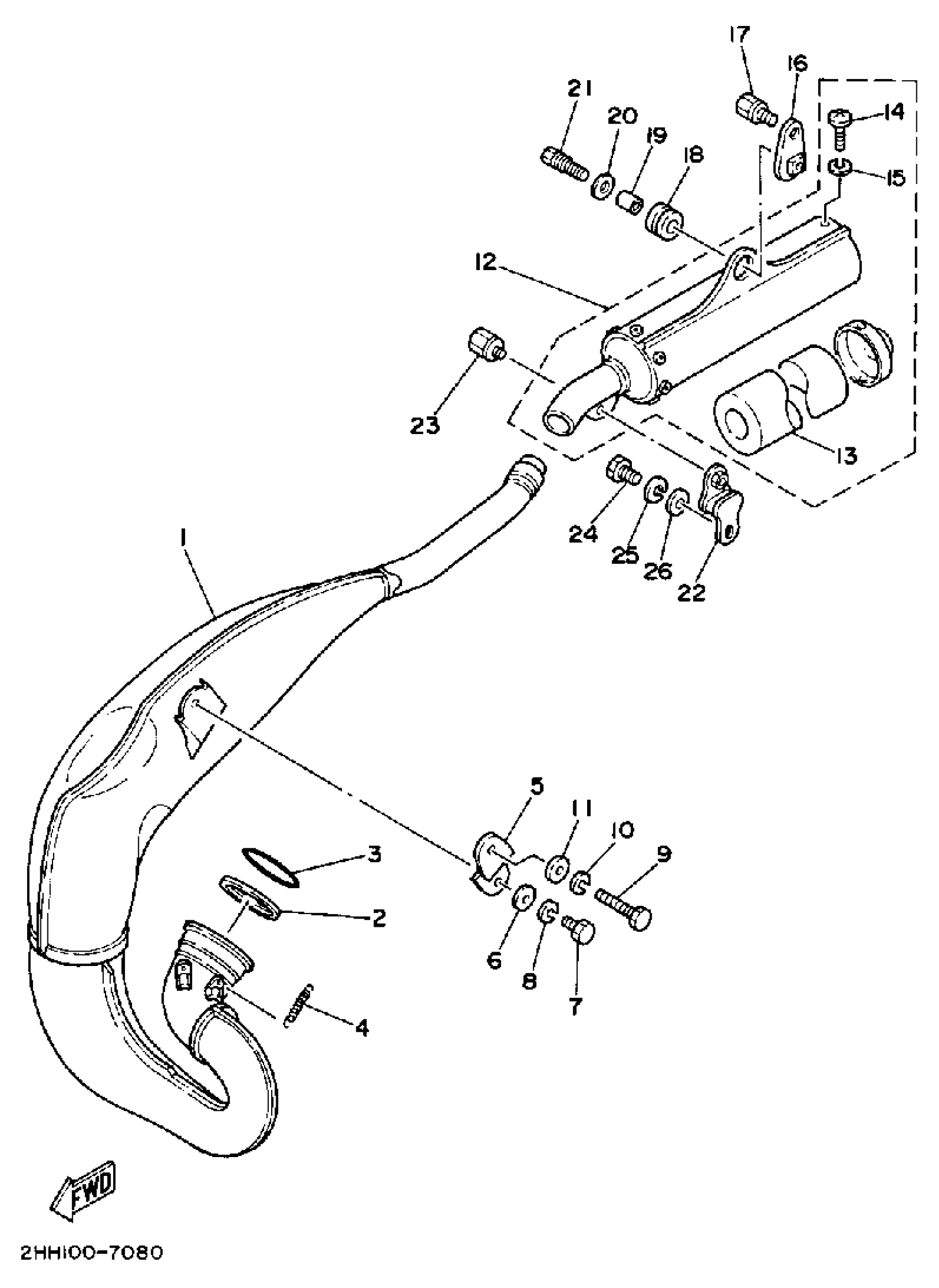

Yamaha YZ250T (YZ250T) 1987 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY L

2HH-14610-00-00

Unavailable

2

GASKET, EXHAUST

3R4-14613-00-00

$31.99

3

O-RING(2HH)

93210-56743-00

$15.99

4

SPRING, TENSION (1W4)

90507-20030-00

$14.99

5

STAY, MUFFLER 1

24Y-14771-00-00

Unavailable

6

WASHER, PLATE (12X)

90201-087F0-00

$5.60

7

BOLT, HEXAGON

97013-08016-00

$1.01

8

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

9

BOLT (663)

97013-08060-00

$4.41

10

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

11

.. WASHER, PLATE

92990-08600-00

Unavailable

12

SILENCER, EXHAUST

2HH-14753-10-00

Unavailable

13

. FIBER

2HH-1469A-10-00

Unavailable

14

SCREW PAN HEAD

98580-06010-00

$8.49

15

WASHER, SPRING

92995-06100-00

Unavailable

16

BRACKET

1LX-14744-00-00

Unavailable

17

BOLT

90109-08573-00

Unavailable

18

DAMPER, MUFFLER

39X-14747-00-00

Unavailable

19

COLLAR

90387-081A3-00

Unavailable

20

WASHER, PLATE (1A0)

90201-08612-00

Unavailable

21

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable

22

STAY, MUFFLER 1

565-14771-01-00

Unavailable

23

BOLT (3R4)

90109-06551-00

Unavailable

24

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

25

WASHER, SPRING

92995-06100-00

Unavailable

26

WASHER, PLAIN (646)

92990-06600-00

Unavailable
