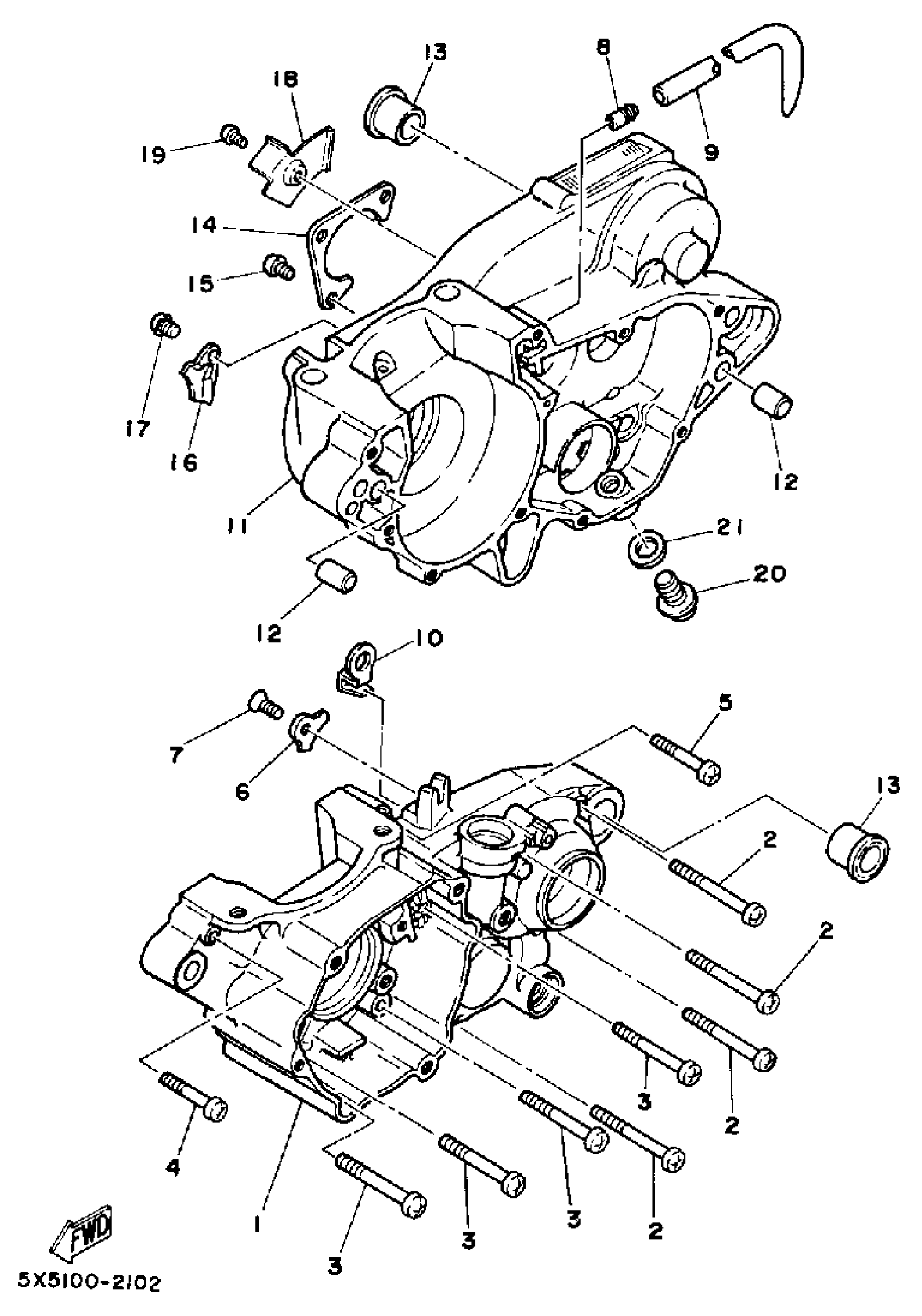

Yamaha YZ250T (YZ250T) 1987 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE 1

5X5-15111-03-00

Unavailable

2

BOLT,SOCKET

91317-06060-00

$3.76

3

BOLT,SOCKET

91317-06055-00

$4.19

4

BOLT,SOCKET

91317-06045-00

$4.99

5

BOLT,SOCKET

91317-06040-00

$3.76

6

PLATE, BEARING COVR

56A-15383-00-00

Unavailable

7

SCREW, FLAT

98707-06012-00

$8.49

8

. CONNECTOR, SUCTION PIPE

137-13115-01-00

Unavailable

9

HOSE (L1500)

90445-084J0-00

$18.99

10

HOLDER

3R4-26393-00-00

$56.99

11

CRANKCASE 2

5X5-15121-01-00

Unavailable

12

PIN, DOWEL

99530-12016-00

$4.89

13

COLLAR

90387-160H4-00

Unavailable

14

PLATE, BEARING COVER

23X-15381-00-00

Unavailable

15

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

16

HOLDER

3R4-15118-00-00

Unavailable

17

SCREW, PAN

98507-08010-00

Unavailable

18

PLATE

5X5-15113-00-00

Unavailable

19

SCREW PAN HEAD

98580-06010-00

Unavailable

20

PLUG, STRAIGHT SCREW (22F)

90340-12097-00

Unavailable

21

GASKET (3JD1)

90430-12207-00

Unavailable
