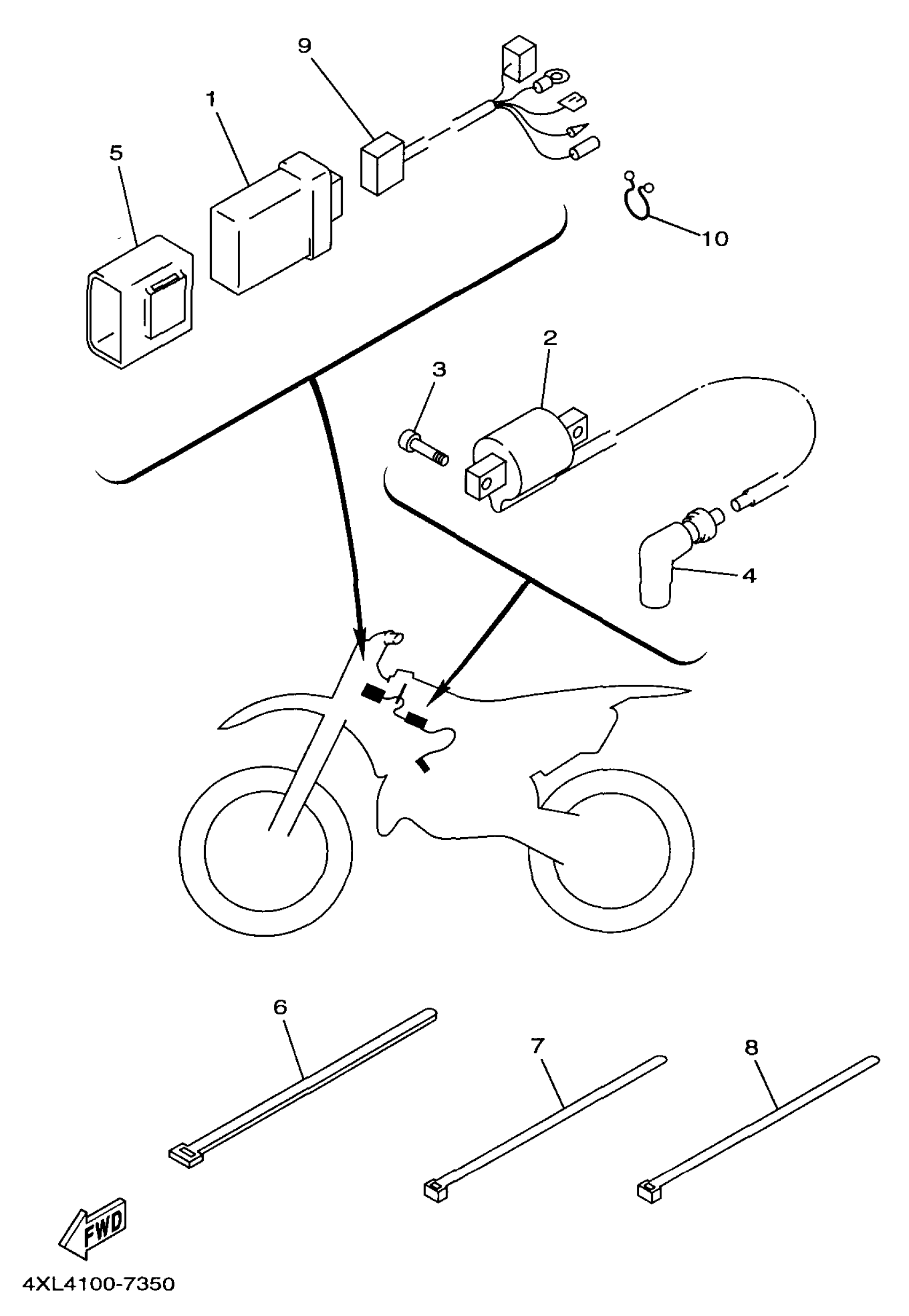

Yamaha YZ250K1 (YZ250) 1998 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

5DJ-85540-01-00

Unavailable

2

IGNITION COIL ASSY

4MX-82310-02-00

Unavailable

3

BOLT,SOCKET

91317-06016-00

$1.15

4

PLUG CAP ASSY

8DG-82370-00-00

$41.54

5

BAND

4SS-85546-01-00

Unavailable

6

CLAMP

90464-76001-00

$6.29

7

CLAMP(4FM)

90464-15195-00

$2.57

8

CLAMP(MF1)

90464-15152-00

$4.07

9

WIRE, SUB LEAD

4SS-82509-00-00

Unavailable

10

CLAMP (3Y2)

90464-16039-00

$8.23
