1997 Yamaha Competition (YZ250J1) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1997 Yamaha Competition (YZ250J1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

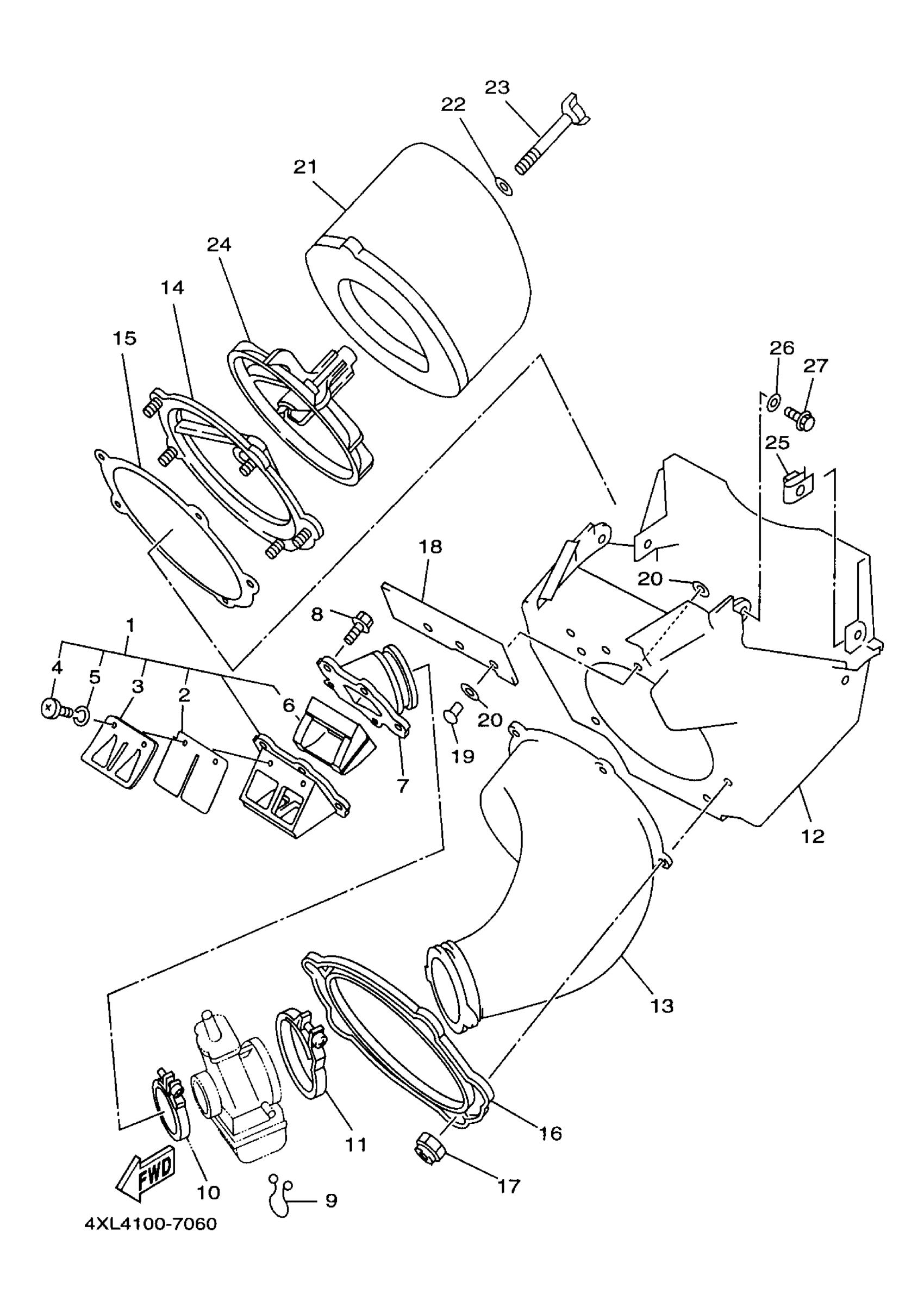

1997 Yamaha Competition (YZ250J1) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSY

4XL-13610-00-00

1
Out of stock

2

REED, VALVE

4XL-13613-00-00

1
Out of stock

3

STOPPER, REED VALVE

4XL-13616-10-00

1

$18.42

In stock

4

SCREW, PAN HEAD(3AC)

98517-03008-00

1

$2.74

In stock

5

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

6

SPACER, REED VALVE

4XL-13625-00-00

—

$69.14

In stock

7

JOINT, CARBURETOR

4XL-13565-00-00

1
Out of stock

8

. BOLT, FLANGE

95027-06020-00

1

$1.00

In stock

9

CLAMP (3Y2)

90464-16039-00

1
Out of stock

10

HOSE CLAMP ASSY

90450-51001-00

1

$14.09

In stock

11

HOSE CLAMP ASSY

90450-70002-00

1

$18.12

In stock

12

AIR CLEANER CASE A

4SS-14401-02-00

1
Out of stock

13

JOINT, AIR CLEANER 1

4SR-14453-00-00

1
Out of stock

14

HOLDER,GUIDE

3JD-14459-01-00

1
Out of stock

15

SEAL

3JD-14462-00-00

1
Out of stock

16

PLATE

5MV-14477-00-00

1
Out of stock

17

NUT, U

95617-05100-00

—

$6.68

In stock

18

COVER 1

4SS-14417-00-00

1
Out of stock

19

RIVET (813)

90267-32070-00

—

$2.25

In stock

20

WASHER, PLATE 8077743700

90201-03313-00

—

$5.20

In stock

21

ELEMENT, AIR CLEANER

4XM-14451-01-00

—

$36.43

In stock

22

WASHER (4H7)

90209-06096-00

—
Out of stock

23

BOLT, WING

90122-06005-00

—

$10.05

In stock

24

GUIDE

3JD-14458-01-00

—

$61.74

In stock

25

NUT, SPRING (26H)

90183-06023-00

—

$7.45

In stock

26

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

27

BOLT, FLANGE(4MY)

95027-06012-00

—

$3.28

In stock
