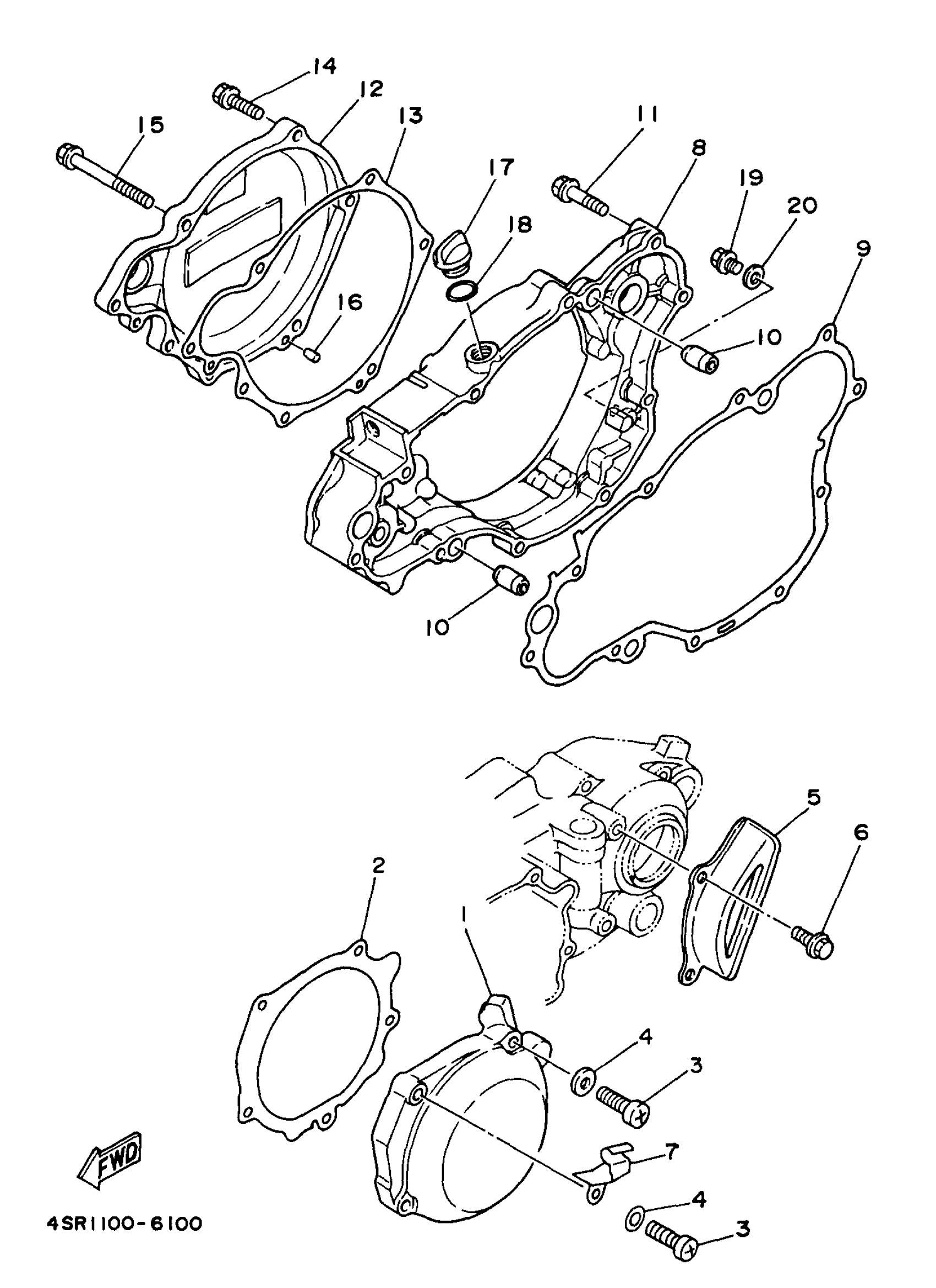

Yamaha YZ250J1 (COMPETITION) 1997 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

2VM-15411-00-00

Unavailable

2

GASKET, CRANKCASE COVER 1

2VM-15451-11-00

$17.82

3

SCREW, PAN

98517-06030-00

$2.88

4

WASHER(6TA)

92907-06600-00

$0.73

5

COVER, CRANKCASE 2

2VM-15421-02-00

Unavailable

6

BOLT, FLANGE(4MY)

95027-06012-00

$3.05

7

HOLDER, CLUTCH CABLE

4SR-15441-00-00

Unavailable

8

COVER, CRANKCASE 3

3SP-Y1543-00-00

Unavailable

9

GASKET, CRANKCASE COVER 3

2VM-15462-11-00

Unavailable

10

PIN, DOWEL

99530-12016-00

$3.85

11

BOLT, SMALL FLANGE

95027-06030-00

$3.40

12

COVER, GENERATOR

4EW-15415-00-00

Unavailable

13

GASKET, CARBURETOR COVER 2

3SP-15463-11-00

$28.61

14

BOLT, WASHER BASED(4KG)

90105-060A0-00

$6.61

15

BOLT, SMALL FLANGE

95027-06070-00

$1.75

16

PIN,DOWEL (603)

93604-10011-00

Unavailable

17

PLUG, OIL LEVEL

1G8-15362-00-00

Unavailable

18

O-RING (26H)

93210-14579-00

Unavailable

19

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

20

GASKET 256113960000

90430-06014-00

Unavailable
