1982 Yamaha YZ250J (YZ250J) Intake Diagram

← All diagrams

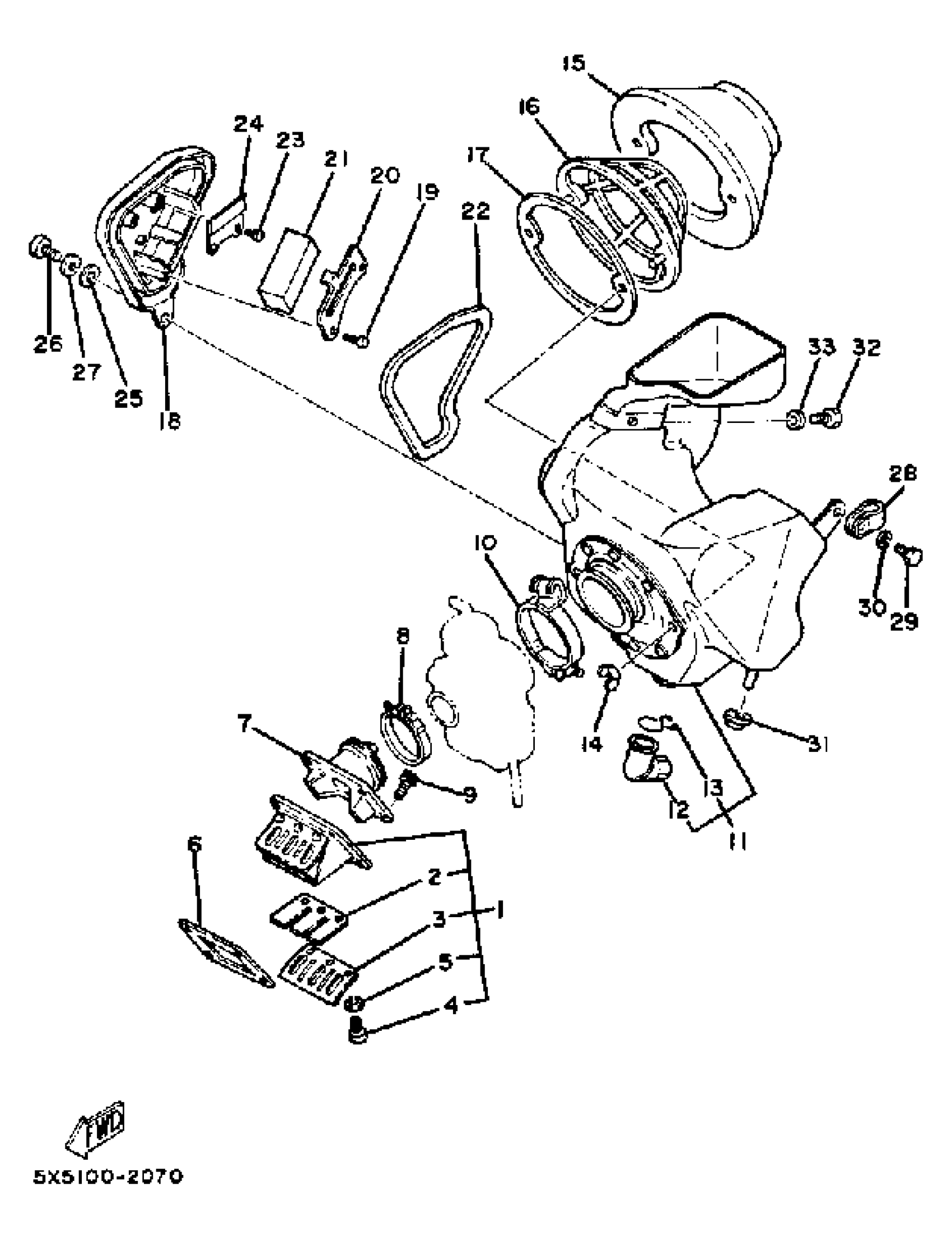

Find the part on the Intake diagram for your 1982 Yamaha YZ250J (YZ250J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha YZ250J (YZ250J) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSEMBLY

3R5-13610-00-00

1
Out of stock

2

REED, VALVE

3R5-13613-00-00

1
Out of stock

3

. STOPPER, REED VALVE

2X5-13616-00-00

1
Out of stock

4

SCREW, PAN HEAD (J10)

98580-03008-00

1
Out of stock

5

WASHER, SPRING

92990-03100-00

1
Out of stock

6

JOINT, CARBURETOR

3R4-13565-00-00

1
Out of stock

6

GASKET, VALVE SEAT

80L-13621-01-00

1
Out of stock

8

CLAMP, HOSE

90460-51109-00

1
Out of stock

9

BOLT,SOCKET

91317-06020-00

—
Out of stock

10

CLAMP, HOSE

90460-68231-00

1
Out of stock

11

AIR CLNR CASE ASSEMBLY

(5X5-14401-00-00)

1
Out of stock

12

SEAL

1W1-14457-01-00

1
Out of stock

13

CLIP

90467-20M15-00

1
Out of stock

14

NUT, WING (646)

90175-06008-00

1
Out of stock

15

ELEMENT, AIR CLNR

3R4-W1442-01-00

1
Out of stock

16

GUIDE, ELEMENT

3R4-14458-00-00

1
Out of stock

17

HOLDER, GUIDE

(4V4-14459-00-00)

1
Out of stock

18

CAP, CLEANER CASE 1

5X5-14412-00-00

1
Out of stock

19

SCREW, TAPPING

97780-40116-00

1
Out of stock

20

PANEL 1

5X5-1441L-00-00

1
Out of stock

21

SEAL 1

3R4-21732-00-00

1
Out of stock

22

SEAL

39W-14452-00-00

1
Out of stock

23

SCREW, OVAL HEAD TAPPING

97780-40112-00

1
Out of stock

24

HOOK

(5X5-14436-00-00)

1
Out of stock

25

WASHER(6TA)

92907-06200-00

—
Out of stock

26

SCREW, PAN HEAD(3TJ)

98507-06016-00

—
Out of stock

27

WASHER, SPRING

92907-06100-00

—
Out of stock

28

STAY 2

4V4-14499-00-00

1
Out of stock

29

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—
Out of stock

30

WASHER, SPRING

92995-06100-00

1
Out of stock

31

GROMMET

90480-13014-00

—
Out of stock

32

BOLT (661)

97013-06012-00

—
Out of stock

33

WASHER, SPRING

92995-06100-00

1
Out of stock
