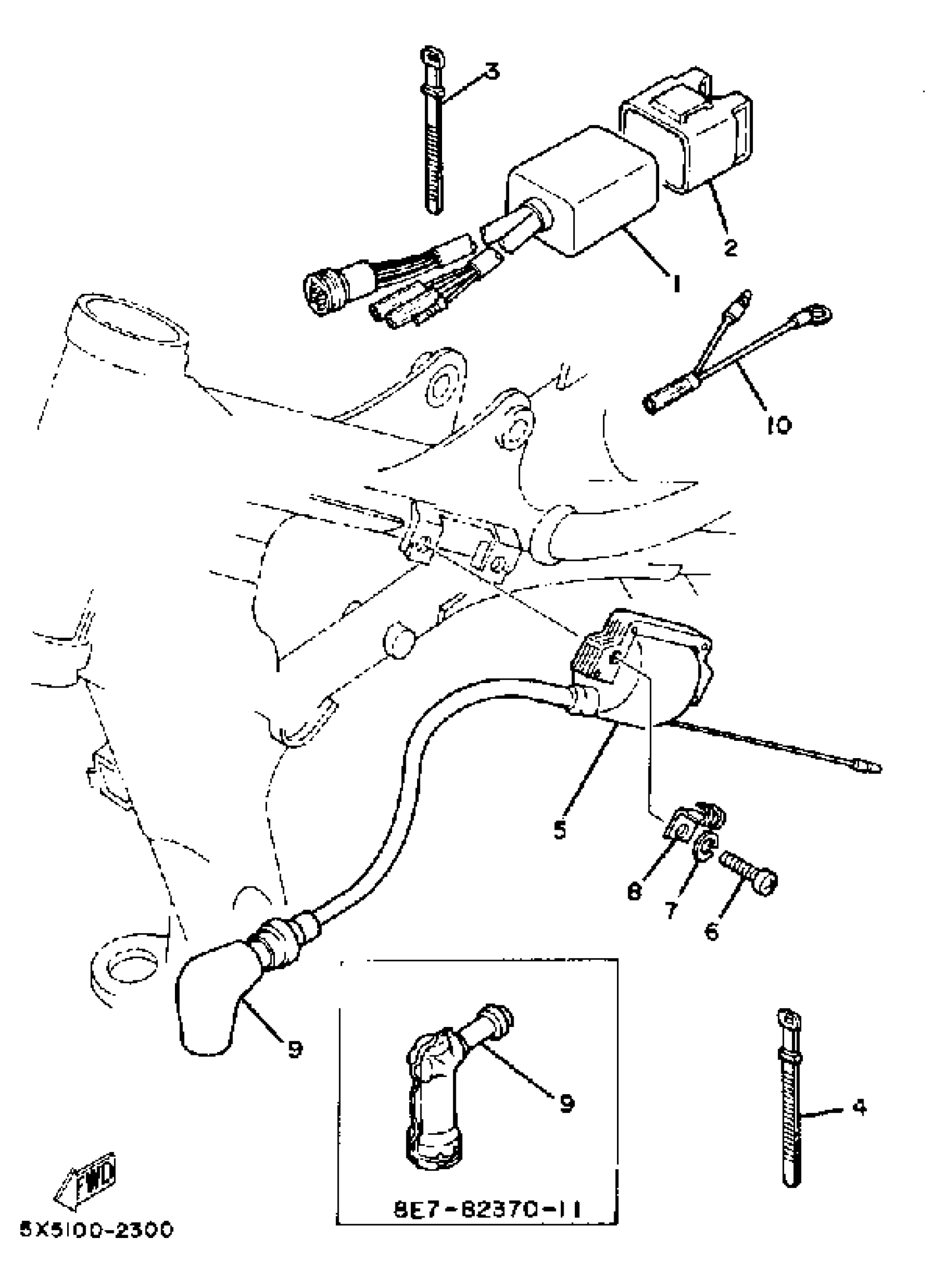

Yamaha YZ250J (YZ250J) 1982 ELECTRICAL 1 Diagram

#

Description
Price

1

CDI UNIT ASSEMBLY

5X5-85540-10-00

Unavailable

2

BAND

2A7-85546-00-00

Unavailable

3

BAND, SWITCH CORD

437-83936-11-00

$3.34

4

BAND, SWITCH CORD

25G-83936-01-00

$3.85

5

IGNITION COIL ASSEMBLY

2X6-82310-10-00

Unavailable

6

SCREW, PAN HEAD (76T)

98517-06025-00

$2.90

7

WASHER, SPRING

92995-06100-00

$2.95

8

CLAMP 363154850100

90462-05005-00

Unavailable

9

PLUG CAP ASSY

8DG-82370-00-00

$41.54

9

PLUG CAP ASSY

7KA-82370-00-00

$61.30

10

WIRE, EARTH LEAD

4V0-82519-00-00

$6.57
