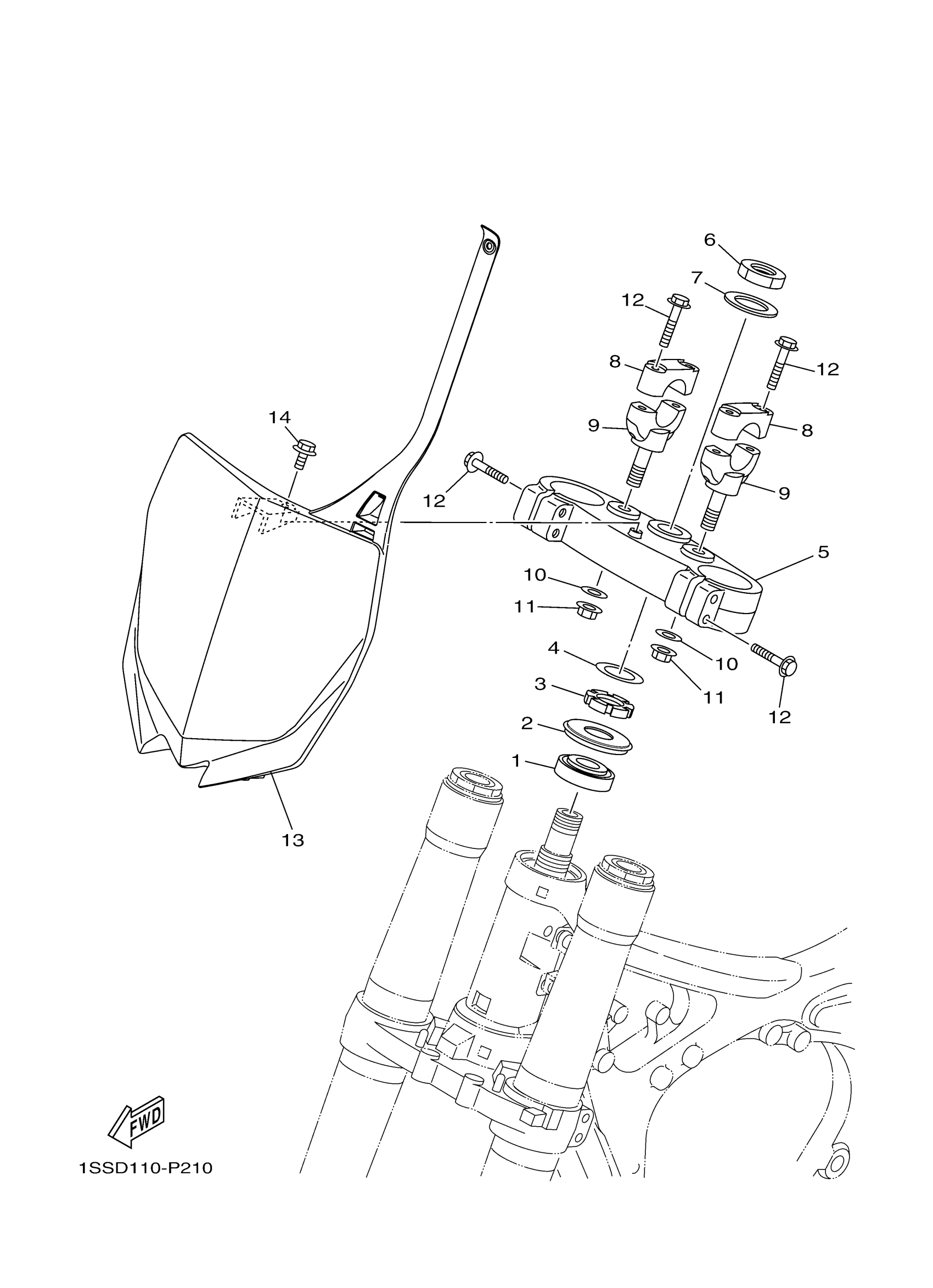

Yamaha YZ250G2 (YZ250G) 1SSH 2016 STEERING Diagram

#

Description
Price

1

BEARING(4EW)

93332-00078-00

$60.70

2

COVER, BALL RACE 2

4EW-23416-00-00

$27.46

3

NUT

90179-28013-00

$30.64

4

WASHER, PLATE(1YW)

90201-286K9-00

$5.30

5

CROWN, HANDLE

1SS-23435-00-00

$176.69

6

NUT

90170-24003-00

$21.30

7

WASHER, PLATE

90201-24016-00

$6.18

8

HOLDER, HANDLE UPPER

18P-23441-00-00

$24.49

9

HOLDER, HANDLE LOW

1SS-23442-00-00

$49.40

10

WASHER, PLATE

90201-12028-00

$2.27

11

NUT, SELF-LOCKING

95602-12200-00

$3.56

12

BOLT, FLANGE

90105-08134-00

$5.47

13

PLATE, NUMBER

17D-23485-50-00

$22.79

14

BOLT, FLANGE

90105-06064-00

$2.49
