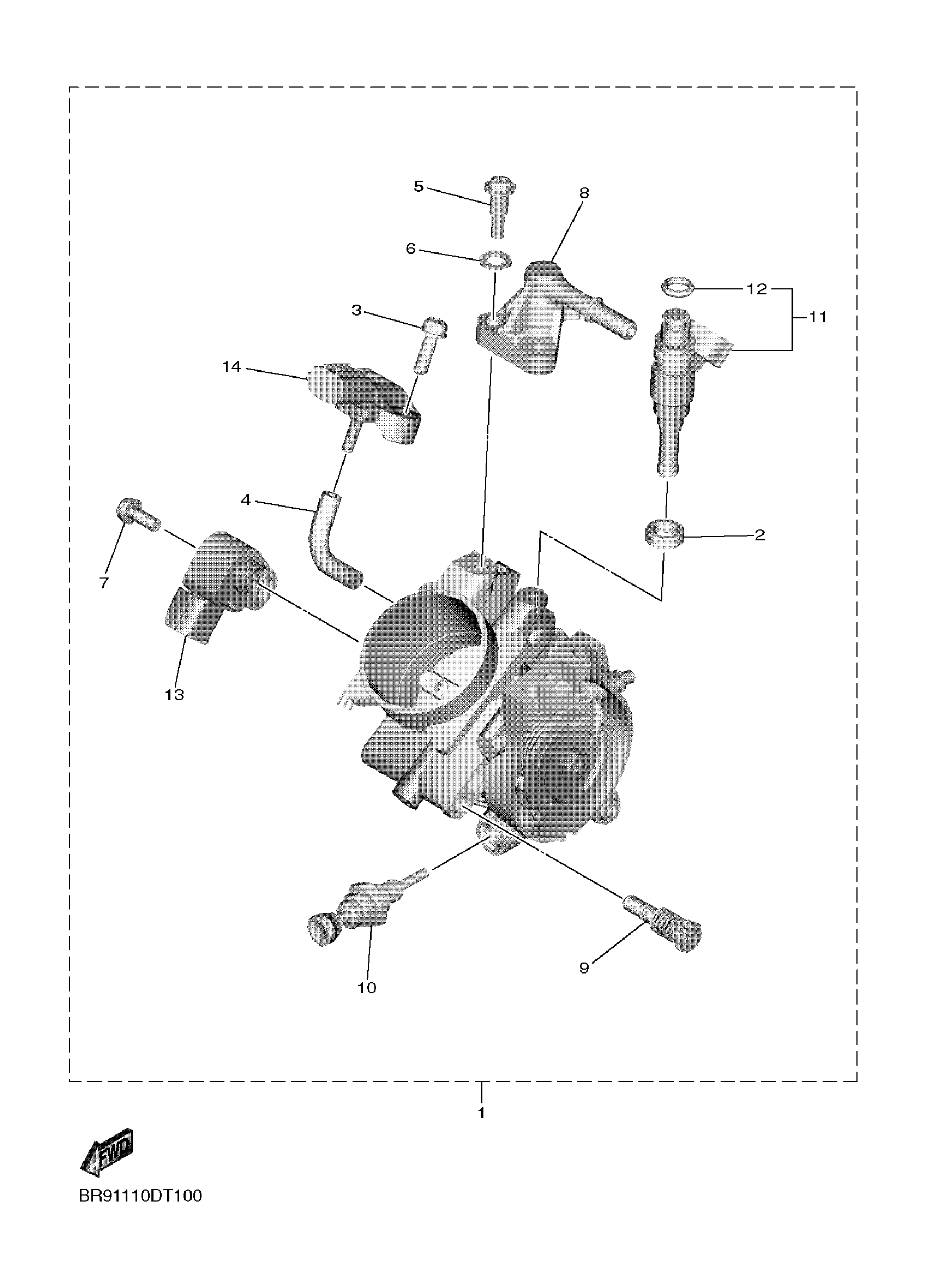

Yamaha YZ250FPL (YZ250F) BSB1 2023 INTAKE 2 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

B7B-13750-02-00

Unavailable

2

GASKET, MANIFOLD

8FP-13556-00-00

$11.48

3

SCREW

2C0-14216-00-00

$2.98

4

PIPE 1

BR9-14348-00-00

Unavailable

5

SCREW, ROD

BR9-14486-00-00

$3.32

6

GASKET

363-14198-00-00

$9.25

7

SCREW

8CC-14216-10-00

$6.66

8

DELIVERY PIPE ASSY 1

BR9-13160-00-00

$25.70

9

ADJUST SCREW SET

5VX-14503-00-00

$68.90

10

STARTER SET

BR9-1410A-01-00

Unavailable

11

INJECTOR ASSY

4C8-13761-00-00

$137.82

12

O-RING

5PS-14147-00-00

$8.68

13

THROTTLE SENSOR AS

BR9-85885-01-00

$63.09

14

SENSOR, PRESSURE

1WS-82380-00-00

$159.59
