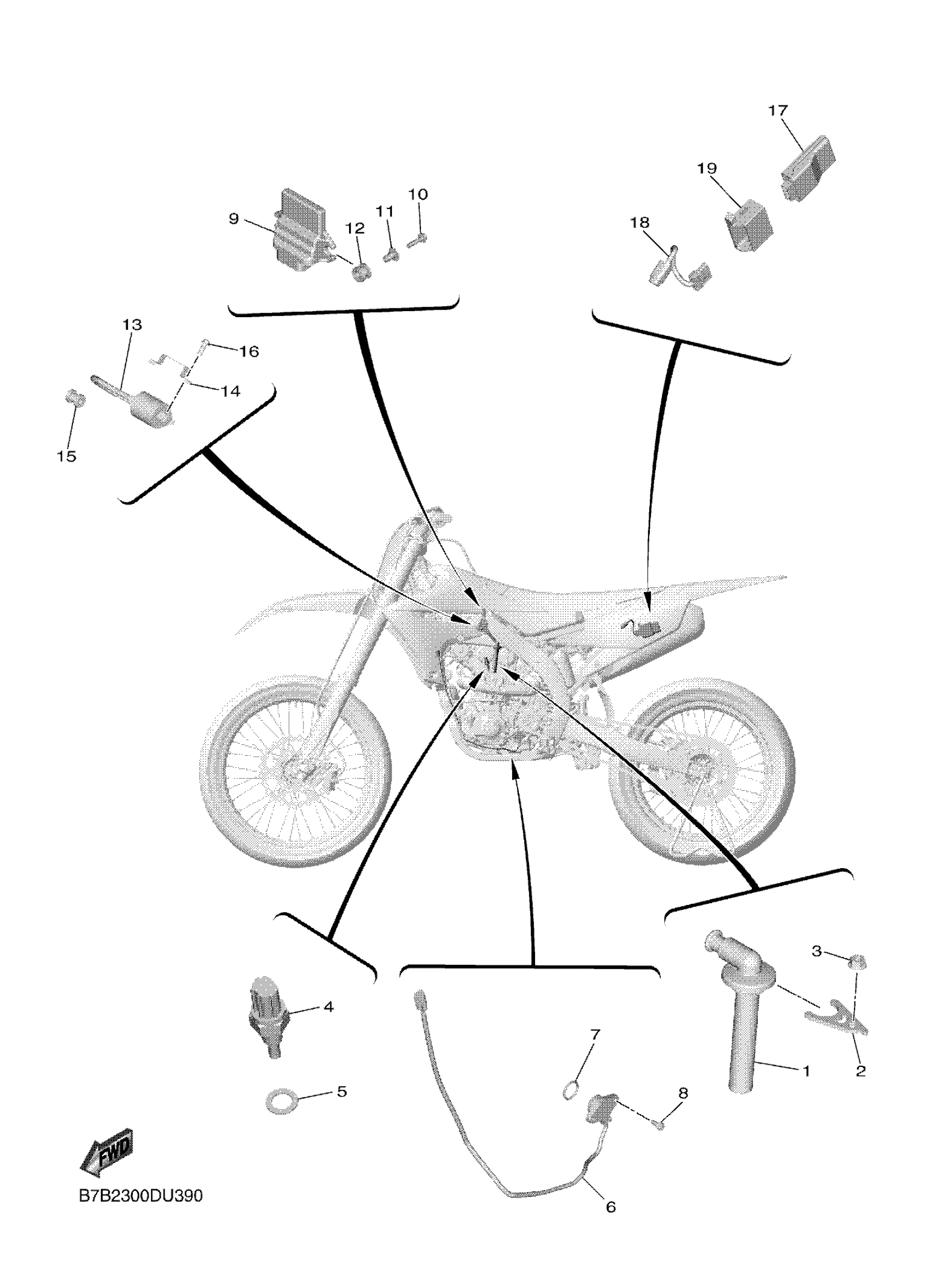

Yamaha YZ250FLL (YZ250F) B7B5 2020 ELECTRICAL 1 Diagram

#

Description
Price

1

PLUG CAP ASSY

1SM-82370-01-00

$90.18

2

HOLDER

BR9-11395-00-00

$4.06

3

NUT, FLANGE

95702-06500-00

$1.95

4

THERMO UNIT

52B-H3591-00-00

Unavailable

5

GASKET

90430-10004-00

$5.55

6

NEUTRAL SWITCH ASSY

B11-82540-01-00

Unavailable

7

O-RING

93210-21001-00

$4.46

8

BOLT, HEXAGON SOCKET HEAD

90110-05028-00

$5.86

9

ENGINE CONTROL UNIT ASSY

B7B-8591A-30-00

$584.42

10

BOLT, FLANGE

90105-05005-00

$0.79

11

COLLAR

90387-05048-00

$5.03

12

GROMMET

90480-13029-00

$4.47

13

IGNITION COIL ASSY

B7B-82310-03-00

$45.19

14

CORE, SIDE

BR9-8231U-00-00

$19.14

15

GROMMET

90480-11015-00

$3.32

16

BOLT, FLANGE DEEP RECESS

95E32-06016-00

Unavailable

17

COMMUNICATION CONT. UNIT ASSY

BR9-85810-02-00

Unavailable

18

WIRE, LEAD

BR9-85721-00-00

Unavailable

19

BAND

BR9-85546-00-00

Unavailable
