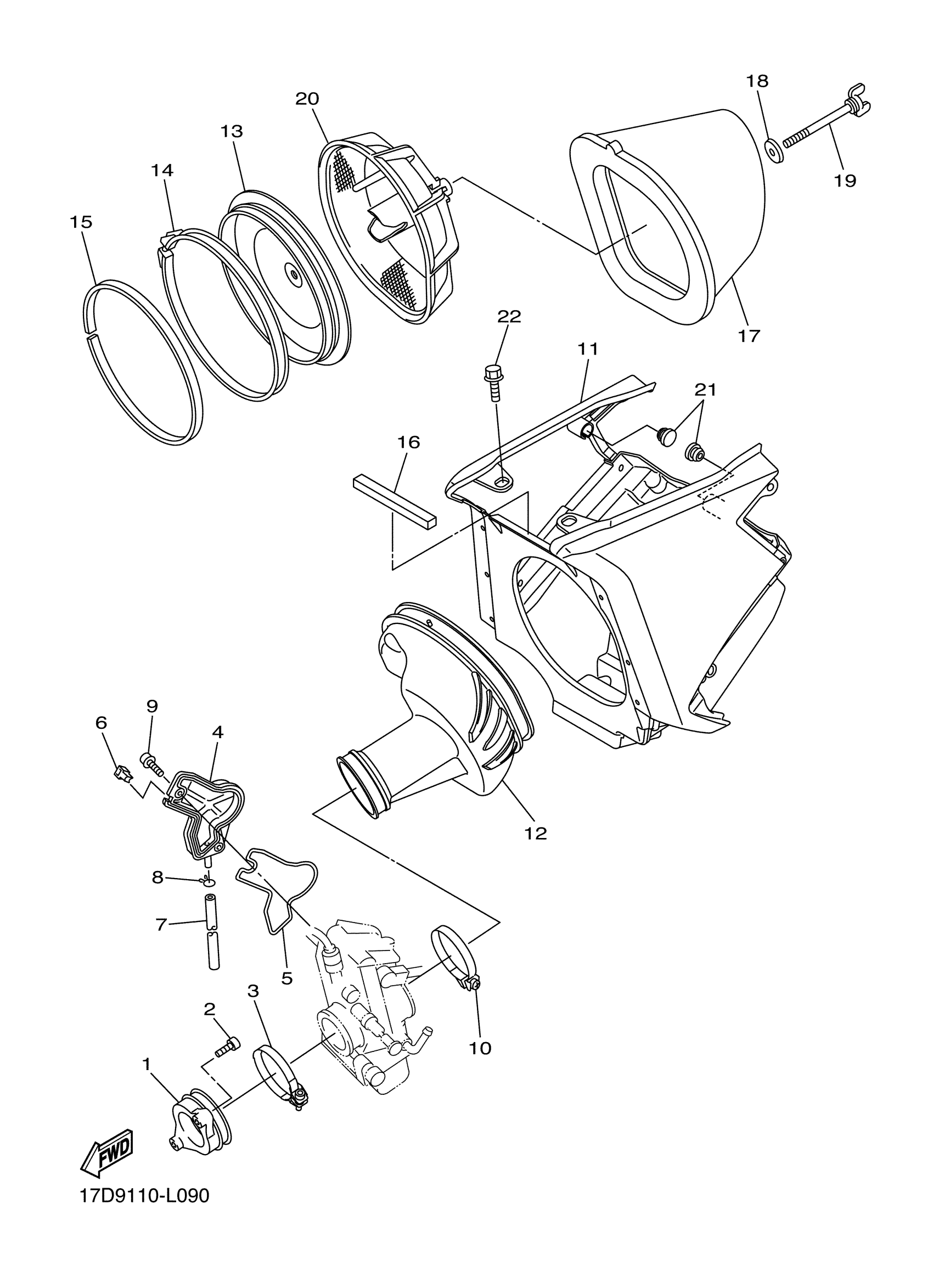

Yamaha YZ250FDW (YZ250F) 17DH0 2013 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 3

17D-13597-90-00

Unavailable

2

BOLT,SOCKET

91317-06025-00

$1.91

3

HOSE CLAMP ASSY

90450-58006-00

$17.92

4

COVER 1

5TA-14293-00-00

$34.82

5

GASKET

5TA-14227-00-00

$26.42

6

SEAL

5TA-14239-00-00

$15.47

7

HOSE

5TA-14987-00-00

$11.88

8

CLIP

3TJ-14137-40-00

$5.99

9

BOLT, HEXAGON SOCKET HEAD

90110-05038-00

$5.86

10

HOSE CLAMP ASSY

90450-61002-00

$14.41

11

AIR CLEANER CASE ASSY

17D-14401-00-00

$169.94

12

JOINT, AIR CLEANER 1

17D-14453-50-00

$88.82

13

HOLDER, GUIDE

5NY-14459-00-00

$30.11

14

BAND

5NY-14455-20-00

$32.65

15

SPACER

5NY-14442-00-00

$19.06

16

SEAL

17D-14452-00-00

Unavailable

17

ELEMENT, AIR CLEANER

4XM-14451-01-00

Unavailable

18

WASHER (4H7)

90209-06096-00

Unavailable

19

BOLT, WING

90122-06005-00

Unavailable

20

GUIDE

17D-14458-00-00

Unavailable

21

GROMMET (397)

90480-10068-00

Unavailable

22

BOLT, FLANGE

90105-06170-00

Unavailable
