1979 Yamaha YZ250F (YZ250F) Shifter 2 Diagram

← All diagrams

Find the part on the Shifter 2 diagram for your 1979 Yamaha YZ250F (YZ250F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

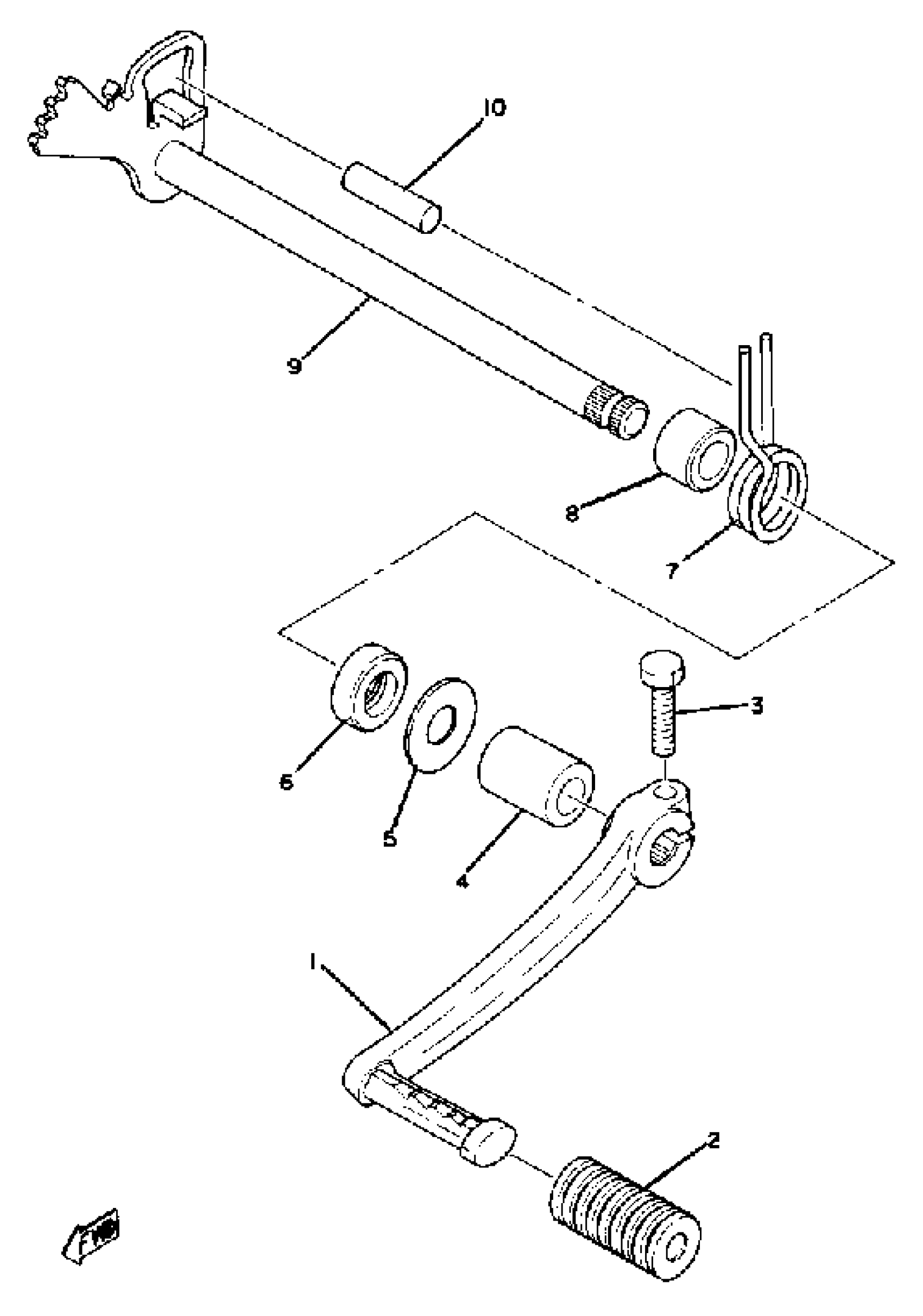

1979 Yamaha YZ250F (YZ250F) Shifter 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, SHIFT (2K7-18111-00-33)

2K7-18111-00-00

1
Out of stock

2

COVER, CHANGE PEDAL

132-18113-01-00

1
Out of stock

3

BOLT, HEXAGON

97017-06025-00

1
Out of stock

4

SPACER (3Y1)

90560-12191-00

1
Out of stock

5

WASHER

90201-12588-00

1
Out of stock

6

SEAL, OIL (30X)

93102-12321-00

1
Out of stock

7

SPRING, TORSION (2K7)

90508-32374-00

1
Out of stock

8

SPACER

90560-12171-00

1
Out of stock

9

SHIFT SHAFT ASSEMBLY.1

2K7-18101-00-00

1
Out of stock

10

PIN, DOWEL

93608-30152-00

1
Out of stock
