HANDLE - WIRE

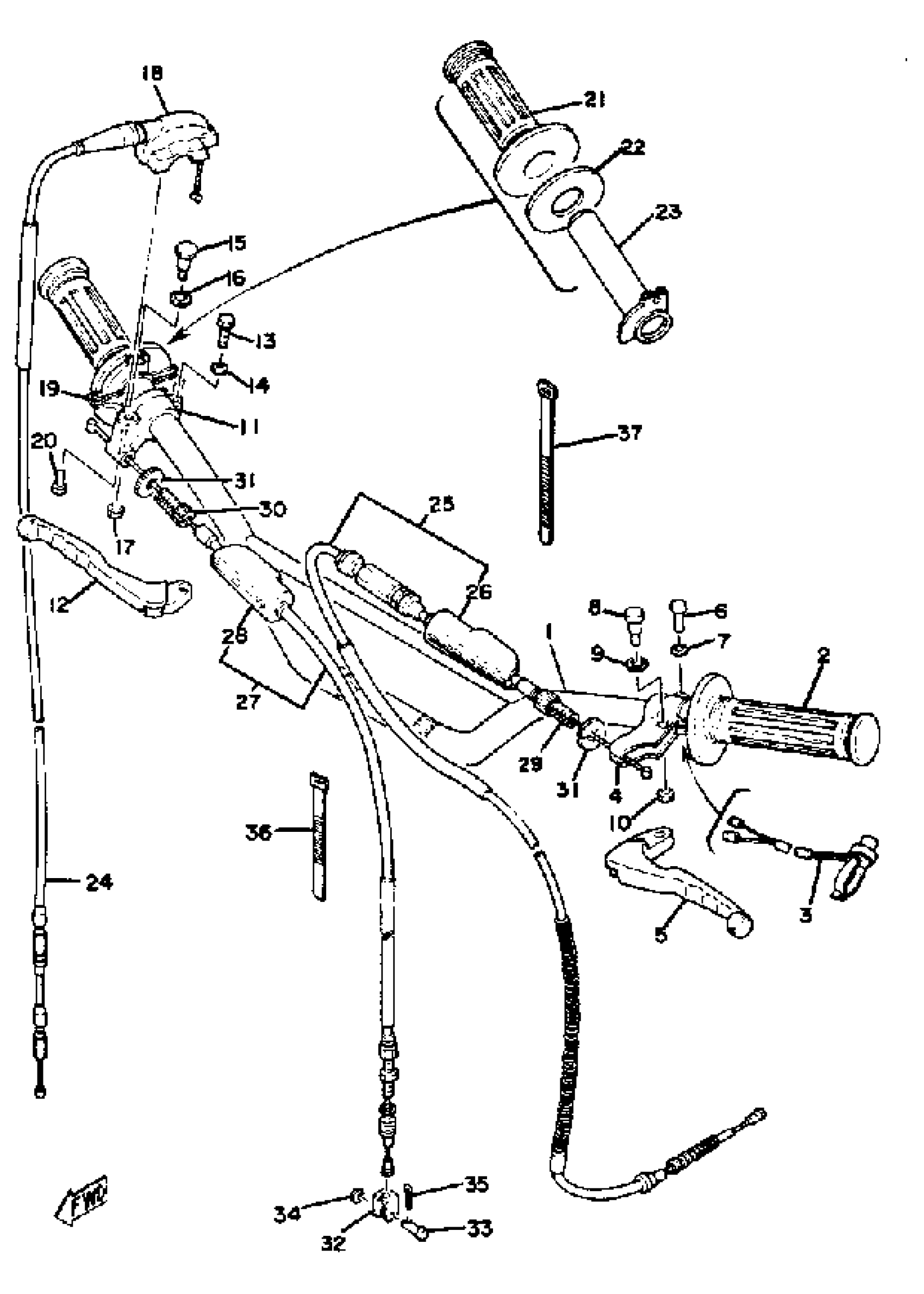

1979 Yamaha YZ250F (YZ250F) Handle - Wire Diagram
Find the part on the Handle - Wire diagram for your 1979 Yamaha YZ250F (YZ250F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
2
GRIP, HANDLE (L.H)
1E6-26241-00-00
3
SWITCH, HANDLE 1
23X-83976-01-00
9
WASHER, PLATE 1562722600
90201-08083-00
11
HOLDER, LEVER 2
516-82921-30-00
16
WASHER, PLATE 1562722600
90201-08083-00
18
CAP, GRIP UPPER (431-26281-01)
431-26281-01-98
22
RING, LEAF
1W1-26249-00-00
23
TUBE, THRTL GUIDE
431-26243-00-00
24
WIRE, THROTTLE
2K8-26311-01-00
25
CABLE, CLUTCH (1150MM)
2K7-26335-00-00
27
CABLE, BRAKE (1230MM)
1W4-26341-02-00
34
WASHER, PLATE 1562722600
90201-08083-00
