1979 Yamaha YZ250F (YZ250F) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1979 Yamaha YZ250F (YZ250F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

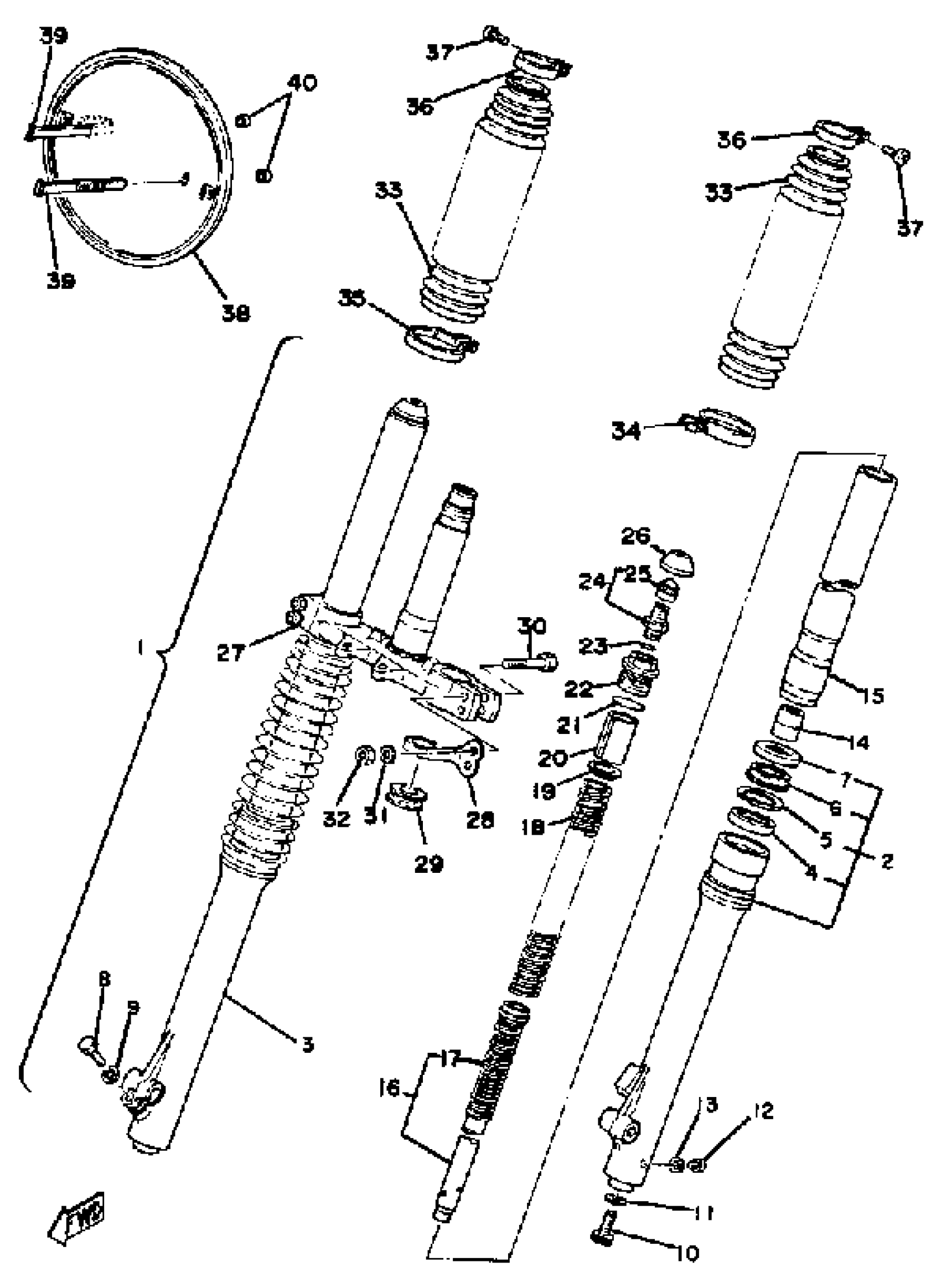

1979 Yamaha YZ250F (YZ250F) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(2X4-23101-L0-00)

1
Out of stock

2

TUBE, OUTER 1

(2K8-23126-L0-00)

1
Out of stock

3

TUBE, OUTER 2

(2K8-23136-L0-00)

1
Out of stock

4

OIL SEAL

3EN-23145-00-00

1

$22.96

In stock

5

CLIP, OIL SEAL

(1W4-23156-L0-00)

1
Out of stock

6

.. SEAL, DUST

1W4-23144-L0-00

1
Out of stock

7

.. COVER, DUST SEAL

1W4-23148-L0-00

1
Out of stock

8

BOLT, AXLE HOLDER

(1W4-23128-L0-00)

1
Out of stock

9

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

10

BOLT, HEX SCKT HEAD

(2K8-23181-L0-00)

1
Out of stock

11

GASKET

2K8-23158-L0-00

1
Out of stock

12

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

12

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

13

GASKET, DRAIN PLUG

122-23129-00-00

1

$6.37

In stock

14

SPINDLE, TAPER

(3R4-23173-L0-00)

1
Out of stock

15

INNER TUBE 1

(2X4-23110-L0-00)

1
Out of stock

16

CYLINDER, FRTFRK

(2X4-23170-L0-00)

1
Out of stock

17

SPRING, SUB

(2X4-23152-L0-00)

1
Out of stock

18

SPRING, FRONT FORK

(2X4-23141-10-00)

1
Out of stock

18

SPRING, FRONT FORK

(2X4-23141-20-00)

1
Out of stock

18

SPRING, FRONT FORK

(2X4-23141-L0-00)

1
Out of stock

19

. SEAT, SPRING UPPER

1W4-23142-L0-00

1
Out of stock

20

SPACER

(1W4-23118-L0-00)

1
Out of stock

21

O-RING

1W4-23114-L0-00

—

$7.45

In stock

22

. BOLT, CAP

1W4-23111-L1-00

1
Out of stock

23

. O-RING

509-23163-L0-00

1
Out of stock

24

. AIR VALVE

509-23190-L0-00

1
Out of stock

25

CAP, AIR VALVE

509-23184-L0-00

—

$6.48

In stock

26

. COVER, VALVE

1W1-23185-L0-00

1
Out of stock

27

UNDER BRACKET

(2X4-23340-L0-33)

1
Out of stock

28

. HOLDER, CABLE

1W1-23317-01-00

1
Out of stock

29

GUIDE, WIRE

1W1-23389-00-00

—

$24.12

In stock

30

BOLT (1E6)

90101-08340-00

—

$2.72

In stock

31

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

32

NUT(6L2)

95333-08600-00

—

$3.20

In stock

33

BOOT, FRONT FORK

2X4-23191-L0-00

1
Out of stock

34

FRONT FORK ASSEMBLY

(2K8-23101-L0-00)

1
Out of stock

35

BAND

1W4-23489-L0-00

1
Out of stock

36

BAND, BOOT

341-92090-60-00

—
Out of stock

37

SCREW

509-23194-L0-00

—

$4.12

In stock

38

. PLATE, NUMBER

3R0-23485-00-00

1
Out of stock

39

. BAND

2X4-23489-00-00

1
Out of stock

40

HOSE

(90446-09158-00)

1
Out of stock
