1979 Yamaha YZ250F (YZ250F) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1979 Yamaha YZ250F (YZ250F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

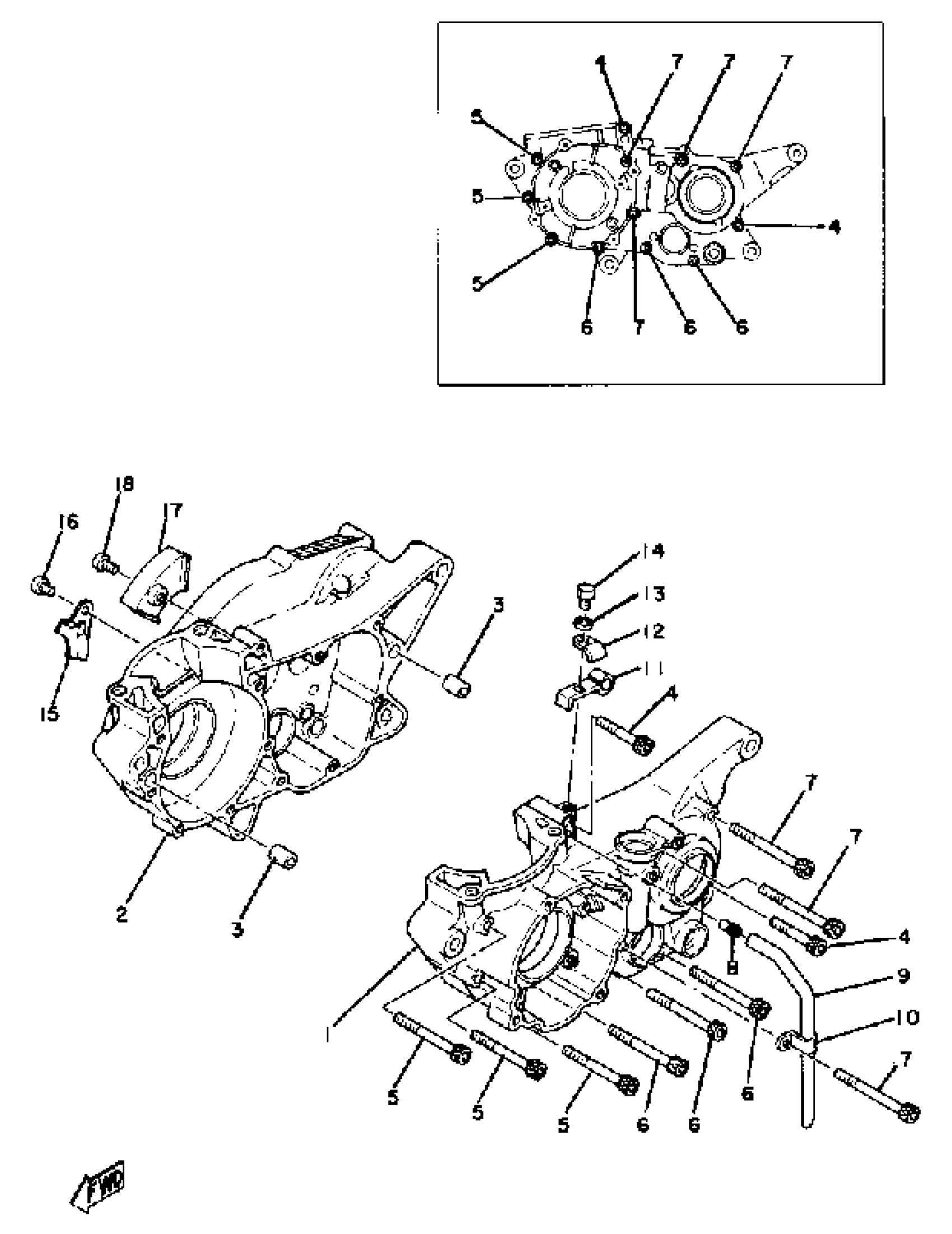

1979 Yamaha YZ250F (YZ250F) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1 (2K7-15111-00)

2K7-15111-01-00

1
Out of stock

2

CRANKCASE 2

(2K7-15121-01-00)

1
Out of stock

3

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

4

BOLT,SOCKET

91317-06045-00

1
Out of stock

5

BOLT, SOCKET

91317-06065-00

1
Out of stock

6

BOLT, SOCKET

91317-06070-00

1

$3.46

In stock

7

BOLT, SOCKET

91317-06075-00

1
Out of stock

8

. CONNECTOR, SUCTION PIPE

137-13115-01-00

1
Out of stock

9

HOSE (L340)

90445-08684-00

1

$3.37

In stock

10

CLAMP

90462-08042-00

1
Out of stock

11

HOLDER, CLCH CABLE

(2K7-15441-01-00)

1
Out of stock

12

CLAMP

90462-08042-00

1
Out of stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

BOLT(8CP)

97017-06014-00

1

$5.12

In stock

15

HOLDER

(2K7-15118-00-00)

1
Out of stock

16

SCREW, PAN

98507-08010-00

—
Out of stock

17

PLATE

(2K7-15113-00-00)

1
Out of stock

18

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock
