1978 Yamaha YZ250E (YZ250E) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1978 Yamaha YZ250E (YZ250E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

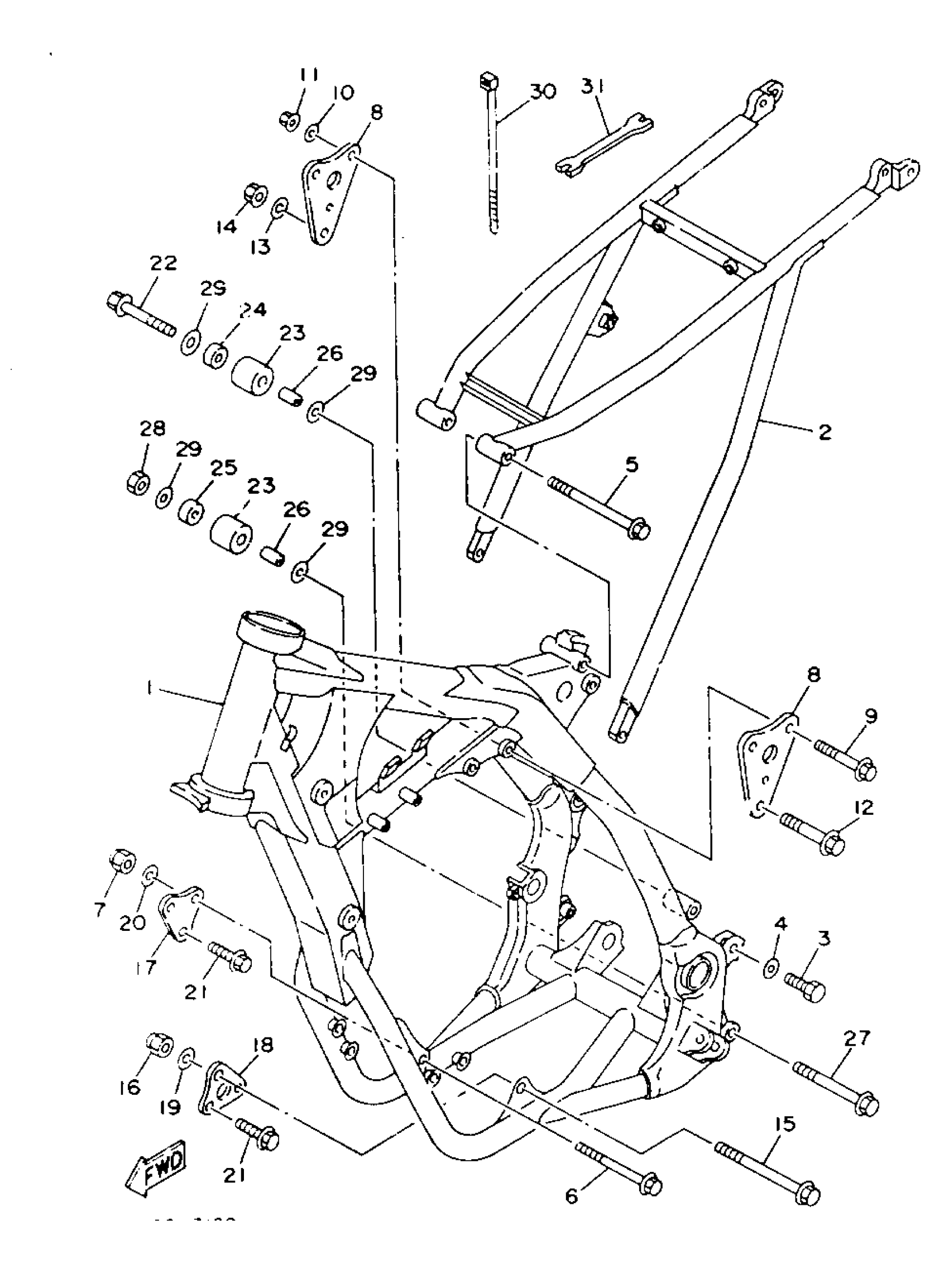

1978 Yamaha YZ250E (YZ250E) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FRAME COMP.

4EW-21101-00-UJ

1
Out of stock

2

REAR FRAME COMP.

4EW-21190-00-UJ

1
Out of stock

3

BOLT(4EW)

90106-08051-00

—

$19.88

In stock

4

WASHER, PLATE (7R4)

90201-080E2-00

1

$2.89

In stock

5

BOLT, WASHER BASED (401)

90105-08120-00

1

$6.26

In stock

6

BOLT, WASHER BASED

90105-08592-00

1
Out of stock

7

NUT, U

95617-08100-00

1

$6.78

In stock

8

BRACKET, REAR UPPER 1

4EW-21425-00-00

1
Out of stock

9

BOLT, FLANGE

95817-08050-00

1

$3.15

In stock

10

WASHER, PLATE (12X)

90201-087F0-00

1

$3.71

In stock

11

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

12

BOLT, FLANGE(87Y)

95817-10055-00

1

$4.54

In stock

13

1

$3.00

In stock

14

NUT, U

95614-10100-00

1

$5.86

In stock

15

BOLT, WASHER BASED(3RB)

90105-10733-00

1
Out of stock

16

NUT, SELF-LOCKING(JN5)

95607-10200-00

—

$3.32

In stock

17

BRACKET, FRONT LOWER 1

4EW-21417-00-00

1
Out of stock

18

BRACKET, REAR LOWER 1

4EW-21427-00-00

1
Out of stock

19

WASHER (853)

90201-08326-00

—

$6.17

In stock

20

WASHER, PLATE(47X)

90201-101J1-00

—

$6.17

In stock

21

BOLT, FLANGE

95817-08035-00

—

$6.68

In stock

22

BOLT, FLANGE(4KG)

95024-08040-00

—

$6.17

In stock

23

TENSIONER

3JD-22178-20-00

—

$37.74

In stock

24

TENSIONER

4EW-22178-01-00

—
Out of stock

25

BEARING (3X3)

93300-60804-00

—

$11.18

In stock

26

COLLAR(1NL)

90387-086N4-00

—

$8.31

In stock

27

BOLT, FLANGE

95027-08065-00

—
Out of stock

28

NUT, HEXAGON (509)

90170-08158-00

—

$1.10

In stock

29

WASHER, PLATE(3XP)

90201-086P8-00

—

$4.35

In stock

30

BAND

1UA-82591-00-00

—
Out of stock

31

WRENCH, HEXAGON

56A-28166-00-00

1
Out of stock
