1978 Yamaha YZ250E (YZ250E) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1978 Yamaha YZ250E (YZ250E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

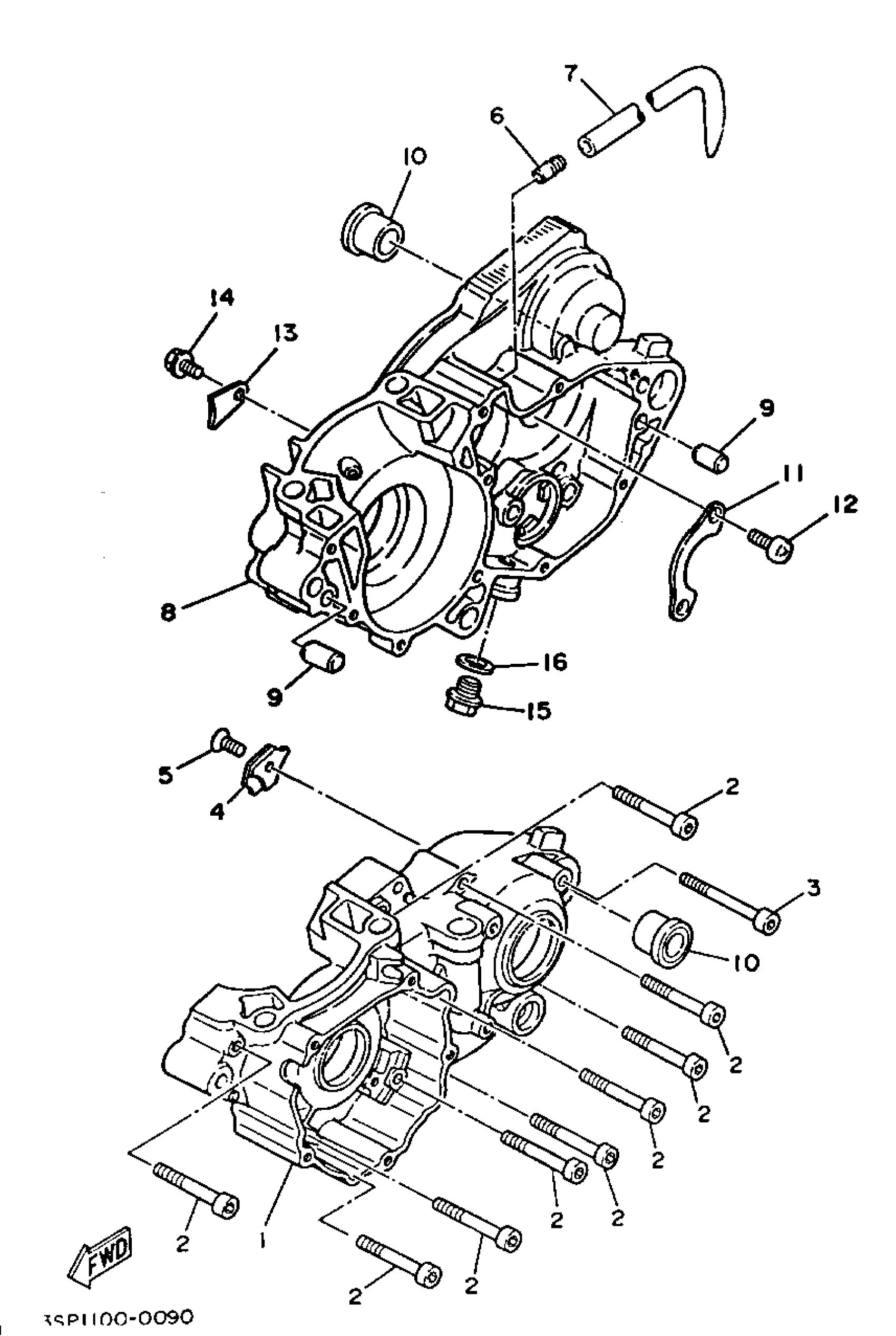

1978 Yamaha YZ250E (YZ250E) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1

2VM-15111-06-00

1
Out of stock

2

BOLT,SOCKET

91317-06050-00

1

$3.37

In stock

3

BOLT, SOCKET

91317-06070-00

1

$3.46

In stock

4

PLATE, BEARING COVER

3SP-15381-00-00

1
Out of stock

5

SCREW, FLAT

98707-06012-00

1

$6.18

In stock

6

CONNECTOR, SUCTION PIPE

353-13115-01-00

1

$5.26

In stock

7

HOSE (L1500)

90445-084J0-00

1

$16.40

In stock

8

CRANKCASE 2

2VM-15121-03-00

1
Out of stock

9

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

10

COLLAR

90387-160H4-00

1
Out of stock

11

PLATE, COVER

4L0-17471-00-00

1

$18.21

In stock

12

SCREW, PAN

98517-06012-00

1

$3.14

In stock

13

HOLDER

4V4-15118-00-00

1

$25.38

In stock

14

BOLT, FLANGE

95812-06010-00

1

$2.75

In stock

15

1

$2.82

In stock

16

GASKET (3JD1)

90430-12207-00

—

$6.77

In stock
