1976 Yamaha YZ175C (YZ175C) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1976 Yamaha YZ175C (YZ175C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

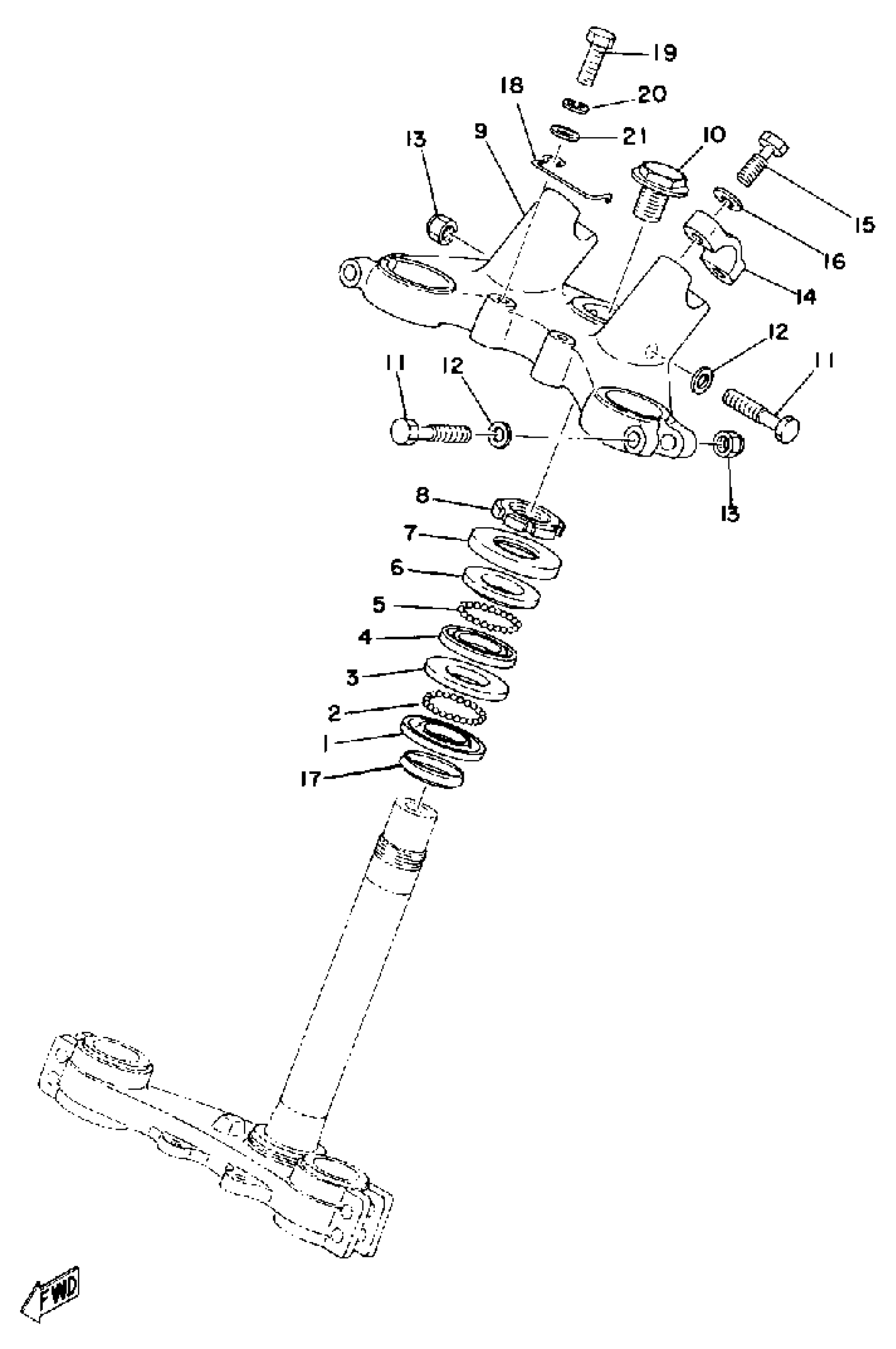

1976 Yamaha YZ175C (YZ175C) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RACE, BALL 1

B6E-23411-00-00

1

$7.02

In stock

2

BALL

93501-04011-00

1
Out of stock

3

RACE, BALL 2

B6E-23412-00-00

1

$9.71

In stock

4

RACE, BALL 2

BP2-23412-00-00

1

$5.71

In stock

5

BALL

93503-16003-00

1

$2.14

In stock

6

RACE, BALL 1

BP2-23411-00-00

1

$8.40

In stock

7

COVER BALL RACE

10V-23416-01-00

—
Out of stock

8

NUT

90179-25004-00

1

$20.78

In stock

9

FRONT FORK ASSEMBLY

(1G8-23101-L1-00)

1
Out of stock

10

1

$3.91

In stock

11

BOLT, HEXAGON

97013-08055-00

1

$3.25

In stock

12

WASHER, PLATE 1562722600

90201-08083-00

1
Out of stock

13

NUT, U

95617-08100-00

1

$6.78

In stock

14

HOLDER, HANDLE UPPER

401-23441-00-98

1
Out of stock

15

BOLT

97013-08035-00

1

$4.80

In stock

16

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

17

SEAL, DUST

164-23462-00-00

—

$6.42

In stock

18

BRACKET, LOWER

(483-23345-00-33)

1
Out of stock

19

BOLT(8CP)

97017-06014-00

—

$5.12

In stock

20

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

21

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock
