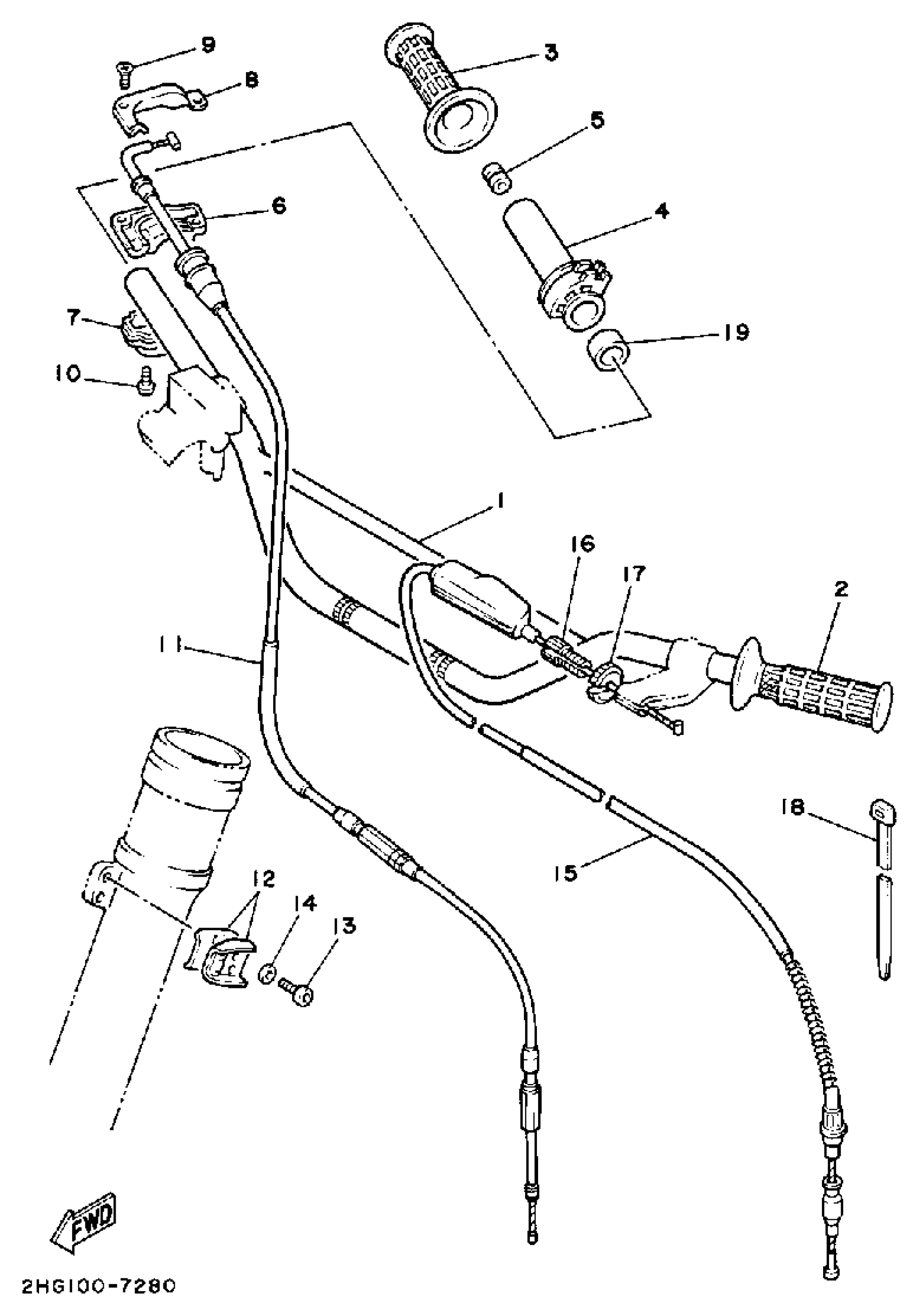

Yamaha YZ125T (YZ125T) 1987 HANDLEBAR-CABLE Diagram

#

Description
Price

1

HANDLEBAR

23X-26111-10-00

Unavailable

2

GRIP (L.H)

1LX-26241-01-00

$33.99

3

GRIP (R.H)

1LX-26242-01-00

$34.99

4

TUBE, THROTTLE GUIDE

23X-26243-01-00

$15.49

5

PLUG(2GU)

90338-12192-00

$8.49

6

CAP, GRIP UPPER

23X-26281-01-00

$29.99

7

CAP, GRIP UNDER

431-26282-03-00

$38.99

8

CAP, WIRE

5X2-2628H-01-00

$27.99

9

SCREW, FLAT

98707-04012-00

$2.18

10

SCREW, PAN HEAD

90157-05M19-00

Unavailable

11

CABLE, THROTTLE 1

2HG-26311-00-00

Unavailable

12

CLAMP(26A)

90465-16258-00

$11.49

13

BOLT, SOCKET

91314-06016-00

$8.49

14

WASHER, PLAIN (646)

92990-06600-00

$2.80

15

CABLE, CLUTCH

1LX-26335-00-00

Unavailable

16

BOLT (23X)

90123-08090-00

Unavailable

17

NUT

90179-08401-00

Unavailable

18

CLAMP(MF1)

90464-15152-00

Unavailable

19

SPACER(1LX)

90560-22281-00

Unavailable
